High-precision ball runner block BSHP Parts

Bosch Rexroth

R16214132Y

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C1-H-1

Bosch Rexroth

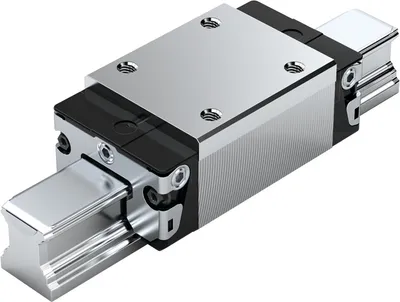

R162141322

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C1-H-1

Bosch Rexroth

R162141320

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C1-H-1

Bosch Rexroth

R162149422

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C0-N-1

Bosch Rexroth

R162149420

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C0-N-1

Bosch Rexroth

R162149322

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C0-H-1

Bosch Rexroth

R162149320

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C0-H-1

Bosch Rexroth

R16234382Z

BALL RUNNER BLOCK CARBON STEEL KWD-045-SLS-C3-X-1

Bosch Rexroth

R16234382Y

BALL RUNNER BLOCK CARBON STEEL KWD-045-SLS-C3-X-1

Bosch Rexroth

R162343822

BALL RUNNER BLOCK CARBON STEEL KWD-045-SLS-C3-X-1

Bosch Rexroth

R162343820

BALL RUNNER BLOCK CARBON STEEL KWD-045-SLS-C3-X-1

Bosch Rexroth

R16234282Z

BALL RUNNER BLOCK CARBON STEEL KWD-045-SLS-C2-X-1

Bosch Rexroth

R16234282Y

BALL RUNNER BLOCK CARBON STEEL KWD-045-SLS-C2-X-1

Bosch Rexroth

R162342822

BALL RUNNER BLOCK CARBON STEEL KWD-045-SLS-C2-X-1

Bosch Rexroth

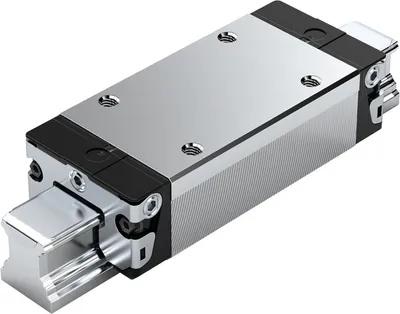

R162342820

BALL RUNNER BLOCK CARBON STEEL KWD-045-SLS-C2-X-1

Bosch Rexroth

R16234222Z

BALL RUNNER BLOCK CARBON STEEL KWD-045-SLS-C2-P-1

Bosch Rexroth

R16234222Y

BALL RUNNER BLOCK CARBON STEEL KWD-045-SLS-C2-P-1

Bosch Rexroth

R162342222

BALL RUNNER BLOCK CARBON STEEL KWD-045-SLS-C2-P-1

Bosch Rexroth

R162342220

BALL RUNNER BLOCK CARBON STEEL KWD-045-SLS-C2-P-1

Bosch Rexroth

R162342420

BALL RUNNER BLOCK CARBON STEEL KWD-045-SLS-C2-N-1

Bosch Rexroth

R16234232Z

BALL RUNNER BLOCK CARBON STEEL KWD-045-SLS-C2-H-1

Bosch Rexroth

R16234232Y

BALL RUNNER BLOCK CARBON STEEL KWD-045-SLS-C2-H-1

Bosch Rexroth

R162342322

BALL RUNNER BLOCK CARBON STEEL KWD-045-SLS-C2-H-1

Bosch Rexroth

R162342320

BALL RUNNER BLOCK CARBON STEEL KWD-045-SLS-C2-H-1

Compare High-precision ball runner block BSHP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Preload class	Accuracy class	Dynamic load capacity C50 [N]	Dynamic load capacity C100 [N]	Static load capacity C0 [N]
R16214132Y	C1 - Low preload	H - Highly accurate	104000.0	82400.0	123000.0
R162141322	C1 - Low preload	H - Highly accurate	104000.0	82400.0	123000.0
R162141320	C1 - Low preload	H - Highly accurate	109000.0	86400.0	132000.0
R162149422	C0 - Without preload (clearance)	N - Normal	104000.0	82400.0	123000.0
R162149420	C0 - Without preload (clearance)	N - Normal	109000.0	86400.0	132000.0
R162149322	C0 - Without preload (clearance)	H - Highly accurate	104000.0	82400.0	123000.0
R162149320	C0 - Without preload (clearance)	H - Highly accurate	109000.0	86400.0	132000.0
R16234382Z	C3 - High preload	XP - Extra precise	140000.0	111000.0	190000.0
R16234382Y	C3 - High preload	XP - Extra precise	134000.0	106000.0	177000.0
R162343822	C3 - High preload	XP - Extra precise	134000.0	106000.0	177000.0
R162343820	C3 - High preload	XP - Extra precise	140000.0	111000.0	190000.0
R16234282Z	C2 - Medium preload	XP - Extra precise	140000.0	111000.0	190000.0
R16234282Y	C2 - Medium preload	XP - Extra precise	134000.0	106000.0	177000.0
R162342822	C2 - Medium preload	XP - Extra precise	134000.0	106000.0	177000.0
R162342820	C2 - Medium preload	XP - Extra precise	140000.0	111000.0	190000.0
R16234222Z	C2 - Medium preload	P - Precise	140000.0	111000.0	190000.0
R16234222Y	C2 - Medium preload	P - Precise	134000.0	106000.0	177000.0
R162342222	C2 - Medium preload	P - Precise	134000.0	106000.0	177000.0
R162342220	C2 - Medium preload	P - Precise	140000.0	111000.0	190000.0
R162342420	C2 - Medium preload	N - Normal	140000.0	111000.0	190000.0
R16234232Z	C2 - Medium preload	H - Highly accurate	140000.0	111000.0	190000.0
R16234232Y	C2 - Medium preload	H - Highly accurate	134000.0	106000.0	177000.0
R162342322	C2 - Medium preload	H - Highly accurate	134000.0	106000.0	177000.0
R162342320	C2 - Medium preload	H - Highly accurate	140000.0	111000.0	190000.0

Common to all listed parts

Nominal size [mm]	45
Model	High-precision ball runner block
Material (profiled rail systems)	Carbon steel
Self-aligning for compensation of misalignments	Without self-alignment
Width of runner block [mm]	86.0
Lubrication	Pre-lubricated, preserved
Maximum acceleration rate amax [m/s²]	500.0
Maximum permissible linear speed vmax [m/s]	5.0
