High-precision ball runner block BSHP Parts

Bosch Rexroth

R162142822

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C2-X-1

Bosch Rexroth

R162142820

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C2-X-1

Bosch Rexroth

R16214222Z

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C2-P-1

Bosch Rexroth

R16214222Y

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C2-P-1

Bosch Rexroth

R162142222

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C2-P-1

Bosch Rexroth

R162142220

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C2-P-1

Bosch Rexroth

R162142420

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C2-N-1

Bosch Rexroth

R16214232Z

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C2-H-1

Bosch Rexroth

R16214232Y

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C2-H-1

Bosch Rexroth

R162142322

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C2-H-1

Bosch Rexroth

R162142320

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C2-H-1

Bosch Rexroth

R16214182Z

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C1-X-1

Bosch Rexroth

R16214182Y

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C1-X-1

Bosch Rexroth

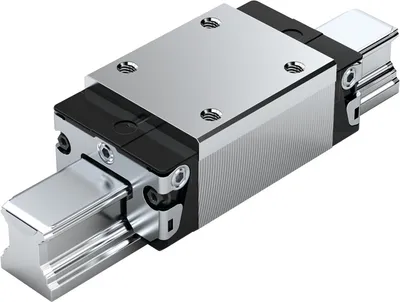

R162141822

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C1-X-1

Bosch Rexroth

R162141820

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C1-X-1

Bosch Rexroth

R16214122Z

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C1-P-1

Bosch Rexroth

R16214122Y

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C1-P-1

Bosch Rexroth

R162141222

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C1-P-1

Bosch Rexroth

R162141220

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C1-P-1

Bosch Rexroth

R16214142Z

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C1-N-1

Bosch Rexroth

R16214142Y

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C1-N-1

Bosch Rexroth

R162141422

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C1-N-1

Bosch Rexroth

R162141420

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C1-N-1

Bosch Rexroth

R16214132Z

BALL RUNNER BLOCK CARBON STEEL KWD-045-SNH-C1-H-1

Compare High-precision ball runner block BSHP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Preload class	Accuracy class	Seal	Ball chain	Weight [kg]
R162142822	C2 - Medium preload	XP - Extra precise	SS - Standard seal	With ball chain	3
R162142820	C2 - Medium preload	XP - Extra precise	SS - Standard seal	Without ball chain (standard)	3
R16214222Z	C2 - Medium preload	P - Precise	DS - Double-lip seal	Without ball chain (standard)	3
R16214222Y	C2 - Medium preload	P - Precise	DS - Double-lip seal	With ball chain	3
R162142222	C2 - Medium preload	P - Precise	SS - Standard seal	With ball chain	3
R162142220	C2 - Medium preload	P - Precise	SS - Standard seal	Without ball chain (standard)	3
R162142420	C2 - Medium preload	N - Normal	SS - Standard seal	Without ball chain (standard)	3.2
R16214232Z	C2 - Medium preload	H - Highly accurate	DS - Double-lip seal	Without ball chain (standard)	3
R16214232Y	C2 - Medium preload	H - Highly accurate	DS - Double-lip seal	With ball chain	3
R162142322	C2 - Medium preload	H - Highly accurate	SS - Standard seal	With ball chain	3
R162142320	C2 - Medium preload	H - Highly accurate	SS - Standard seal	Without ball chain (standard)	3
R16214182Z	C1 - Low preload	XP - Extra precise	DS - Double-lip seal	Without ball chain (standard)	3
R16214182Y	C1 - Low preload	XP - Extra precise	DS - Double-lip seal	With ball chain	3
R162141822	C1 - Low preload	XP - Extra precise	SS - Standard seal	With ball chain	3
R162141820	C1 - Low preload	XP - Extra precise	SS - Standard seal	Without ball chain (standard)	3
R16214122Z	C1 - Low preload	P - Precise	DS - Double-lip seal	Without ball chain (standard)	3
R16214122Y	C1 - Low preload	P - Precise	DS - Double-lip seal	With ball chain	3
R162141222	C1 - Low preload	P - Precise	SS - Standard seal	With ball chain	3
R162141220	C1 - Low preload	P - Precise	SS - Standard seal	Without ball chain (standard)	3.19
R16214142Z	C1 - Low preload	N - Normal	DS - Double-lip seal	Without ball chain (standard)	3
R16214142Y	C1 - Low preload	N - Normal	DS - Double-lip seal	With ball chain	3
R162141422	C1 - Low preload	N - Normal	SS - Standard seal	With ball chain	3
R162141420	C1 - Low preload	N - Normal	SS - Standard seal	Without ball chain (standard)	3.2
R16214132Z	C1 - Low preload	H - Highly accurate	DS - Double-lip seal	Without ball chain (standard)	3

Common to all listed parts

Nominal size [mm]	45
Format	SNH - slimline, normal, high
Model	High-precision ball runner block
Material (profiled rail systems)	Carbon steel
Self-aligning for compensation of misalignments	Without self-alignment
Width of runner block [mm]	86.0
Length of runner block [mm]	137.6
Height of runner block [mm]	60.3
