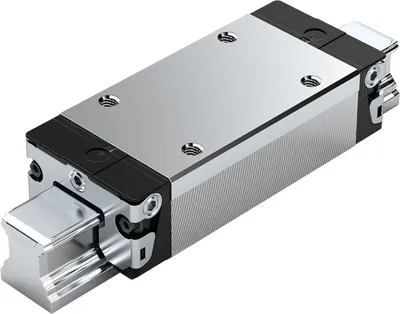

High-precision ball runner block BSHP Parts
Compare High-precision ball runner block BSHP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Length of runner block [mm] | Weight [kg] | Dimension E2 (profiled rail systems) [mm] | Dimension K1 (profiled rail systems) [mm] | Dimension K2 (profiled rail systems) [mm] |
|---|---|---|---|---|---|
| R200142390 | 137.5 | 2.85 | 80 | 17.3 | 19.3 |
| R200242290 | 174.1 | 4.1 | 80 | 35.5 | 37.5 |
| R200242390 | 174.1 | 4.1 | 80 | 35.5 | 37.5 |
| R201132290 | 110.5 | 1.28 | 50 | 20.5 | 22 |
| R201132390 | 110.5 | 1.29 | 50 | 20.5 | 22 |
| R201232290 | 139.0 | 1.7 | 72 | 23.75 | 25.25 |
| R201232390 | 139.0 | 1.69 | 72 | 23.75 | 25.25 |
| R200132290 | 110.5 | 1.5 | 62 | 14.5 | 16 |
| R200132390 | 110.5 | 1.5 | 62 | 14.5 | 16 |
| R200232290 | 139.0 | 2.25 | 62 | 28.75 | 30.25 |
| R200232390 | 139.0 | 2.25 | 62 | 28.75 | 30.25 |
| R201172290 | 97.7 | 0.85 | 40 | 20 | 21.7 |
| R201172390 | 97.7 | 0.85 | 40 | 20 | 21.7 |
| R201272290 | 119.7 | 1.1 | 60 | 21 | 22.7 |
| R201272390 | 119.7 | 1.1 | 60 | 21 | 22.7 |
| R200172290 | 97.7 | 1.05 | 52 | 14 | 15.7 |
| R200172390 | 97.7 | 1.09 | 52 | 14 | 15.7 |
| R200272290 | 119.7 | 1.5 | 52 | 25 | 26.7 |
| R200272390 | 119.7 | 1.01 | 52 | 25 | 26.7 |
| R201122290 | 86.2 | 0.45 | 35 | 17.45 | 18.6 |
| R201122390 | 86.2 | 0.45 | 35 | 17.45 | 18.6 |
| R201222290 | 107.9 | 0.65 | 50 | 20.8 | 21.95 |
| R201222390 | 107.9 | 0.65 | 50 | 20.8 | 21.95 |
| R200122290 | 86.2 | 0.6 | 45 | 12.45 | 13.6 |
Common to all listed parts
| Version | Ball rail system |
| Model | High-speed ball runner block |
| Material (profiled rail systems) | Carbon steel |
| Preload class | C2 - Medium preload |
| Seal | SS - Standard seal |
| Ball chain | Without ball chain (standard) |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Lubrication | Pre-lubricated, preserved |
