High-precision ball runner block BSHP Parts
Compare High-precision ball runner block BSHP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Length of runner block [mm] | Weight [kg] | Dimension B (profiled rail systems) [mm] | Dimension K1 (profiled rail systems) [mm] | Dimension K2 (profiled rail systems) [mm] |
|---|---|---|---|---|---|

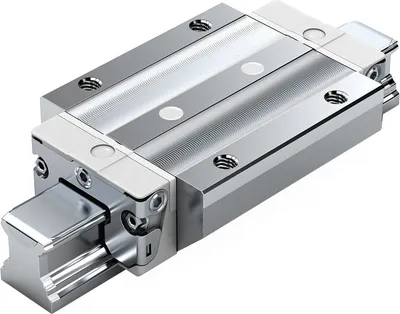

| R200289314 | 91.0 | 0.55 | 91 | 19.8 | 19.8 |
| R200081314 | 57.3 | 0.3 | 57.3 | 22.95 | 22.95 |
| R200089314 | 57.3 | 0.3 | 57.3 | 22.95 | 22.95 |
| R201112314 | 58.2 | 0.15 | 58.2 | 10 | 11.6 |
| R201111314 | 58.2 | 0.15 | 58.2 | 10 | 11.6 |

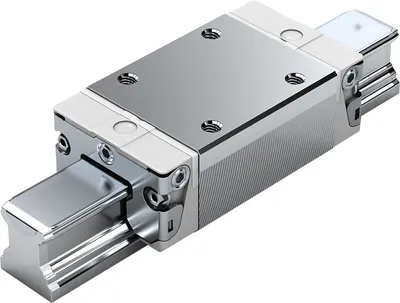

| R201119314 | 58.2 | 0.18 | 58.2 | 10 | 11.6 |
| R201212314 | 72.6 | 0.2 | 72.6 | 17.2 | 18.8 |

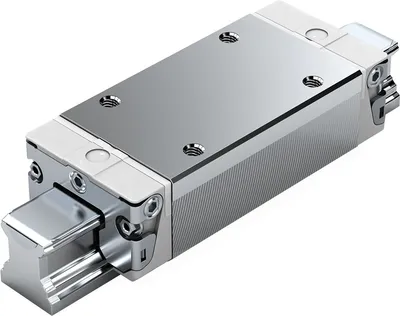

| R201211314 | 72.6 | 0.2 | 72.6 | 17.2 | 18.8 |
| R201219314 | 72.6 | 0.23 | 72.6 | 17.2 | 18.8 |
| R201011314 | 44.7 | 0.1 | 44.7 | 16.25 | 17.85 |

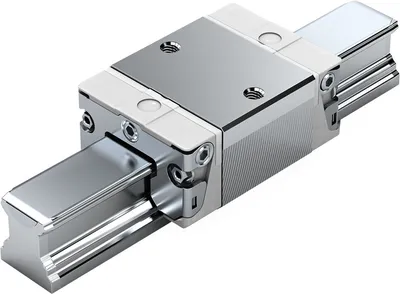

| R201019314 | 44.7 | 0.1 | 44.7 | 16.25 | 17.85 |

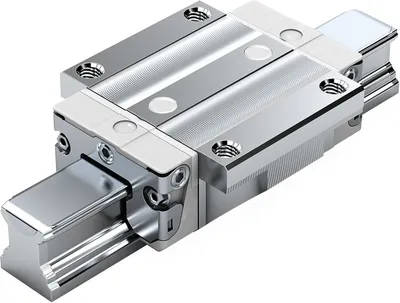

| R200112314 | 58.2 | 0.2 | 58.2 | 8 | 9.6 |
| R200111314 | 58.2 | 0.2 | 58.2 | 8 | 9.6 |
| R200119314 | 58.2 | 0.2 | 58.2 | 8 | 9.6 |
| R200212314 | 72.6 | 0.3 | 72.6 | 15.2 | 16.8 |
| R200211314 | 72.6 | 0.28 | 72.6 | 15.2 | 16.8 |
| R200219314 | 72.6 | 0.3 | 72.6 | 15.2 | 16.8 |
| R200011314 | 44.7 | 0.17 | 44.7 | 16.25 | 17.85 |

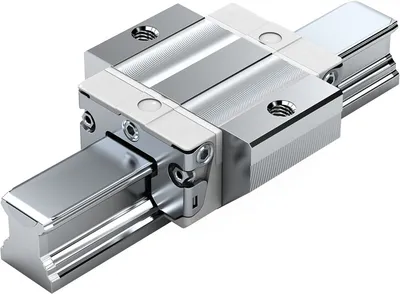

| R200019314 | 44.7 | 0.15 | 44.7 | 16.25 | 17.85 |
| R201142290 | 137.6 | 2.25 | 137.6 | 27.3 | 29.3 |
| R201142390 | 137.6 | 2.25 | 137.6 | 27.3 | 29.3 |
| R201242290 | 174.1 | 3 | 174.1 | 35.50 | 37.50 |

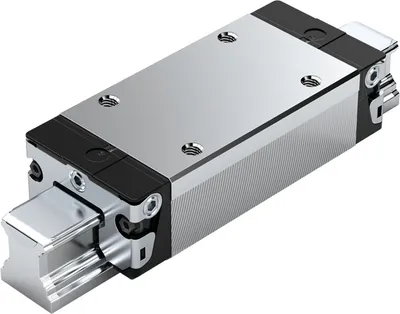

| R201242390 | 174.1 | 3 | 174.1 | 35.50 | 37.50 |
| R200142290 | 137.5 | 2.85 | 137.5 | 17.3 | 19.3 |
Common to all listed parts
| Version | Ball rail system |
| Seal | SS - Standard seal |
| Ball chain | Without ball chain (standard) |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Maximum acceleration rate amax [m/s²] | 500.0 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
