High-precision ball runner block BSHP Parts

Bosch Rexroth

R166211420

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-015-SKS-C1-N-1

Bosch Rexroth

R166211321

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-015-SKS-C1-H-1

Bosch Rexroth

R166211320

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-015-SKS-C1-H-1

Bosch Rexroth

R166219421

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-015-SKS-C0-N-1

Bosch Rexroth

R166219420

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-015-SKS-C0-N-1

Bosch Rexroth

R166219321

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-015-SKS-C0-H-1

Bosch Rexroth

R166219320

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-015-SKS-C0-H-1

Bosch Rexroth

R166111421

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-015-FKS-C1-N-1

Bosch Rexroth

R166111420

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-015-FKS-C1-N-1

Bosch Rexroth

R166111321

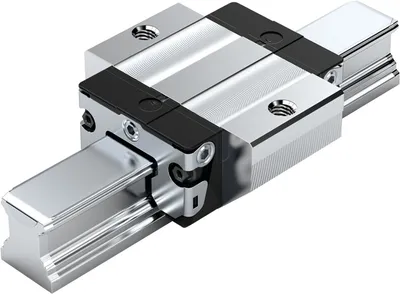

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-015-FKS-C1-H-1

Bosch Rexroth

R166111320

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-015-FKS-C1-H-1

Bosch Rexroth

R166119421

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-015-FKS-C0-N-1

Bosch Rexroth

R166119420

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-015-FKS-C0-N-1

Bosch Rexroth

R166119321

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-015-FKS-C0-H-1

Bosch Rexroth

R166119320

BALL RUNNER BLOCK SUPER CARBON STEEL KWD-015-FKS-C0-H-1

Bosch Rexroth

R20113220X

BALL RUNNER BLOCK RESIST NRII KWD-035-SNS-C2-P-0

Bosch Rexroth

R20113220W

BALL RUNNER BLOCK RESIST NRII KWD-035-SNS-C2-P-0

Bosch Rexroth

R201132206

BALL RUNNER BLOCK RESIST NRII KWD-035-SNS-C2-P-0

Bosch Rexroth

R201132204

BALL RUNNER BLOCK RESIST NRII KWD-035-SNS-C2-P-0

Bosch Rexroth

R20113230X

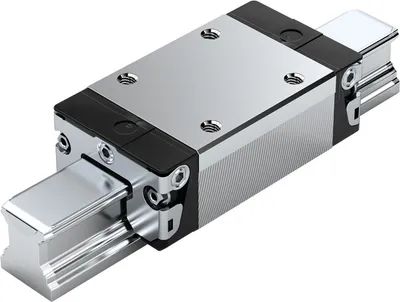

BALL RUNNER BLOCK RESIST NRII KWD-035-SNS-C2-H-0

Bosch Rexroth

R20113230W

BALL RUNNER BLOCK RESIST NRII KWD-035-SNS-C2-H-0

Bosch Rexroth

R201132306

BALL RUNNER BLOCK RESIST NRII KWD-035-SNS-C2-H-0

Bosch Rexroth

R201132304

BALL RUNNER BLOCK RESIST NRII KWD-035-SNS-C2-H-0

Bosch Rexroth

R20113120X

BALL RUNNER BLOCK RESIST NRII KWD-035-SNS-C1-P-0

Compare High-precision ball runner block BSHP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Format	Preload class	Accuracy class	Seal	Weight [kg]
R166211420	SKS - slimline, short, standard height	C1 - Low preload	N - Normal	SS - Standard seal	0.14
R166211321	SKS - slimline, short, standard height	C1 - Low preload	H - Highly accurate	LS - Low-friction seal	0.1
R166211320	SKS - slimline, short, standard height	C1 - Low preload	H - Highly accurate	SS - Standard seal	0.1
R166219421	SKS - slimline, short, standard height	C0 - Without preload (clearance)	N - Normal	LS - Low-friction seal	0.1
R166219420	SKS - slimline, short, standard height	C0 - Without preload (clearance)	N - Normal	SS - Standard seal	0.1
R166219321	SKS - slimline, short, standard height	C0 - Without preload (clearance)	H - Highly accurate	LS - Low-friction seal	0.1
R166219320	SKS - slimline, short, standard height	C0 - Without preload (clearance)	H - Highly accurate	SS - Standard seal	0.1
R166111421	FKS - flange, short, standard height	C1 - Low preload	N - Normal	LS - Low-friction seal	0.15
R166111420	FKS - flange, short, standard height	C1 - Low preload	N - Normal	SS - Standard seal	0.15
R166111321	FKS - flange, short, standard height	C1 - Low preload	H - Highly accurate	LS - Low-friction seal	0.15
R166111320	FKS - flange, short, standard height	C1 - Low preload	H - Highly accurate	SS - Standard seal	0.15
R166119421	FKS - flange, short, standard height	C0 - Without preload (clearance)	N - Normal	LS - Low-friction seal	0.15
R166119420	FKS - flange, short, standard height	C0 - Without preload (clearance)	N - Normal	SS - Standard seal	0.15
R166119321	FKS - flange, short, standard height	C0 - Without preload (clearance)	H - Highly accurate	LS - Low-friction seal	0.15
R166119320	FKS - flange, short, standard height	C0 - Without preload (clearance)	H - Highly accurate	SS - Standard seal	0.15
R20113220X	SNS - slimline, normal, standard height	C2 - Medium preload	P - Precise	DS - Double-lip seal	1.25
R20113220W	SNS - slimline, normal, standard height	C2 - Medium preload	P - Precise	DS - Double-lip seal	1.25
R201132206	SNS - slimline, normal, standard height	C2 - Medium preload	P - Precise	SS - Standard seal	1.25
R201132204	SNS - slimline, normal, standard height	C2 - Medium preload	P - Precise	SS - Standard seal	1.25
R20113230X	SNS - slimline, normal, standard height	C2 - Medium preload	H - Highly accurate	DS - Double-lip seal	1.25
R20113230W	SNS - slimline, normal, standard height	C2 - Medium preload	H - Highly accurate	DS - Double-lip seal	1.25
R201132306	SNS - slimline, normal, standard height	C2 - Medium preload	H - Highly accurate	SS - Standard seal	1.25
R201132304	SNS - slimline, normal, standard height	C2 - Medium preload	H - Highly accurate	SS - Standard seal	1.25
R20113120X	SNS - slimline, normal, standard height	C1 - Low preload	P - Precise	DS - Double-lip seal	1.25

Common to all listed parts

Version	Ball rail system
Maximum acceleration rate amax [m/s²]	500.0
Maximum permissible linear speed vmax [m/s]	5.0
Friction coefficient μ	0.002 ... 0.003
Note: friction coefficient μ	Without friction of seal
Dimension B tolerance (profiled rail systems) [mm]	+0.5
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
