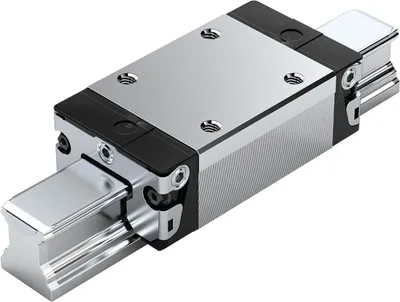

High-precision ball runner block BSHP Parts
Compare High-precision ball runner block BSHP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Dynamic load capacity C50 [N] | Dynamic load capacity C100 [N] | Static load capacity C0 [N] | Dynamic torsional moment load capacity Mt50 [Nm] | Dynamic torsional moment load capacity Mt100 [Nm] |
|---|---|---|---|---|---|
| R201189330 | 29500.0 | 23400.0 | 29800.0 | 380.0 | 300.0 |
| R201289333 | 35500.0 | 28200.0 | 38800.0 | 450.0 | 360.0 |
| R201289332 | 35500.0 | 28200.0 | 38800.0 | 450.0 | 360.0 |
| R201289331 | 37300.0 | 29600.0 | 41800.0 | 480.0 | 380.0 |
| R201289330 | 37300.0 | 29600.0 | 41800.0 | 480.0 | 380.0 |
| R201089333 | 18500.0 | 14700.0 | 15300.0 | 240.0 | 190.0 |
| R201089332 | 18500.0 | 14700.0 | 15300.0 | 240.0 | 190.0 |
| R201089331 | 19400.0 | 15400.0 | 16500.0 | 250.0 | 200.0 |
| R201089330 | 19400.0 | 15400.0 | 16500.0 | 250.0 | 200.0 |
| R200189333 | 28000.0 | 22200.0 | 27700.0 | 350.0 | 280.0 |
| R200189332 | 28000.0 | 22200.0 | 27700.0 | 350.0 | 280.0 |
| R200189331 | 29500.0 | 23400.0 | 29800.0 | 380.0 | 300.0 |
| R200189330 | 29500.0 | 23400.0 | 29800.0 | 380.0 | 300.0 |
| R200289333 | 35500.0 | 28200.0 | 38800.0 | 450.0 | 360.0 |
| R200289332 | 35500.0 | 28200.0 | 38800.0 | 450.0 | 360.0 |
| R200289331 | 37300.0 | 29600.0 | 41800.0 | 480.0 | 380.0 |
| R200289330 | 37300.0 | 29600.0 | 41800.0 | 480.0 | 380.0 |
| R200089333 | 18500.0 | 14700.0 | 15300.0 | 240.0 | 190.0 |
| R200089332 | 18500.0 | 14700.0 | 15300.0 | 240.0 | 190.0 |
| R200089331 | 19400.0 | 15400.0 | 16500.0 | 250.0 | 200.0 |
| R200089330 | 19400.0 | 15400.0 | 16500.0 | 250.0 | 200.0 |
| R201119333 | 11200.0 | 8850.0 | 10800.0 | 110.0 | 85.0 |
| R201119332 | 11200.0 | 8850.0 | 10800.0 | 110.0 | 85.0 |
| R201119331 | 12400.0 | 9860.0 | 12700.0 | 120.0 | 95.0 |
Common to all listed parts
| Version | Ball rail system |
| Model | High-precision ball runner block |
| Material (profiled rail systems) | Corrosion-resistant steel (runner block body Resist NR) |
| Preload class | C0 - Without preload (clearance) |
| Accuracy class | H - Highly accurate |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Lubrication | Pre-lubricated, preserved |
| Maximum acceleration rate amax [m/s²] | 500.0 |
