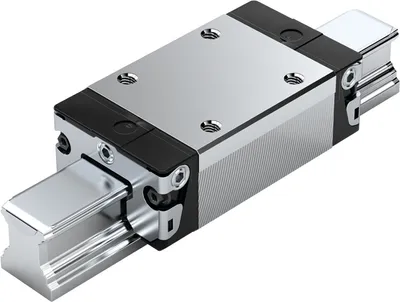

High-precision ball runner block BSHP Parts
Compare High-precision ball runner block BSHP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Dynamic load capacity C50 [N] | Dynamic load capacity C100 [N] | Static load capacity C0 [N] | Static torsional moment load capacity Mt0 [Nm] | Dynamic longitudinal moment load capacity ML50 [Nm] |
|---|---|---|---|---|---|
| R201129330 | 36000.0 | 28600.0 | 35900.0 | 510 | 370.0 |
| R201229333 | 43800.0 | 34800.0 | 47300.0 | 670 | 630.0 |
| R201229332 | 43800.0 | 34800.0 | 47300.0 | 670 | 630.0 |
| R201229331 | 47000.0 | 37300.0 | 52500.0 | 750 | 670.0 |
| R201229330 | 47000.0 | 37300.0 | 52500.0 | 750 | 670.0 |
| R201029333 | 23300.0 | 18500.0 | 19100.0 | 270 | 150.0 |
| R201029332 | 23300.0 | 18500.0 | 19100.0 | 270 | 150.0 |
| R201029331 | 24900.0 | 19800.0 | 21200.0 | 300 | 160.0 |
| R201029330 | 24900.0 | 19800.0 | 21200.0 | 300 | 160.0 |
| R200129333 | 33600.0 | 26700.0 | 32300.0 | 460 | 340.0 |
| R200129332 | 33600.0 | 26700.0 | 32300.0 | 460 | 340.0 |
| R200129331 | 36000.0 | 28600.0 | 35900.0 | 510 | 370.0 |
| R200129330 | 36000.0 | 28600.0 | 35900.0 | 510 | 370.0 |
| R200229333 | 43800.0 | 34800.0 | 47300.0 | 670 | 630.0 |
| R200229332 | 43800.0 | 34800.0 | 47300.0 | 670 | 630.0 |
| R200229331 | 47000.0 | 37300.0 | 52500.0 | 750 | 670.0 |
| R200229330 | 47000.0 | 37300.0 | 52500.0 | 750 | 670.0 |
| R200029333 | 23300.0 | 18500.0 | 19100.0 | 270 | 150.0 |
| R200029332 | 23300.0 | 18500.0 | 19100.0 | 270 | 150.0 |
| R200029331 | 24900.0 | 19800.0 | 21200.0 | 300 | 160.0 |
| R200029330 | 24900.0 | 19800.0 | 21200.0 | 300 | 160.0 |
| R201189333 | 28000.0 | 22200.0 | 27700.0 | 350 | 240.0 |
| R201189332 | 28000.0 | 22200.0 | 27700.0 | 350 | 240.0 |
| R201189331 | 29500.0 | 23400.0 | 29800.0 | 380 | 250.0 |
Common to all listed parts
| Version | Ball rail system |
| Model | High-precision ball runner block |
| Material (profiled rail systems) | Corrosion-resistant steel (runner block body Resist NR) |
| Preload class | C0 - Without preload (clearance) |
| Accuracy class | H - Highly accurate |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Lubrication | Pre-lubricated, preserved |
| Maximum acceleration rate amax [m/s²] | 500.0 |
