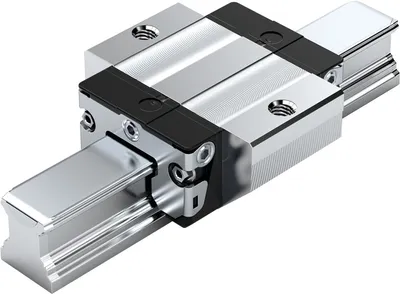

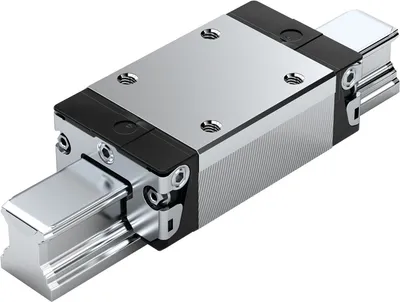

High-precision ball runner block BSHP Parts
Compare High-precision ball runner block BSHP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Preload class | Accuracy class | Seal | Weight [kg] | Static load capacity C0 [N] |
|---|---|---|---|---|---|
| R20003130X | C1 - Low preload | H - Highly accurate | DS - Double-lip seal | 1.2 | 22400.0 |
| R20003130W | C1 - Low preload | H - Highly accurate | DS - Double-lip seal | 1.2 | 22400.0 |
| R200031307 | C1 - Low preload | H - Highly accurate | LS - Low-friction seal | 1.2 | 22400.0 |
| R200031306 | C1 - Low preload | H - Highly accurate | SS - Standard seal | 1.2 | 22400.0 |
| R200031305 | C1 - Low preload | H - Highly accurate | LS - Low-friction seal | 1.2 | 22400.0 |
| R200031304 | C1 - Low preload | H - Highly accurate | SS - Standard seal | 1.35 | 22400.0 |
| R200039407 | C0 - Without preload (clearance) | N - Normal | LS - Low-friction seal | 1.2 | 22400.0 |
| R200039406 | C0 - Without preload (clearance) | N - Normal | SS - Standard seal | 1.2 | 22400.0 |
| R200039405 | C0 - Without preload (clearance) | N - Normal | LS - Low-friction seal | 1.2 | 22400.0 |
| R200039404 | C0 - Without preload (clearance) | N - Normal | SS - Standard seal | 1.2 | 22400.0 |
| R200039307 | C0 - Without preload (clearance) | H - Highly accurate | LS - Low-friction seal | 1.2 | 22400.0 |
| R200039306 | C0 - Without preload (clearance) | H - Highly accurate | SS - Standard seal | 1.2 | 22400.0 |
| R200039305 | C0 - Without preload (clearance) | H - Highly accurate | LS - Low-friction seal | 1.2 | 22400.0 |
| R200039304 | C0 - Without preload (clearance) | H - Highly accurate | SS - Standard seal | 1.2 | 22400.0 |
| R20117220X | C2 - Medium preload | P - Precise | DS - Double-lip seal | 0.85 | 28700.0 |
| R20117220W | C2 - Medium preload | P - Precise | DS - Double-lip seal | 0.85 | 25800.0 |
| R201172206 | C2 - Medium preload | P - Precise | SS - Standard seal | 0.85 | 25800.0 |
| R201172204 | C2 - Medium preload | P - Precise | SS - Standard seal | 0.85 | 28700.0 |
| R20117230X | C2 - Medium preload | H - Highly accurate | DS - Double-lip seal | 0.85 | 28700.0 |
| R20117230W | C2 - Medium preload | H - Highly accurate | DS - Double-lip seal | 0.85 | 25800.0 |
| R201172306 | C2 - Medium preload | H - Highly accurate | SS - Standard seal | 0.85 | 25800.0 |
| R201172304 | C2 - Medium preload | H - Highly accurate | SS - Standard seal | 0.85 | 28700.0 |
| R20117120X | C1 - Low preload | P - Precise | DS - Double-lip seal | 0.85 | 28700.0 |
| R20117120W | C1 - Low preload | P - Precise | DS - Double-lip seal | 0.85 | 25800.0 |
Common to all listed parts
| Version | Ball rail system |
| Model | High-precision ball runner block |
| Material (profiled rail systems) | Corrosion-resistant steel (Resist NR II) |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Lubrication | Without lubrication (dry) |
| Maximum acceleration rate amax [m/s²] | 500.0 |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Friction coefficient μ | 0.002 ... 0.003 |
