RG2 Encoder Cables Parts
Compare RG2 Encoder Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cable Model | cable length [m] | Static bending radius | Ambient temperature (during operation) [°C] | Weight [kg] |
|---|---|---|---|---|---|
| R911400748 | Torsion | 5.0 | 5xD | -40-80 | 0 |
| R914502264 | Torsion | 1.5 | 5xD | -40-80 | 0.27 |
| R911381235 | Basic | 30.0 | 4xD | -20-80 | 0 |
| R911381234 | Basic | 25.0 | 4xD | -20-80 | 0 |

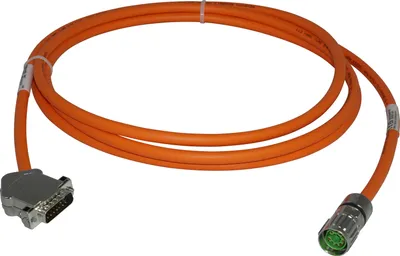

| R914506420 | Basic | 24.0 | 4xD | -20-80 | 0 |
| R914506419 | Basic | 23.0 | 4xD | -20-80 | 0 |
| R914506417 | Basic | 21.0 | 4xD | -20-80 | 0 |
| R911376816 | Basic | 20.0 | 4xD | -20-80 | 0 |
| R914506416 | Basic | 19.0 | 4xD | -20-80 | 0 |
| R914505497 | Basic | 18.0 | 4xD | -20-80 | 2.15 |
| R914506415 | Basic | 17.0 | 4xD | -20-80 | 0 |
| R914506399 | Basic | 16.0 | 4xD | -20-80 | 0 |
| R911376815 | Basic | 15.0 | 4xD | -20-80 | 0 |
| R914506398 | Basic | 14.0 | 4xD | -20-80 | 0 |
| R914506397 | Basic | 13.0 | 4xD | -20-80 | 0 |
| R914506396 | Basic | 12.0 | 4xD | -20-80 | 0 |
| R914503756 | Basic | 11.5 | 4xD | -20-80 | 0 |
| R914506445 | Basic | 11.0 | 4xD | -20-80 | 0 |
| R911376813 | Basic | 10.0 | 4xD | -20-80 | 1.1 |
| R914503757 | Basic | 9.5 | 4xD | -20-80 | 0 |
| R911396342 | Basic | 9.0 | 4xD | -20-80 | 0 |
| R911396341 | Basic | 8.0 | 4xD | -20-80 | 0.92 |
| R914500973 | Basic | 7.9 | 4xD | -20-80 | 0.94 |
| R911376812 | Basic | 7.5 | 4xD | -20-80 | 0 |
Common to all listed parts
| Cable Variant | Encoder Cable |
| Cable Type | ready-made |
| Compatible Motors | MS2x |
| Compatible Drives | KMS01.2; KMS02.1 |
| Encoder Type | analogue |
| Connection type of motor connector | M17 encoder connector |
| Motor-Drive-Connection | direct connection |
| Dynamic bending radius | 7.5xD |
