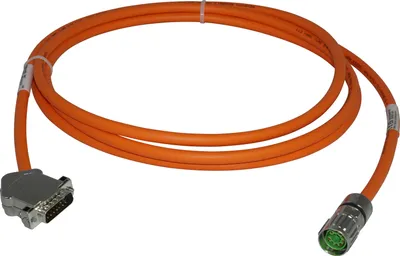

RG2 Encoder Cables Parts
























Compare RG2 Encoder Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Compatible Drives | Encoder Type | Cable Model | cable length [m] | Weight [kg] |
|---|---|---|---|---|---|
| R911396155 | HCT/HCQ | digital | Basic | 7.0 | 0 |
| R911396154 | HCT/HCQ | digital | Basic | 6.0 | 0 |
| R911396152 | HCT/HCQ | digital | Basic | 5.0 | 0 |
| R911396150 | HCT/HCQ | digital | Basic | 4.0 | 0 |
| R911396148 | HCT/HCQ | digital | Basic | 3.0 | 0 |
| R911396147 | HCT/HCQ | digital | Basic | 2.0 | 0 |
| R911396146 | HCT/HCQ | digital | Basic | 1.0 | 0 |
| R911388543 | IndraDrive; ctrlX DRIVE | digital | Basic | 30.0 | 0 |
| R911388542 | IndraDrive; ctrlX DRIVE | digital | Basic | 20.0 | 0 |
| R911388541 | IndraDrive; ctrlX DRIVE | digital | Basic | 15.0 | 0 |
| R911388540 | IndraDrive; ctrlX DRIVE | digital | Basic | 10.0 | 0.7 |
| R911388539 | IndraDrive; ctrlX DRIVE | digital | Basic | 7.5 | 0 |
| R911388538 | IndraDrive; ctrlX DRIVE | digital | Basic | 5.0 | 0.45 |
| R911388537 | IndraDrive; ctrlX DRIVE | digital | Basic | 4.0 | 0 |
| R911388536 | IndraDrive; ctrlX DRIVE | digital | Basic | 3.0 | 0 |
| R911388535 | IndraDrive; ctrlX DRIVE | digital | Basic | 2.0 | 0 |
| R911388525 | IndraDrive; ctrlX DRIVE | digital | Basic | 1.0 | 0 |
| R911389116 | IndraDrive; ctrlX DRIVE | analogue | Torsion | 5.0 | 0 |
| R911389115 | IndraDrive; ctrlX DRIVE | analogue | Torsion | 1.0 | 0 |
| R911380844 | IndraDrive; ctrlX DRIVE | analogue | Basic | 30.0 | 0 |
| R911380843 | IndraDrive; ctrlX DRIVE | analogue | Basic | 25.0 | 0 |
| R914506581 | IndraDrive; ctrlX DRIVE | analogue | Basic | 22.0 | 0 |
| R911380842 | IndraDrive; ctrlX DRIVE | analogue | Basic | 20.0 | 2.08 |
| R914506572 | IndraDrive; ctrlX DRIVE | analogue | Basic | 18.0 | 0 |
Common to all listed parts
| Cable Variant | Encoder Cable |
| Cable Type | ready-made |
| Compatible Motors | MS2x |
| Connection type of motor connector | M17 encoder connector |
| Motor-Drive-Connection | direct connection |
| Dynamic bending radius | 7.5xD |
| Bending cycles | 5 million |
| Ambient temperature (storage and transport) [°C] | -40-80 |
