RLB2 Motor Power Cables Parts
Compare RLB2 Motor Power Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | cable length [m] | Cross Section | Weight [kg] |
|---|---|---|---|
| R914512016 | 12.0 | 1.5 | 0 |
| R914515711 | 11.0 | 1.5 | 0 |
| R911393019 | 10.0 | 1.5 | 2.6 |
| R914502240 | 9.0 | 1.5 | 2.34 |
| R914502229 | 8.0 | 1.5 | 2.1 |
| R911393018 | 7.5 | 1.5 | 0 |
| R914506360 | 7.0 | 1.5 | 0 |
| R914502242 | 6.5 | 1.5 | 0 |
| R914502251 | 6.0 | 1.5 | 1.65 |
| R911392999 | 5.0 | 1.5 | 0 |
| R911393017 | 4.0 | 1.5 | 0 |
| R911393016 | 3.0 | 1.5 | 0 |
| R911393015 | 2.0 | 1.5 | 0 |
| R911393014 | 1.0 | 1.5 | 0 |
| R914515242 | 75.0 | 1.0 | 0 |
| R914516103 | 58.0 | 1.0 | 0 |
| R914516102 | 48.0 | 1.0 | 0 |
| R914514562 | 45.0 | 1.0 | 9.8 |
| R914514561 | 42.0 | 1.0 | 9.1 |
| R914514560 | 37.0 | 1.0 | 8.1 |
| R914509663 | 35.0 | 1.0 | 7.7 |
| R911396641 | 30.0 | 1.0 | 6.4 |

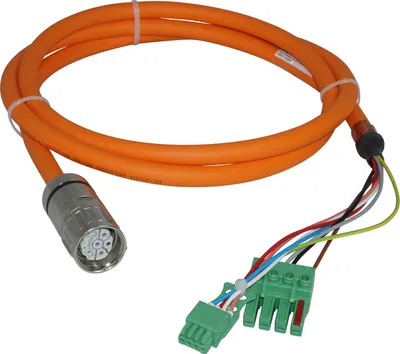

| R911403527 | 26.0 | 1.0 | 0 |
| R911396640 | 25.0 | 1.0 | 5.7 |
Common to all listed parts
| Cable Variant | Power Cable |
| Cable Type | ready-made |
| Compatible Motors | MS2x, MS2N with plug U |
| Compatible Drives | ctrlX DRIVE |
| Cable Model | Basic |
| Connection type of motor connector | M23 power connector |
| Motor-Drive-Connection | direct connection |
| Dynamic bending radius | 7.5xD |
