RLB2 Motor Power Cables Parts
Compare RLB2 Motor Power Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | cable length [m] | Cross Section | Weight [kg] |
|---|---|---|---|
| R911395048 | 30.0 | 1.5 | 0 |
| R914511343 | 25.0 | 1.5 | 0 |
| R911395047 | 20.0 | 1.5 | 0 |
| R911395046 | 15.0 | 1.5 | 0 |
| R911395045 | 10.0 | 1.5 | 2.52 |
| R914511620 | 8.0 | 1.5 | 2.07 |
| R911395044 | 7.5 | 1.5 | 0 |
| R911402590 | 7.0 | 1.5 | 2.1 |
| R914507693 | 6.0 | 1.5 | 1.6 |
| R911395043 | 5.0 | 1.5 | 1.3 |
| R911395042 | 4.0 | 1.5 | 1.1 |

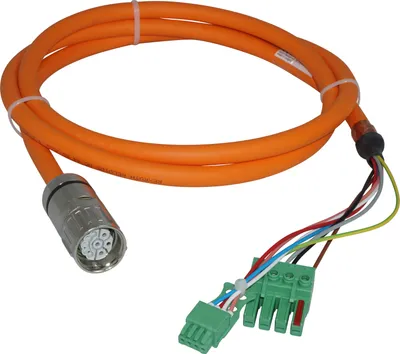

| R911395041 | 3.0 | 1.5 | 0.85 |
| R911395040 | 2.0 | 1.5 | 0 |
| R911395039 | 1.0 | 1.5 | 0 |
| R914511705 | 30.0 | 1.0 | 0 |
| R914512675 | 28.0 | 1.0 | 0 |
| R914506585 | 25.0 | 1.0 | 0 |
| R914504865 | 20.0 | 1.0 | 4.6 |
| R911404201 | 15.0 | 1.0 | 0 |
| R914511860 | 12.5 | 1.0 | 0 |
| R911404200 | 10.0 | 1.0 | 2.5 |
| R914506235 | 7.0 | 1.0 | 1.8 |
| R911404199 | 5.0 | 1.0 | 1.95 |
| R914506495 | 4.0 | 1.0 | 0 |
Common to all listed parts
| Cable Variant | Power Cable |
| Cable Type | ready-made |
| Compatible Motors | MS2x, MS2N with plug U |
| Compatible Drives | ctrlX DRIVE |
| Cable Model | Basic |
| Connection type of motor connector | M23 power connector |
| Motor-Drive-Connection | direct connection |
| Dynamic bending radius | 7.5xD |
