Proportional directional valves Parts
Compare Proportional directional valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Connection diagram | Max. flow [l/min] | Spool symbol | Nominal flow [l/min] | Weight [kg] |
|---|---|---|---|---|---|
| R901560858 | ISO 4401-07-07-0-05 | 460.0 | Symbol E | 220.0 | 10 |
| R901510260 | ISO 4401-07-07-0-05 | 460.0 | Symbol E | 220.0 | 10.5 |
| R901487327 | ISO 4401-07-07-0-05 | 460.0 | Symbol E | 220.0 | 9.2 |
| R901494329 | ISO 4401-07-07-0-05 | 460.0 | Symbol E | 220.0 | 10.5 |
| R901497235 | ISO 4401-07-07-0-05 | 460.0 | Symbol E | 220.0 | 10.5 |
| R901479145 | ISO 4401-07-07-0-05 | 460.0 | Symbol E | 220.0 | 10.5 |
| R901531369 | ISO 4401-07-07-0-05 | 460.0 | Symbol E | 150.0 | 10.5 |
| R901526075 | ISO 4401-07-07-0-05 | 460.0 | Symbol E | 150.0 | 10 |
| R901454648 | ISO 4401-07-07-0-05 | 460.0 | Symbol E | 150.0 | 10.5 |
| R901494957 | ISO 4401-07-07-0-05 | 460.0 | Symbol E | 150.0 | 10.5 |
| R901527732 | ISO 4401-07-07-0-05 | 460.0 | Symbol E1 | 220.0 | 9.65 |
| R901517568 | ISO 4401-07-07-0-05 | 460.0 | Symbol E1 | 150.0 | 10 |
| R901507908 | ISO 4401-05-05-0-05 | 170.0 | Symbol W6 | 50.0 | 7.5 |
| R901551492 | ISO 4401-05-05-0-05 | 170.0 | Symbol W6 | 50.0 | 7.28 |
| R901581762 | ISO 4401-05-05-0-05 | 170.0 | Symbol W6 | 100.0 | 9.95 |
| R901535320 | ISO 4401-05-05-0-05 | 170.0 | Symbol W6 | 100.0 | 7.5 |
| R901469187 | ISO 4401-05-05-0-05 | 170.0 | Symbol V | 100.0 | 7.5 |

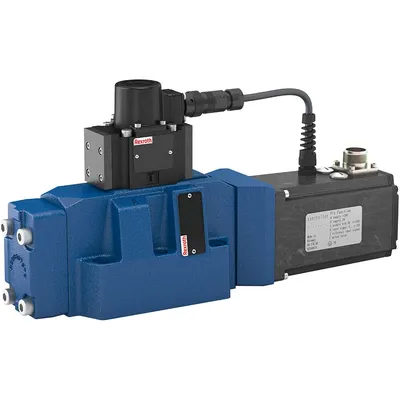

| R901495184 | ISO 4401-05-05-0-05 | 170.0 | Symbol V | 50.0 | 7.5 |
| R901491743 | ISO 4401-05-05-0-05 | 170.0 | Symbol V | 50.0 | 7.5 |
| R901474648 | ISO 4401-05-05-0-05 | 170.0 | Symbol V | 50.0 | 10.5 |
| R901515021 | ISO 4401-05-05-0-05 | 170.0 | Symbol V | 25.0 | 7.28 |
| R901506981 | ISO 4401-05-05-0-05 | 170.0 | Symbol V | 100.0 | 7.5 |
| R901545958 | ISO 4401-05-05-0-05 | 170.0 | Symbol V | 100.0 | 7.5 |
| R901558831 | ISO 4401-05-05-0-05 | 170.0 | Symbol V | 50.0 | 7.5 |
Common to all listed parts
| Product family | 4WRDE |
| Operating pressure, max. [bar] | 350.0 |
| Type of connection | Subplate mounting |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
