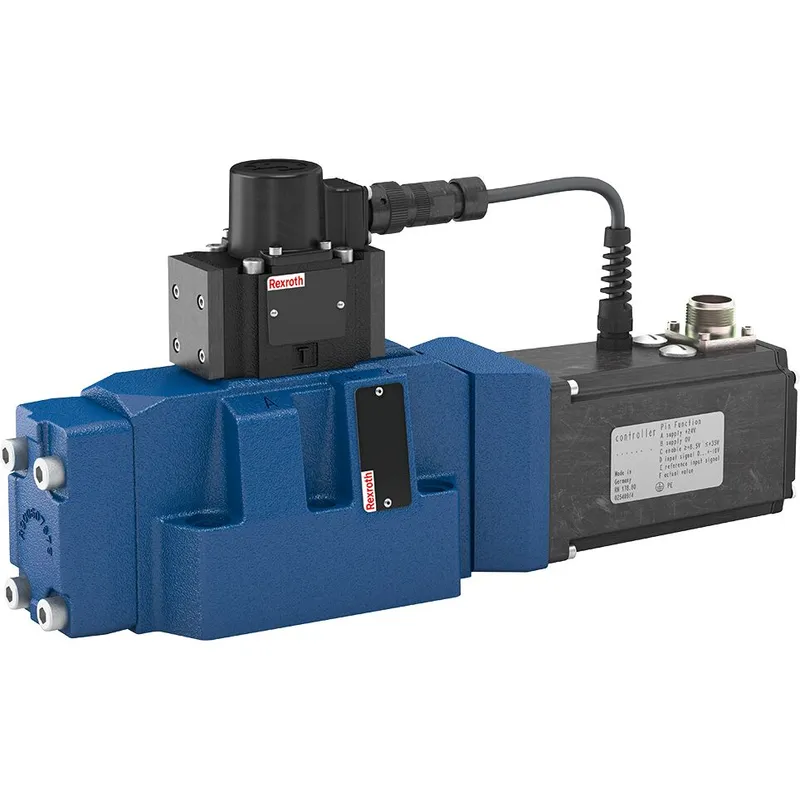

PROPORTIONAL DIRECTIONAL VALVE 4WRDE16E150L-6X/MXY/24F1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Proportional directional valves |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R901526075 be shipped?
R901526075 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R901526075 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R901526075 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R901526075, subject to availability and destination.
Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol, high accuracy through internal piston position feedback.
Spool valve
Pilot-operated
Linear
External pilot oil supply, external pilot oil return
Specifications
Specifications
| Connection diagram | ISO 4401-07-07-0-05 |
| Product family | 4WRDE |
| Operating pressure, max. [bar] | 350.0 |
| Max. flow [l/min] | 460.0 |
| Spool symbol | Symbol E |
| Type of connection | Subplate mounting |
| Nominal flow [l/min] | 150.0 |
| Size | 16 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
| Electrical connection description | Connector, 7-pole (6 + PE) according to EN 175201-804 |
| Connectivity | Analog, command value 4…20 mA |
| Hydraulic fluid | HFC; HL; HLP; HLPD; HVLP; HVLPD |
| Seals | NBR |
| Weight [kg] | 10 |
More Bosch Rexroth parts
Available on requestDIRECTIONAL SPOOL VALVE 4WE6C6X/EG24N9K40
Available on requestDIRECTIONAL SPOOL VALVE 4WEH16HA7X/6EG24N9ETK4QM0G24/B10P4,5
Available on requestDIRECTIONAL SPOOL VALVE 4WE10Y5X/EW230N9K4/V
Available on requestDIRECTIONAL SPOOL VALVE 4WE6D6X/EG24N9K4/B10=UR
Available on requestDIRECTIONAL SPOOL VALVE 4WE10D5X/OFEG24N9K4/T12M
Available on requestDIRECTIONAL SPOOL VALVE 4WEH16J7X/6EW230N9DL/B10
Available on requestDIRECTIONAL SPOOL VALVE 4WEH16E7X/6EW230N9DL/B10

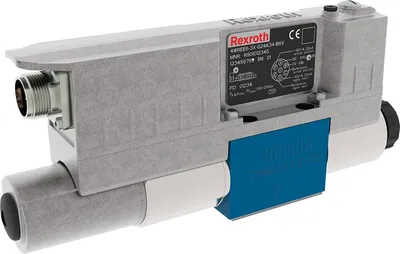

Available on requestPROPORTIONAL DIRECTIONAL VALVE 4WREE6WA16-3X/V/24F1
