GearMe modular two stage Parts
Compare GearMe modular two stage
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | B: 1st stage displacement | C: 2nd stage displacement | I: 1st stage inlet size | J: 1st stage outlet size | L: 2nd stage inlet size |
|---|---|---|---|---|---|
| 181.20.100.00 | Displacement 19 cc | Displacement 6,0 cc | 1-1/16-12UN | 7/8-14UNF | 1-1/16-12UN |
| 181.20.099.00 | Displacement 8,0 cc | Displacement 8,0 cc | 13,5x30xM6 | 13,5x30xM6 | 13,5x30xM6 |
| 181.20.093.00 | Displacement 17 cc | Displacement 4,0 cc | 20x40xM8 | 20x40xM8 | 13,5x30xM6 |
| 181.20.092.00 | Displacement 14 cc | Displacement 8,0 cc | 1-1/16-12UN | 7/8-14UNF | 1-1/16-12UN |
| 181.20.091.00 | Displacement 11 cc | Displacement 11 cc | 13,5x30xM6 | 13,5x30xM6 | 13,5x30xM6 |
| 181.20.090.00 | Displacement 11 cc | Displacement 11 cc | 13,5x30xM6 | 13,5x30xM6 | 13,5x30xM6 |
| 181.20.087.00 | Displacement 8,0 cc | Displacement 4,0 cc | 20x40xM6 | 15x35xM6 | 15x40xM6 |

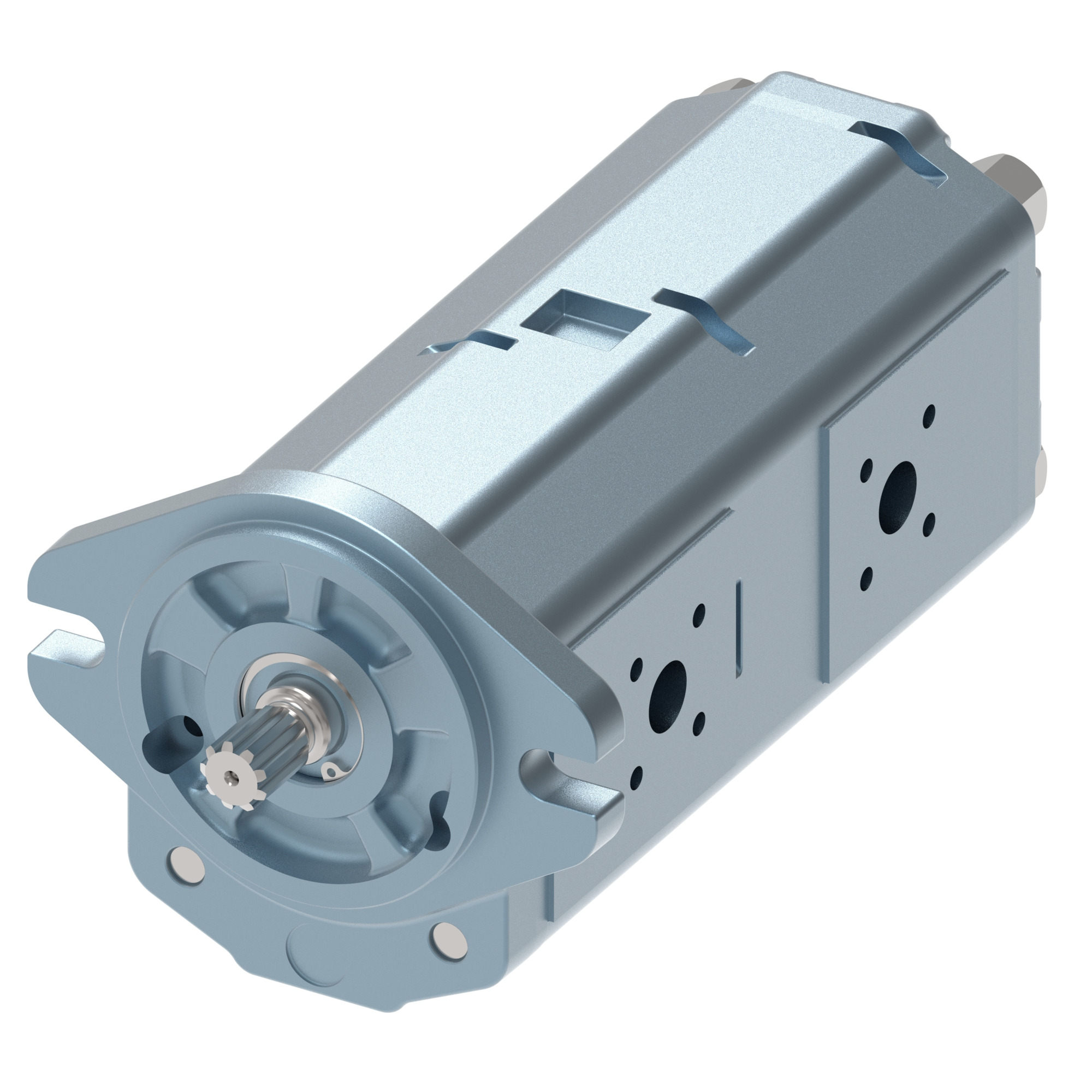

| 181.20.085.00 | Displacement 22 cc | Displacement 11 cc | 1-1/16-12UN | 7/8-14UNF | 1-1/16-12UN |
| 181.20.084.00 | Displacement 22 cc | Displacement 8,0 cc | 1-1/16-12UN | 7/8-14UNF | 1-1/16-12UN |
| 181.20.083.00 | Displacement 11 cc | Displacement 6,0 cc | 1-1/16-12UN | 7/8-14UNF | 1-1/16-12UN |
| 181.20.082.00 | Displacement 19 cc | Displacement 6,0 cc | 20x40xM8 | 13,5x30xM6 | 13,5x30xM6 |
| 181.20.077.00 | Displacement 14 cc | Displacement 11 cc | 1-1/16-12UN | 7/8-14UNF | 1-1/16-12UN |
| 181.20.076.00 | Displacement 14 cc | Displacement 8,0 cc | 1-1/16-12UN | 7/8-14UNF | 1-1/16-12UN |
| 181.20.075.00 | Displacement 11 cc | Displacement 8,0 cc | 20x40xM6 | 15x35xM6 | 20x40xM6 |
| 181.20.073.00 | Displacement 11 cc | Displacement 8,0 cc | 1-1/16-12UN | 7/8-14UNF | 1-1/16-12UN |
| 181.20.070.00 | Displacement 14 cc | Displacement 14 cc | 20x40xM6 | 15x35xM6 | 20x40xM6 |
| 181.20.067.00 | Displacement 19 cc | Displacement 11 cc | 20x40xM6 | 15x35xM6 | 20x40xM6 |
| 181.20.066.00 | Displacement 8,0 cc | Displacement 6,0 cc | 20x40xM6 | 15x35xM6 | 15x40xM6 |
| 181.20.064.00 | Displacement 14 cc | Displacement 14 cc | 1-1/16-12UN | 7/8-14UNF | 1-1/16-12UN |
| 181.20.063.00 | Displacement 19 cc | Displacement 11 cc | 20x40xM6 | 15x35xM6 | 20x40xM6 |
| 181.20.060.00 | Displacement 11 cc | Displacement 8,0 cc | 20x40xM6 | 15x35xM6 | 20x40xM6 |
| 181.20.059.00 | Displacement 19 cc | Displacement 14 cc | 20x40xM6 | 15x35xM6 | 20x40xM6 |
| 181.20.058.00 | Displacement 11 cc | Displacement 11 cc | 20x40xM6 | 15x35xM6 | 20x40xM6 |
Common to all listed parts
| A: Tandem Gr.2 family | SNW2NN+SNP2NN |
| E: Project version | Standard ( without intermediate flange ) |
| H: Rear cover | Cover for pump with holes M5 |
| N: 2nd stage ports position | Standard from catalogue |
| O-Ring, Inside Diameter | Slash |
| O: Seals | Standard seal |
| OC DELIMITER (-) | - |
| P: Screws | Standard screws |
