GearMe modular two stage Parts
Compare GearMe modular two stage
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | B: 1st stage displacement | C: 2nd stage displacement | I: 1st stage inlet size | J: 1st stage outlet size | L: 2nd stage inlet size |
|---|---|---|---|---|---|
| 181.20.339.00 | Displacement 25 cc | Displacement 17 cc | 23,5x40xM8 | 20x40xM8 | 20x40xM8 |
| 181.20.337.00 | Displacement 25 cc | Displacement 25 cc | 23,5x40xM8 | 20x40xM8 | 23,5x40xM8 |
| 181.20.336.00 | Displacement 19 cc | Displacement 19 cc | 20x40xM8 | 13,5x30xM6 | 20x40xM8 |
| 181.20.333.00 | Displacement 19 cc | Displacement 14 cc | 3/4 GAS | 1/2 GAS | 3/4 GAS |

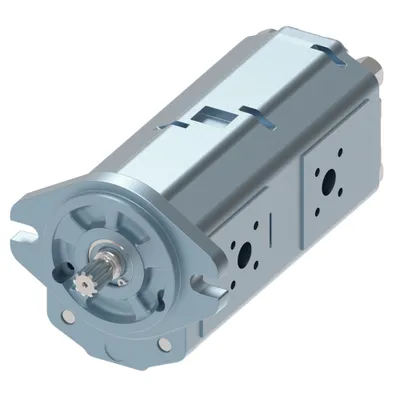

| 181.20.331.00 | Displacement 22 cc | Displacement 6,0 cc | 3/4 GAS | 1/2 GAS | 13,5x30xM6 |
| 181.20.330.00 | Displacement 11 cc | Displacement 6,0 cc | 3/4 GAS | 1/2 GAS | 1/2 GAS |
| 181.20.323.00 | Displacement 19 cc | Displacement 8,0 cc | 20x40xM6 | 15x35xM6 | 20x40xM6 |
| 181.20.321.00 | Displacement 19 cc | Displacement 11 cc | 20x40xM6 | 15x35xM6 | 20x40xM6 |
| 181.20.320.00 | Displacement 19 cc | Displacement 11 cc | 1-1/16-12UN | 7/8-14UNF | 1-1/16-12UN |
| 181.20.317.00 | Displacement 19 cc | Displacement 14 cc | 20x40xM8 | 13,5x30xM6 | 20x40xM8 |
| 181.20.316.00 | Displacement 11 cc | Displacement 8,0 cc | 1-1/16-12UN | 7/8-14UNF | 1-1/16-12UN |
| 181.20.315.00 | Displacement 19 cc | Displacement 8,0 cc | 20x40xM8 | 13,5x30xM6 | 13,5x30xM6 |
| 181.20.312.00 | Displacement 11 cc | Displacement 6,0 cc | 20x40xM6 | 15x35xM6 | 15x40xM6 |
| 181.20.311.00 | Displacement 17 cc | Displacement 11 cc | 3/4 GAS | 1/2 GAS | 3/4 GAS |
| 181.20.309.00 | Displacement 14 cc | Displacement 8,0 cc | 20x40xM8 | 13,5x30xM6 | 20x40xM8 |
| 181.20.308.00 | Displacement 25 cc | Displacement 25 cc | 23,5x40xM8 | 20x40xM8 | 23,5x40xM8 |
| 181.20.307.00 | Displacement 14 cc | Displacement 14 cc | 20x40xM8 | 13,5x30xM6 | 20x40xM8 |
| 181.20.306.00 | Displacement 8,0 cc | Displacement 8,0 cc | 13,5x30xM6 | 13,5x30xM6 | 13,5x30xM6 |
| 181.20.303.00 | Displacement 22 cc | Displacement 6,0 cc | 20x40xM6 | 15x35xM6 | 15x40xM6 |
| 181.20.302.00 | Displacement 17 cc | Displacement 11 cc | 20x40xM6 | 15x35xM6 | 20x40xM6 |
| 181.20.301.00 | Displacement 6,0 cc | Displacement 6,0 cc | 1-1/16-12UN | 7/8-14UNF | 1-1/16-12UN |
| 181.20.296.00 | Displacement 14 cc | Displacement 6,0 cc | 20x40xM8 | 13,5x30xM6 | 13,5x30xM6 |
| 181.20.295.00 | Displacement 17 cc | Displacement 8,0 cc | 20x40xM6 | 15x35xM6 | 20x40xM6 |
| 181.20.293.00 | Displacement 14 cc | Displacement 14 cc | 20x40xM8 | 13,5x30xM6 | 20x40xM8 |
Common to all listed parts
| A: Tandem Gr.2 family | SNW2NN+SNP2NN |
| E: Project version | Standard ( without intermediate flange ) |
| H: Rear cover | Cover for pump with holes M5 |
| N: 2nd stage ports position | Standard from catalogue |
| O-Ring, Inside Diameter | Slash |
| O: Seals | Standard seal |
| OC DELIMITER (-) | - |
| P: Screws | Standard screws |
