GearMe modular two stage Parts
Compare GearMe modular two stage
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | B: 1st stage displacement | C: 2nd stage displacement | I: 1st stage inlet size | J: 1st stage outlet size | L: 2nd stage inlet size |
|---|---|---|---|---|---|
| 181.20.505.00 | Displacement 14 cc | Displacement 6,0 cc | 1-1/16-12UN | 7/8-14UNF | 1-1/16-12UN |
| 181.20.503.00 | Displacement 22 cc | Displacement 14 cc | 20x40xM6 | 15x35xM6 | 20x40xM6 |
| 181.20.502.00 | Displacement 19 cc | Displacement 19 cc | 20x40xM6 | 15x35xM6 | 20x40xM6 |
| 181.20.499.00 | Displacement 19 cc | Displacement 8,0 cc | 20x40xM6 | 15x35xM6 | 20x40xM6 |
| 181.20.498.00 | Displacement 19 cc | Displacement 6,0 cc | 3/4 GAS | 1/2 GAS | 1/2 GAS |
| 181.20.493.00 | Displacement 17 cc | Displacement 17 cc | 1-1/16-12UN | 7/8-14UNF | 1-1/16-12UN |
| 181.20.492.00 | Displacement 14 cc | Displacement 6,0 cc | 20x40xM6 | 15x35xM6 | 15x40xM6 |
| 181.20.490.00 | Displacement 25 cc | Displacement 19 cc | 3/4 GAS | 1/2 GAS | 3/4 GAS |
| 181.20.489.00 | Displacement 25 cc | Displacement 17 cc | 1 GAS | 3/4 GAS | 3/4 GAS |
| 181.20.488.00 | Displacement 17 cc | Displacement 14 cc | 20x40xM8 | 13,5x30xM6 | 20x40xM8 |
| 181.20.487.00 | Displacement 17 cc | Displacement 6,0 cc | 3/4 GAS | 1/2 GAS | 1/2 GAS |
| 181.20.480.00 | Displacement 22 cc | Displacement 22 cc | 20x40xM6 | 15x35xM6 | 20x40xM6 |

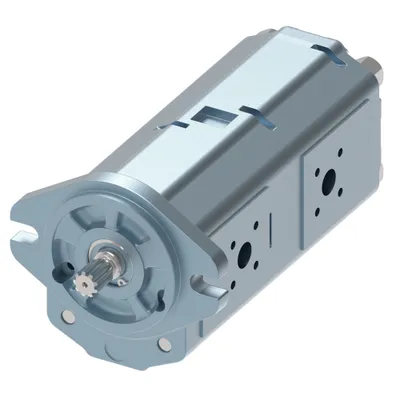

| 181.20.474.00 | Displacement 14 cc | Displacement 11 cc | 20x40xM6 | 15x35xM6 | 20x40xM6 |
| 181.20.471.00 | Displacement 11 cc | Displacement 11 cc | 20x40xM6 | 15x35xM6 | 20x40xM6 |
| 181.20.466.00 | Displacement 17 cc | Displacement 17 cc | 20x40xM6 | 15x35xM6 | 20x40xM6 |
| 181.20.450.00 | Displacement 11 cc | Displacement 6,0 cc | 13,5x30xM6 | 13,5x30xM6 | 13,5x30xM6 |
| 181.20.443.00 | Displacement 22 cc | Displacement 8,0 cc | 20x40xM6 | 15x35xM6 | 20x40xM6 |
| 181.20.439.00 | Displacement 11 cc | Displacement 8,0 cc | 13,5x30xM6 | 13,5x30xM6 | 13,5x30xM6 |
| 181.20.438.00 | Displacement 19 cc | Displacement 6,0 cc | 20x40xM6 | 15x35xM6 | 15x40xM6 |
| 181.20.435.00 | Displacement 4,0 cc | Displacement 4,0 cc | 1-1/16-12UN | 7/8-14UNF | 1-1/16-12UN |
| 181.20.431.00 | Displacement 17 cc | Displacement 11 cc | 1-1/16-12UN | 7/8-14UNF | 1-1/16-12UN |
| 181.20.430.00 | Displacement 17 cc | Displacement 4,0 cc | 20x40xM6 | 15x35xM6 | 15x40xM6 |
| 181.20.429.00 | Displacement 22 cc | Displacement 22 cc | 20x40xM6 | 15x35xM6 | 20x40xM6 |
| 181.20.428.00 | Displacement 14 cc | Displacement 6,0 cc | 3/4 GAS | 1/2 GAS | 1/2 GAS |
Common to all listed parts
| A: Tandem Gr.2 family | SNW2NN+SNP2NN |
| N: 2nd stage ports position | Standard from catalogue |
| O-Ring, Inside Diameter | Slash |
| OC DELIMITER (-) | - |
| P: Screws | Standard screws |
| Proposition 65 | Cancer and Reproductive Harm |
| Q: Valve setting | without setting |
| R: Mark type | Std Sauer Danfoss Marking |
