Danfoss orbital motor quick selector Parts

Danfoss

036-0258-002

MOTOR-ORBITAL,XLS SERIES 50 [3.1], MCS050AC04AE310000A000C00B

Danfoss

036-0251-002

MOTOR-ORBITAL,XLS SERIES 100 [6.2], MCS100AD08AE310000A000C00B

Danfoss

036-0248-002

MOTOR-ORBITAL,XLS SERIES 395 [24.0], MCS395AD05AE310000A000C00B

Danfoss

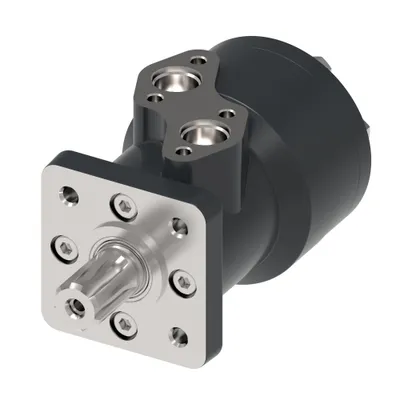

036-0247-002

MOTOR-ORBITAL,XLS SERIES 305 [18.7], MCS305AD05AE310000A000C00B

Danfoss

036-0246-002

MOTOR-ORBITAL,XLS SERIES 245 [14.9], MCS245AD05AE310000A000C00B

Danfoss

036-0245-002

MOTOR-ORBITAL,XLS SERIES 195 [11.9], MCS195AD05AE310000A000C00B

Danfoss

036-0244-002

MOTOR-ORBITAL,XLS SERIES 160 [9.6], MCS160AD05AE310000A000C00B

Danfoss

036-0242-002

MOTOR-ORBITAL,XLS SERIES 80 [4.9], MCS080AD05AE310000A000C00B

Danfoss

036-0241-002

MOTOR-ORBITAL,XLS SERIES 50 [3.1], MCS050AD05AE310000A000C00B

Danfoss

036-0237-002

MOTOR-ORBITAL,XLS SERIES 195 [11.9], MCS195AD04AE310000A000C00B

Danfoss

036-0233-002

MOTOR-ORBITAL,XLS SERIES 80 [4.9], MCS080AD04AE310000A000C00B

Danfoss

036-0232-002

MOTOR-ORBITAL,XLS SERIES 50 [3.1], MCS050AD04AE310000A000C00B

Danfoss

036-0225-002

MOTOR-ORBITAL,XLS SERIES 100 [6.2], MCS100AD05AE310000A000C00B

Danfoss

036-0222-002

MOTOR-ORBITAL,XLS SERIES 245 [14.9], MCS245AA01AA110020A000C00B

Danfoss

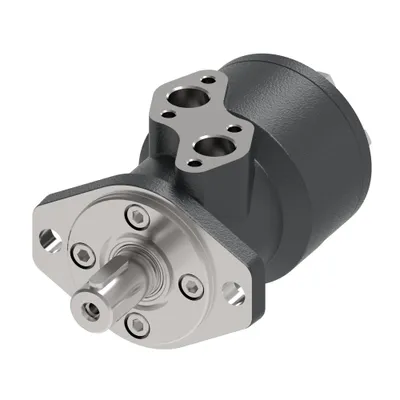

036-0221-002

MOTOR-ORBITAL,XLS SERIES 195 [11.9], MCS195AA01AA110020A000C00B

Danfoss

036-0220-002

MOTOR-ORBITAL,XLS SERIES 130 [8.0], MCS130AA01AA110020A000C00B

Danfoss

036-0218-002

MOTOR-ORBITAL,XLS SERIES 80 [4.9], MCS080AA01AA110020A000C00B

Danfoss

036-0217-002

MOTOR-ORBITAL,XLS SERIES 50 [3.1], MCS050AA01AA110020A000C00B

Danfoss

036-0204-002

MOTOR-ORBITAL,XLS SERIES 195 [11.9], MCS195AD05AH010000A000E00B

Danfoss

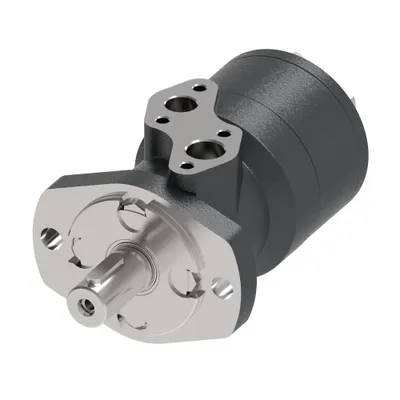

036-0192-002

MOTOR-ORBITAL,XLS SERIES 245 [14.9], MCS245AI22AA010000A020B00B

Danfoss

036-0191-002

MOTOR-ORBITAL,XLS SERIES 195 [11.9], MCS200AI22AA010000A020B00B

Danfoss

036-0187-002

MOTOR-ORBITAL,XLS SERIES 80 [4.9], MCS080AI22AA010000A020B00B

Danfoss

036-0186-002

MOTOR-ORBITAL,XLS SERIES 50 [3.1], MCS050AI22AA010000A020B00B

Danfoss

036-0181-002

MOTOR-ORBITAL,XLS SERIES 160 [9.6], MCS160AA03AA110020A000B00B

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Shaft Key
036-0258-002	MCS050AC04AE310000A000C00B	50	50.4 [3.08]	2 Bolt - A	n/a
036-0251-002	MCS100AD08AE310000A000C00B	100	101.3 [6.18]	4 Bolt - Square	n/a
036-0248-002	MCS395AD05AE310000A000C00B	395	393.0 [23.98]	4 Bolt - Square	Square key, 1/4 x 1 1/4 inch
036-0247-002	MCS305AD05AE310000A000C00B	305	305.7 [18.65]	4 Bolt - Square	Square key, 1/4 x 1 1/4 inch
036-0246-002	MCS245AD05AE310000A000C00B	245	243.9 [14.88]	4 Bolt - Square	Square key, 1/4 x 1 1/4 inch
036-0245-002	MCS195AD05AE310000A000C00B	195	194.5 [11.87]	4 Bolt - Square	Square key, 1/4 x 1 1/4 inch
036-0244-002	MCS160AD05AE310000A000C00B	160	157.7 [9.62]	4 Bolt - Square	Square key, 1/4 x 1 1/4 inch
036-0242-002	MCS080AD05AE310000A000C00B	80	80.1 [4.89]	4 Bolt - Square	Square key, 1/4 x 1 1/4 inch
036-0241-002	MCS050AD05AE310000A000C00B	50	50.4 [3.08]	4 Bolt - Square	Square key, 1/4 x 1 1/4 inch
036-0237-002	MCS195AD04AE310000A000C00B	195	194.5 [11.87]	4 Bolt - Square	n/a
036-0233-002	MCS080AD04AE310000A000C00B	80	80.1 [4.89]	4 Bolt - Square	n/a
036-0232-002	MCS050AD04AE310000A000C00B	50	50.4 [3.08]	4 Bolt - Square	n/a
036-0225-002	MCS100AD05AE310000A000C00B	100	101.3 [6.18]	4 Bolt - Square	Square key, 1/4 x 1 1/4 inch
036-0222-002	MCS245AA01AA110020A000C00B	245	243.9 [14.88]	2 Bolt - A	Rectangular key, A8 x 7 x 32 mm
036-0221-002	MCS195AA01AA110020A000C00B	195	194.5 [11.87]	2 Bolt - A	Rectangular key, A8 x 7 x 32 mm
036-0220-002	MCS130AA01AA110020A000C00B	130	130.5 [7.96]	2 Bolt - A	Rectangular key, A8 x 7 x 32 mm
036-0218-002	MCS080AA01AA110020A000C00B	80	80.1 [4.89]	2 Bolt - A	Rectangular key, A8 x 7 x 32 mm
036-0217-002	MCS050AA01AA110020A000C00B	50	50.4 [3.08]	2 Bolt - A	Rectangular key, A8 x 7 x 32 mm
036-0204-002	MCS195AD05AH010000A000E00B	195	194.5 [11.87]	4 Bolt - Square	Square key, 1/4 x 1 1/4 inch
036-0192-002	MCS245AI22AA010000A020B00B	245	243.9 [14.88]	2 Bolt	Rectangular key, A8 x 7 x 32 mm
036-0191-002	MCS200AI22AA010000A020B00B	200	200.0 [12.20]	2 Bolt	Rectangular key, A8 x 7 x 32 mm
036-0187-002	MCS080AI22AA010000A020B00B	80	80.1 [4.89]	2 Bolt	Rectangular key, A8 x 7 x 32 mm
036-0186-002	MCS050AI22AA010000A020B00B	50	50.4 [3.08]	2 Bolt	Rectangular key, A8 x 7 x 32 mm
036-0181-002	MCS160AA03AA110020A000B00B	160	157.7 [9.62]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch

Common to all listed parts

Motor Series	XLS Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
Painted	Yes
