Danfoss orbital motor quick selector Parts

Danfoss

036-0343-002

MOTOR-ORBITAL,XLS SERIES 100 [6.2], MCS100AA03AE310020A000C02B

Danfoss

036-0334-002

MOTOR-ORBITAL,XLS SERIES 50 [3.1], MCS050AA03AE310020A000B00B

Danfoss

036-0323-002

MOTOR-ORBITAL,XLS SERIES 100 [6.2], MCS100AA02AA110020A001C00B

Danfoss

036-0317-002

MOTOR-ORBITAL,XLS SERIES 130 [8.0], MCS130AA04AA110020A000C00B

Danfoss

036-0316-002

MOTOR-ORBITAL,XLS SERIES 245 [14.9], MCS245AA04AA110020A000B00B

Danfoss

036-0315-002

MOTOR-ORBITAL,XLS SERIES 160 [9.6], MCS160AA04AA110020A000B00B

Danfoss

036-0304-002

MOTOR-ORBITAL,XLS SERIES 130 [8.0], MCS130AA03AA110020A000B00B

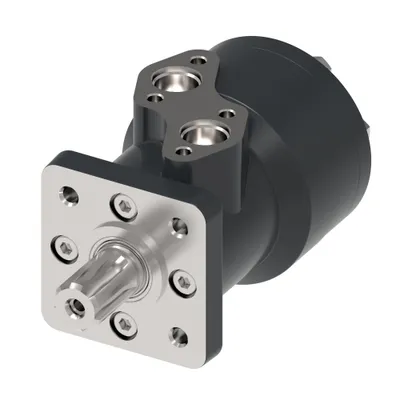

Danfoss

036-0300-002

MOTOR-ORBITAL,XLS SERIES 160 [9.6], MCS160AD01AE010000A000C00B

Danfoss

036-0297-002

MOTOR-ORBITAL,XLS SERIES 50 [3.1], MCS050AD02AE010000A000C00B

Danfoss

036-0296-002

MOTOR-ORBITAL,XLS SERIES 50 [3.1], MCS050AD03AE010000A000C00B

Danfoss

036-0292-002

MOTOR-ORBITAL,XLS SERIES 195 [11.9], MCS195AE01AA110020A000C00B

Danfoss

036-0288-002

MOTOR-ORBITAL,XLS SERIES 50 [3.1], MCS050AB01AA010000A000C00B

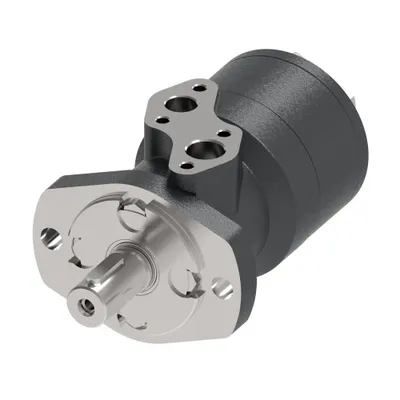

Danfoss

036-0286-002

MOTOR-ORBITAL,XLS SERIES 80 [4.9], MCS080AI03AA010000A020B00B

Danfoss

036-0275-002

MOTOR-ORBITAL,XLS SERIES 395 [24.0], MCS395AC05AE310000A000C00B

Danfoss

036-0274-002

MOTOR-ORBITAL,XLS SERIES 305 [18.7], MCS305AC05AE310000A000C00B

Danfoss

036-0273-002

MOTOR-ORBITAL,XLS SERIES 245 [14.9], MCS245AC05AE310000A000C00B

Danfoss

036-0272-002

MOTOR-ORBITAL,XLS SERIES 195 [11.9], MCS195AC05AE310000A000C00B

Danfoss

036-0271-002

MOTOR-ORBITAL,XLS SERIES 160 [9.6], MCS160AC05AE310000A000C00B

Danfoss

036-0270-002

MOTOR-ORBITAL,XLS SERIES 130 [8.0], MCS130AC05AE310000A000C00B

Danfoss

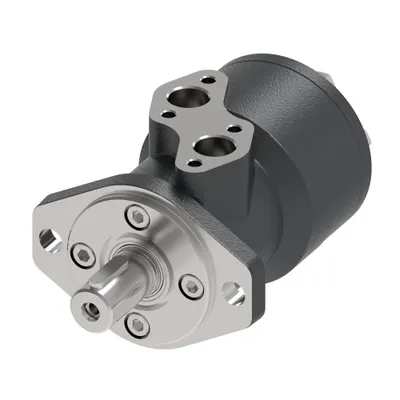

036-0269-002

MOTOR-ORBITAL,XLS SERIES 100 [6.2], MCS100AC05AE310000A000C00B

Danfoss

036-0268-002

MOTOR-ORBITAL,XLS SERIES 80 [4.9], MCS080AC05AE310000A000C00B

Danfoss

036-0267-002

MOTOR-ORBITAL,XLS SERIES 50 [3.1], MCS050AC05AE310000A000C00B

Danfoss

036-0266-002

MOTOR-ORBITAL,XLS SERIES 395 [24.0], MCS395AC04AE310000A000C00B

Danfoss

036-0259-002

MOTOR-ORBITAL,XLS SERIES 80 [4.9], MCS080AC04AE310000A000C00B

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Shaft Key
036-0343-002	MCS100AA03AE310020A000C02B	100	101.3 [6.18]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
036-0334-002	MCS050AA03AE310020A000B00B	50	50.4 [3.08]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
036-0323-002	MCS100AA02AA110020A001C00B	100	101.3 [6.18]	2 Bolt - A	Rectangular key, A8 x 7 x 32 mm
036-0317-002	MCS130AA04AA110020A000C00B	130	130.5 [7.96]	2 Bolt - A	n/a
036-0316-002	MCS245AA04AA110020A000B00B	245	243.9 [14.88]	2 Bolt - A	n/a
036-0315-002	MCS160AA04AA110020A000B00B	160	157.7 [9.62]	2 Bolt - A	n/a
036-0304-002	MCS130AA03AA110020A000B00B	130	130.5 [7.96]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
036-0300-002	MCS160AD01AE010000A000C00B	160	157.7 [9.62]	4 Bolt - Square	Rectangular key, A8 x 7 x 32 mm
036-0297-002	MCS050AD02AE010000A000C00B	50	50.4 [3.08]	4 Bolt - Square	Rectangular key, A8 x 7 x 32 mm
036-0296-002	MCS050AD03AE010000A000C00B	50	50.4 [3.08]	4 Bolt - Square	Square key, 1/4 x 1 1/4 inch
036-0292-002	MCS195AE01AA110020A000C00B	195	194.5 [11.87]	4 Bolt - Square	Rectangular key, A8 x 7 x 32 mm
036-0288-002	MCS050AB01AA010000A000C00B	50	50.4 [3.08]	2 Bolt - A	Rectangular key, A8 x 7 x 32 mm
036-0286-002	MCS080AI03AA010000A020B00B	80	80.1 [4.89]	2 Bolt	Square key, 1/4 x 1 1/4 inch
036-0275-002	MCS395AC05AE310000A000C00B	395	393.0 [23.98]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
036-0274-002	MCS305AC05AE310000A000C00B	305	305.7 [18.65]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
036-0273-002	MCS245AC05AE310000A000C00B	245	243.9 [14.88]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
036-0272-002	MCS195AC05AE310000A000C00B	195	194.5 [11.87]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
036-0271-002	MCS160AC05AE310000A000C00B	160	157.7 [9.62]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
036-0270-002	MCS130AC05AE310000A000C00B	130	130.5 [7.96]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
036-0269-002	MCS100AC05AE310000A000C00B	100	101.3 [6.18]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
036-0268-002	MCS080AC05AE310000A000C00B	80	80.1 [4.89]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
036-0267-002	MCS050AC05AE310000A000C00B	50	50.4 [3.08]	2 Bolt - A	Square key, 1/4 x 1 1/4 inch
036-0266-002	MCS395AC04AE310000A000C00B	395	393.0 [23.98]	2 Bolt - A	n/a
036-0259-002	MCS080AC04AE310000A000C00B	80	80.1 [4.89]	2 Bolt - A	n/a

Common to all listed parts

Motor Series	XLS Series
Valve system	Spool valve
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
Painted	Yes
