Danfoss orbital motor quick selector Parts

Danfoss

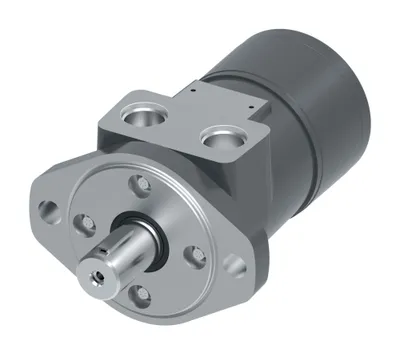

101-1542-009

MOTOR-ORBITAL,H SERIES 295 [17.9], MH0179JA01AE0000000000000AA00J

Danfoss

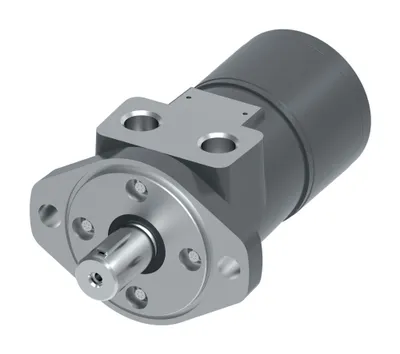

101-1541-009

MOTOR-ORBITAL,H SERIES 370 [22.6], MH0226AA01AB0000000000AB0AA00J

Danfoss

101-1524-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059BA01EB0000000000000AA00J

Danfoss

101-1523-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045BA01EB0000000000000AA00J

Danfoss

101-1522-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028BA01EB0000000000000AA00J

Danfoss

101-1516-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045BA18EB0100000000AJ0AA00J

Danfoss

101-1512-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028BA01AA0100000000000AA00J

Danfoss

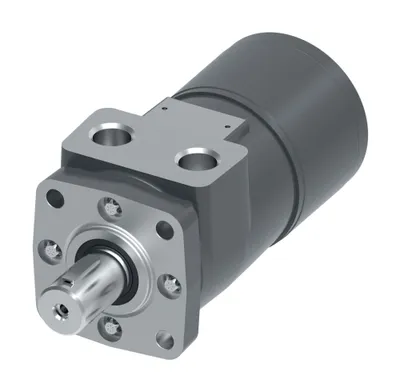

101-1503-009

MOTOR-ORBITAL,H SERIES 370 [22.6], MH0226BA01AB0000030000000AA00J

Danfoss

101-1501-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097BA01AA0100000000000AA00J

Danfoss

101-1497-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028BA07AB0000000000000AA00J

Danfoss

101-1496-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059BA44EB00A0000000000AA00J

Danfoss

101-1478-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045BA07EB0100000000AJ1AA00J

Danfoss

101-1472-009

MOTOR-ORBITAL,H SERIES 185 [11.3], MH0113BA18EB0000000000000AA00J

Danfoss

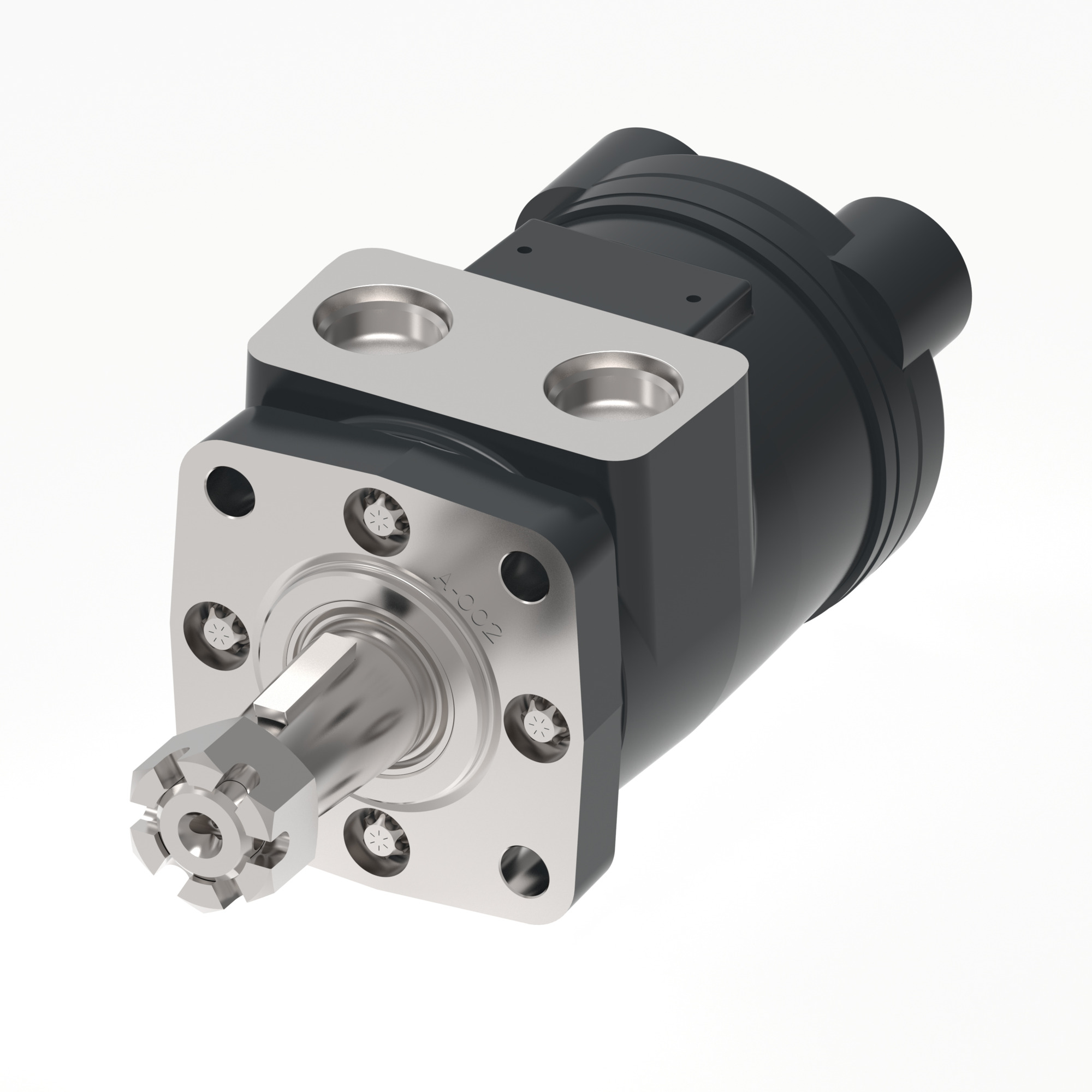

101-1471-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097BA18EB0000000000000AA00J

Danfoss

101-1468-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045BA18EB0000000000000AA00J

Danfoss

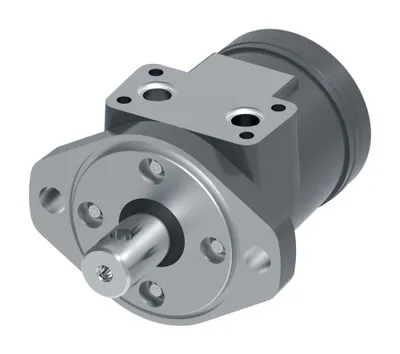

101-1463-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028AA08AC0000000000000AA00J

Danfoss

101-1459-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045BA07AC0000000000000AA00J

Danfoss

101-1449-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045BA07AB0000000000000AA00J

Danfoss

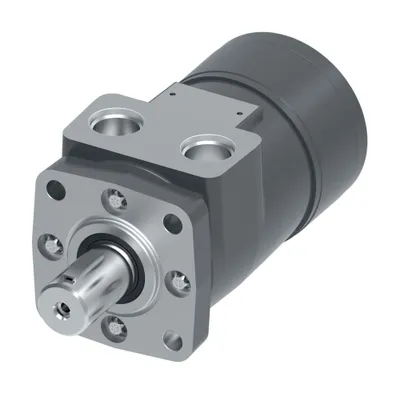

101-1443-009

MOTOR-ORBITAL,H SERIES 230 [14.1], MH0141BA01AA00A0000000000AA00J

Danfoss

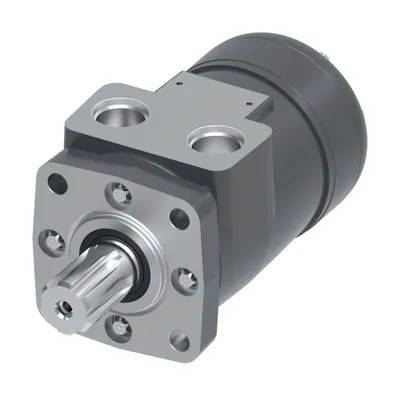

101-1440-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097BA02AA0100000000001AA00J

Danfoss

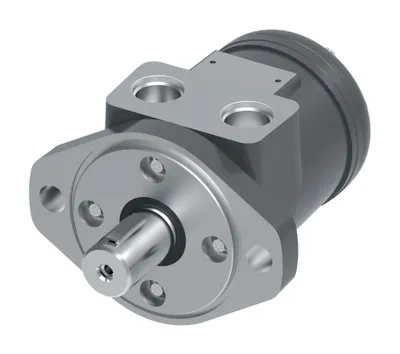

101-1418-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028AA01AA0100000000001AA00J

Danfoss

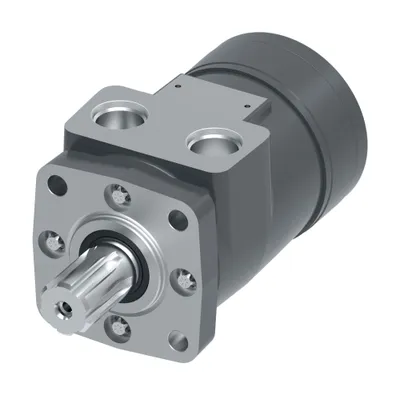

101-1362-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097BA02AA0000000000001AH00J

Danfoss

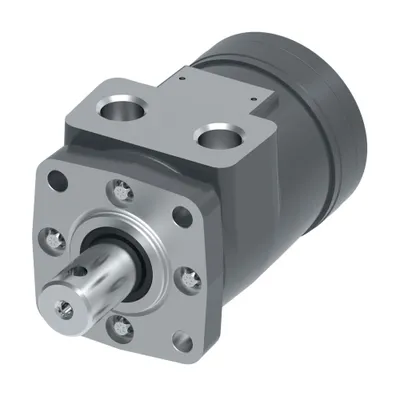

101-1352-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059BA07AB0000000000000AA00J

Danfoss

101-1332-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045BA01AB000N000000000AA00J

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port thread type	Main port style
101-1542-009	MH0179JA01AE0000000000000AA00J	295	294 [17.9]	No data available	No data available
101-1541-009	MH0226AA01AB0000000000AB0AA00J	370	370 [22.6]	NPT / NPTF	Sideport - aligned
101-1524-009	MH0059BA01EB0000000000000AA00J	95	96 [5.9]	UN / UNF	Endport - aligned
101-1523-009	MH0045BA01EB0000000000000AA00J	75	74 [4.5]	UN / UNF	Endport - aligned
101-1522-009	MH0028BA01EB0000000000000AA00J	45	46 [2.8]	UN / UNF	Endport - aligned
101-1516-009	MH0045BA18EB0100000000AJ0AA00J	75	74 [4.5]	UN / UNF	Endport - aligned
101-1512-009	MH0028BA01AA0100000000000AA00J	45	46 [2.8]	UN / UNF	Sideport - aligned
101-1503-009	MH0226BA01AB0000030000000AA00J	370	370 [22.6]	NPT / NPTF	Sideport - aligned
101-1501-009	MH0097BA01AA0100000000000AA00J	160	159 [9.7]	UN / UNF	Sideport - aligned
101-1497-009	MH0028BA07AB0000000000000AA00J	45	46 [2.8]	NPT / NPTF	Sideport - aligned
101-1496-009	MH0059BA44EB00A0000000000AA00J	95	96 [5.9]	UN / UNF	Endport - aligned
101-1478-009	MH0045BA07EB0100000000AJ1AA00J	75	74 [4.5]	UN / UNF	Endport - aligned
101-1472-009	MH0113BA18EB0000000000000AA00J	185	185 [11.3]	UN / UNF	Endport - aligned
101-1471-009	MH0097BA18EB0000000000000AA00J	160	159 [9.7]	UN / UNF	Endport - aligned
101-1468-009	MH0045BA18EB0000000000000AA00J	75	74 [4.5]	UN / UNF	Endport - aligned
101-1463-009	MH0028AA08AC0000000000000AA00J	45	46 [2.8]	Manifold	Sideport - aligned
101-1459-009	MH0045BA07AC0000000000000AA00J	75	74 [4.5]	Manifold	Sideport - aligned
101-1449-009	MH0045BA07AB0000000000000AA00J	75	74 [4.5]	NPT / NPTF	Sideport - aligned
101-1443-009	MH0141BA01AA00A0000000000AA00J	230	231 [14.1]	UN / UNF	Sideport - aligned
101-1440-009	MH0097BA02AA0100000000001AA00J	160	159 [9.7]	UN / UNF	Sideport - aligned
101-1418-009	MH0028AA01AA0100000000001AA00J	45	46 [2.8]	UN / UNF	Sideport - aligned
101-1362-009	MH0097BA02AA0000000000001AH00J	160	159 [9.7]	UN / UNF	Sideport - aligned
101-1352-009	MH0059BA07AB0000000000000AA00J	95	96 [5.9]	NPT / NPTF	Sideport - aligned
101-1332-009	MH0045BA01AB000N000000000AA00J	75	74 [4.5]	NPT / NPTF	Sideport - aligned

Common to all listed parts

Motor Series	H Series
Valve system	Spool valve
Orbital gearwheel set type	Gerotor
Motor type	Standard
Brake Release Port Dimension	n/a
Painted	Yes
Dust seal	Standard
Front bearing type	Journal bearing
