Danfoss orbital motor quick selector Parts

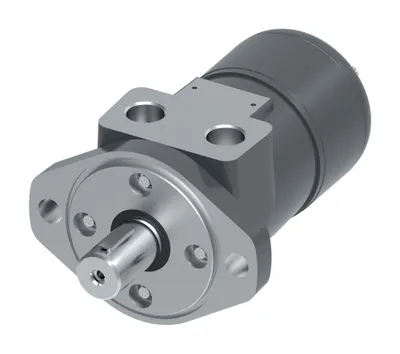

Danfoss

101-1602-009

MOTOR-ORBITAL,H SERIES 295 [17.9], MH0179AA01AF0200000000000AA00J

Danfoss

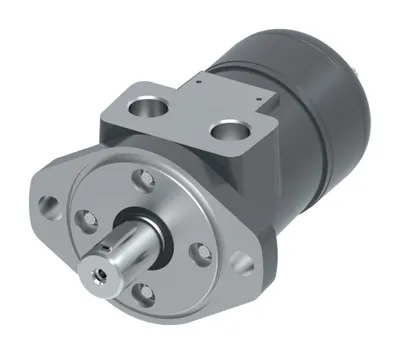

101-1601-009

MOTOR-ORBITAL,H SERIES 230 [14.1], MH0141AA01AF0200000000000AA00J

Danfoss

101-1600-009

MOTOR-ORBITAL,H SERIES 185 [11.3], MH0113AA01AF0200000000000AA00J

Danfoss

101-1599-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097AA01AF0200000000000AA00J

Danfoss

101-1598-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059AA01AF0200000000000AA00J

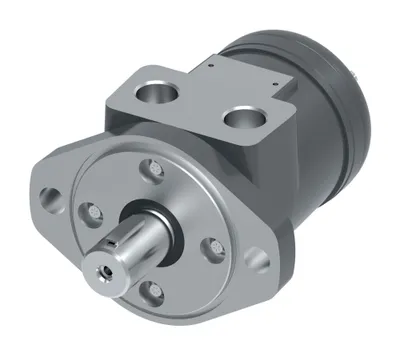

Danfoss

101-1597-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045AA01AF0200000000000AA00J

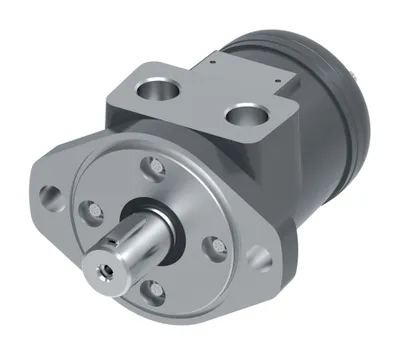

Danfoss

101-1596-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028AA01AF0200000000000AA00J

Danfoss

101-1582-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059FA01AF0200000000000AA00J

Danfoss

101-1581-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045FA01AF0200000000000AA00J

Danfoss

101-1580-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028FA01AF0200000000000AA00J

Danfoss

101-1566-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059AA02AC0100000000000AA00J

Danfoss

101-1564-009

MOTOR-ORBITAL,H SERIES 370 [22.6], MH0226BA01AA0000000000AB0AA00J

Danfoss

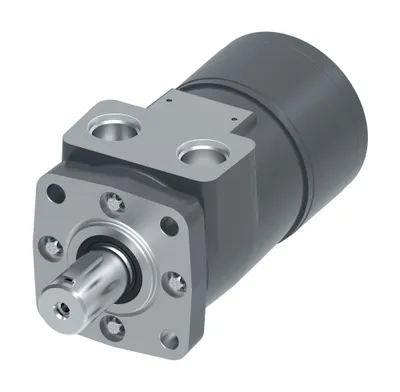

101-1563-009

MOTOR-ORBITAL,H SERIES 295 [17.9], MH0179BA01AA0000000000AB0AA00J

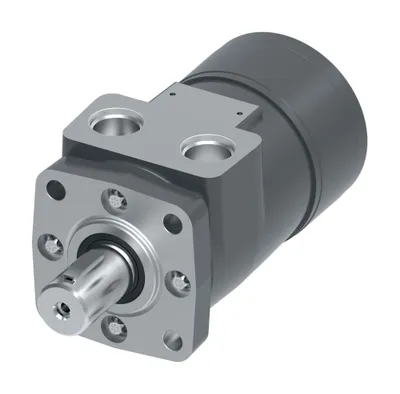

Danfoss

101-1562-009

MOTOR-ORBITAL,H SERIES 230 [14.1], MH0141BA01AA0000000000AB0AA00J

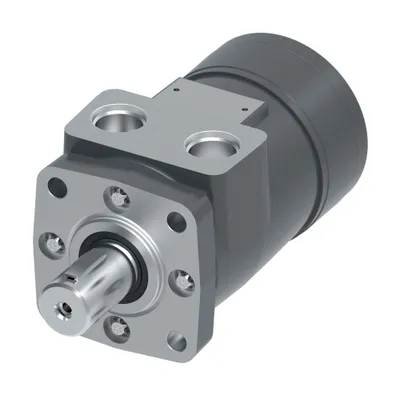

Danfoss

101-1561-009

MOTOR-ORBITAL,H SERIES 185 [11.3], MH0113BA01AA0000000000AB0AA00J

Danfoss

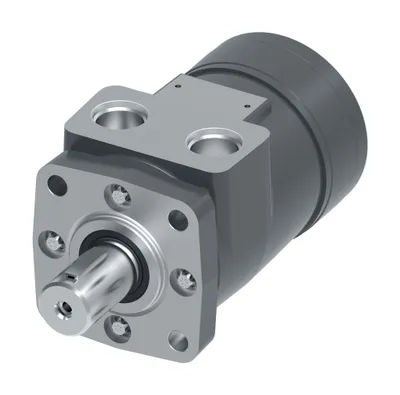

101-1560-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097BA01AA0000000000AB0AA00J

Danfoss

101-1558-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045BA01AA0000000000AB0AA00J

Danfoss

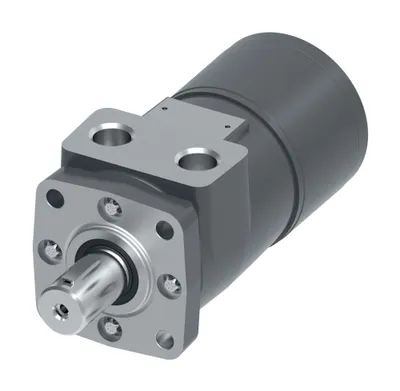

101-1556-009

MOTOR-ORBITAL,H SERIES 370 [22.6], MH0226BA01AB0000000000AB0AA00J

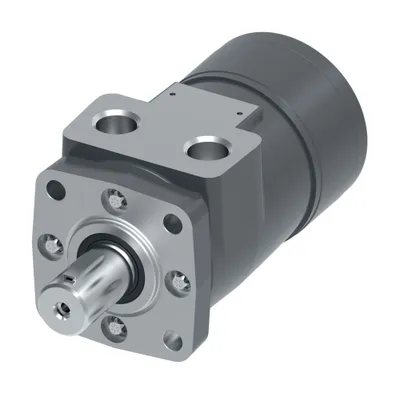

Danfoss

101-1554-009

MOTOR-ORBITAL,H SERIES 230 [14.1], MH0141BA01AB0000000000AB0AA00J

Danfoss

101-1550-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045BA01AB0000000000AB0AA00J

Danfoss

101-1549-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028BA01AB0000000000AB0AA00J

Danfoss

101-1548-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097AA02AC0100000000000AA00J

Danfoss

101-1545-009

MOTOR-ORBITAL,H SERIES 185 [11.3], MH0113AA01AE0000000000000AA00J

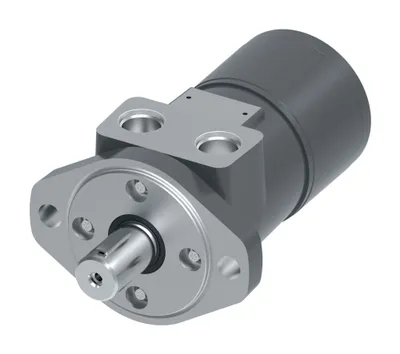

Danfoss

101-1543-009

MOTOR-ORBITAL,H SERIES 370 [22.6], MH0226JA01AE0000000000000AA00J

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port thread type	Drain Port Dimension
101-1602-009	MH0179AA01AF0200000000000AA00J	295	294 [17.9]	BSP	G 1/4
101-1601-009	MH0141AA01AF0200000000000AA00J	230	231 [14.1]	BSP	G 1/4
101-1600-009	MH0113AA01AF0200000000000AA00J	185	185 [11.3]	BSP	G 1/4
101-1599-009	MH0097AA01AF0200000000000AA00J	160	159 [9.7]	BSP	G 1/4
101-1598-009	MH0059AA01AF0200000000000AA00J	95	96 [5.9]	BSP	G 1/4
101-1597-009	MH0045AA01AF0200000000000AA00J	75	74 [4.5]	BSP	G 1/4
101-1596-009	MH0028AA01AF0200000000000AA00J	45	46 [2.8]	BSP	G 1/4
101-1582-009	MH0059FA01AF0200000000000AA00J	95	96 [5.9]	BSP	G 1/4
101-1581-009	MH0045FA01AF0200000000000AA00J	75	74 [4.5]	BSP	G 1/4
101-1580-009	MH0028FA01AF0200000000000AA00J	45	46 [2.8]	BSP	G 1/4
101-1566-009	MH0059AA02AC0100000000000AA00J	95	96 [5.9]	Manifold	7/16 - 20 UNF-2B SAE O-Ring port
101-1564-009	MH0226BA01AA0000000000AB0AA00J	370	370 [22.6]	UN / UNF	None
101-1563-009	MH0179BA01AA0000000000AB0AA00J	295	294 [17.9]	UN / UNF	None
101-1562-009	MH0141BA01AA0000000000AB0AA00J	230	231 [14.1]	UN / UNF	None
101-1561-009	MH0113BA01AA0000000000AB0AA00J	185	185 [11.3]	UN / UNF	None
101-1560-009	MH0097BA01AA0000000000AB0AA00J	160	159 [9.7]	UN / UNF	None
101-1558-009	MH0045BA01AA0000000000AB0AA00J	75	74 [4.5]	UN / UNF	None
101-1556-009	MH0226BA01AB0000000000AB0AA00J	370	370 [22.6]	NPT / NPTF	None
101-1554-009	MH0141BA01AB0000000000AB0AA00J	230	231 [14.1]	NPT / NPTF	None
101-1550-009	MH0045BA01AB0000000000AB0AA00J	75	74 [4.5]	NPT / NPTF	None
101-1549-009	MH0028BA01AB0000000000AB0AA00J	45	46 [2.8]	NPT / NPTF	None
101-1548-009	MH0097AA02AC0100000000000AA00J	160	159 [9.7]	Manifold	7/16 - 20 UNF-2B SAE O-Ring port
101-1545-009	MH0113AA01AE0000000000000AA00J	185	185 [11.3]	No data available	None
101-1543-009	MH0226JA01AE0000000000000AA00J	370	370 [22.6]	No data available	None

Common to all listed parts

Motor Series	H Series
Valve system	Spool valve
Orbital gearwheel set type	Gerotor
Motor type	Standard
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Primer, Black, Low gloss
Special Features Assembly	Standard
