Danfoss orbital motor quick selector Parts

Danfoss

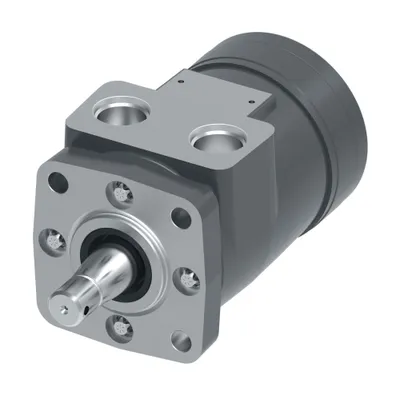

101-2256-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073BA18AA0000000000000AA00J

Danfoss

101-2255-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097MA49AF0200000000000AA00J

Danfoss

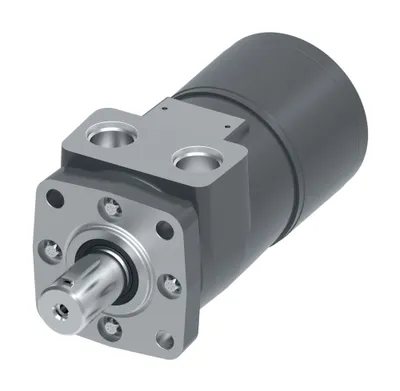

101-2248-009

MOTOR-ORBITAL,H SERIES 740 [45.1], MH0451BA01AA00A0000000000AA00J

Danfoss

101-2242-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028AA24AA0000000000000AA00J

Danfoss

101-2241-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022AA24AA00A0000000000AA00J

Danfoss

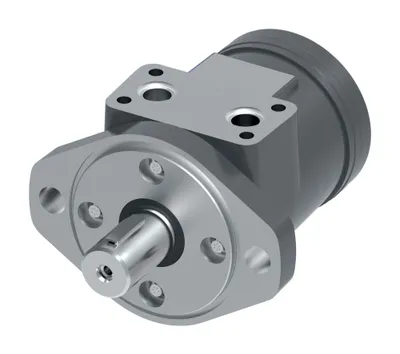

101-2240-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022AA01AC03A0000000000AA00J

Danfoss

101-2237-009

MOTOR-ORBITAL,H SERIES 60 [3.5], MH0035AA01AA01A0000000000AA00J

Danfoss

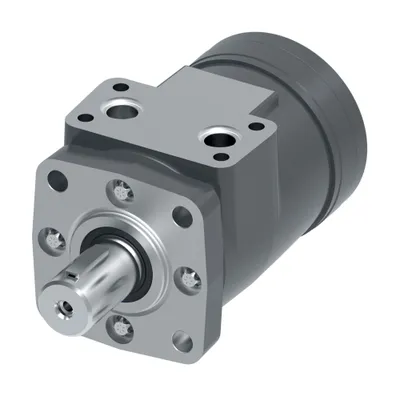

101-2223-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059BN01AC000N000000SS0AD00J

Danfoss

101-2180-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059BA01AA0100000000000AA00J

Danfoss

101-2176-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059AA01AA0100000000000AA00J

Danfoss

101-2175-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073AA01AA0100000000000AA00J

Danfoss

101-2174-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097AA24AA0000000000000AA00J

Danfoss

101-2172-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028BA01AA00A0000000000AA00J

Danfoss

101-2171-009

MOTOR-ORBITAL,H SERIES 145 [8.9], MH0089AA01AA0100000000000AA00J

Danfoss

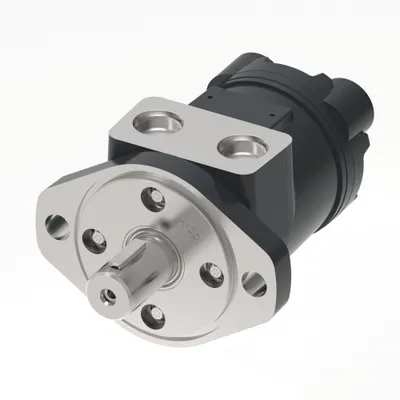

101-2170-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059AA01EB0000000000AB0AA00J

Danfoss

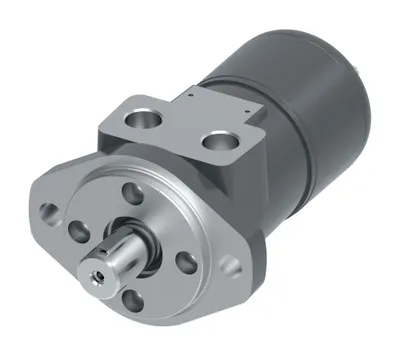

101-2164-009

MOTOR-ORBITAL,H SERIES 370 [22.6], MH0226MA39AF0200000000000AA00J

Danfoss

101-2163-009

MOTOR-ORBITAL,H SERIES 230 [14.1], MH0141MA39AF0200000000000AA00J

Danfoss

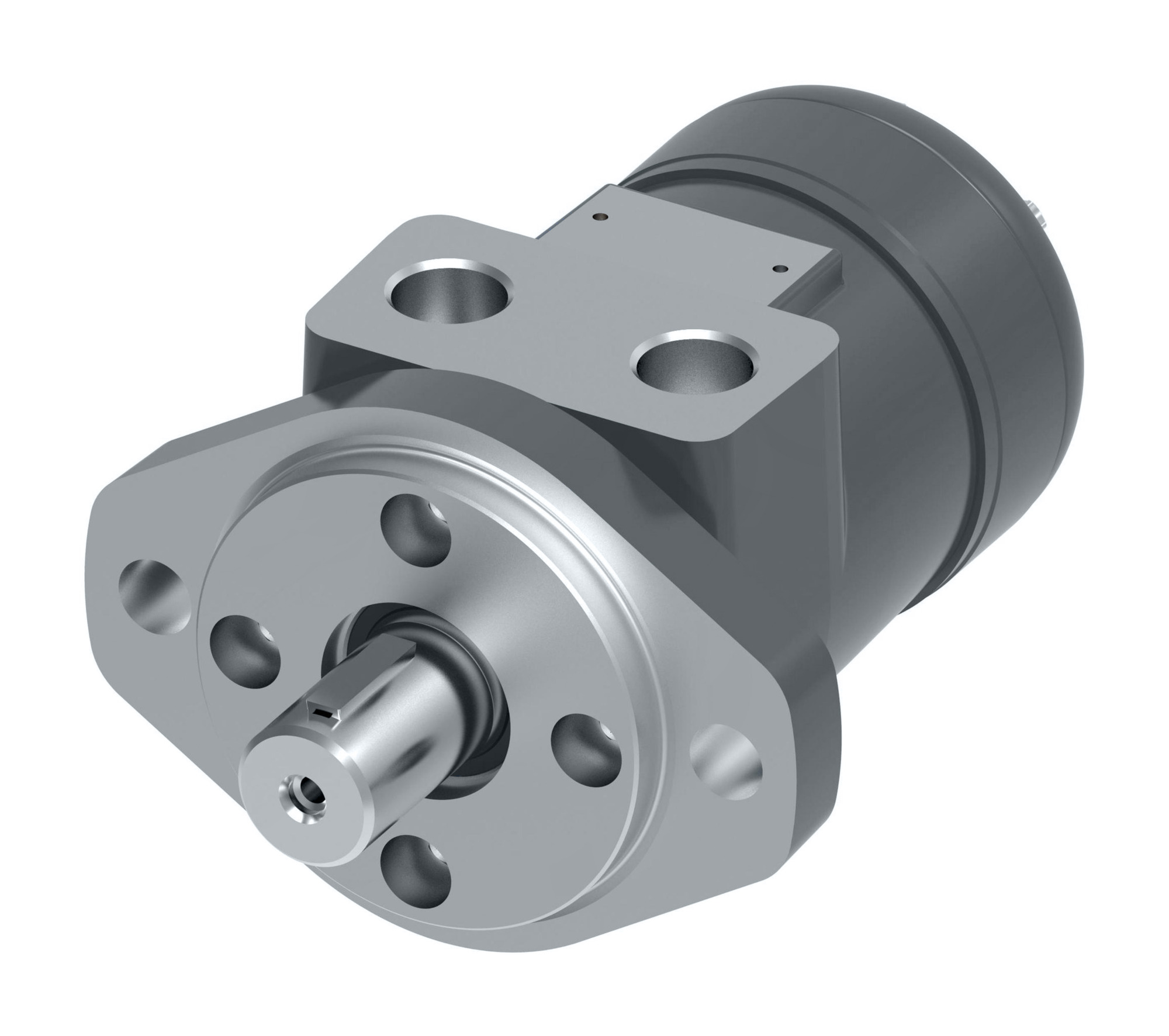

101-2162-009

MOTOR-ORBITAL,H SERIES 145 [8.9], MH0089MA39AF0200000000000AA00J

Danfoss

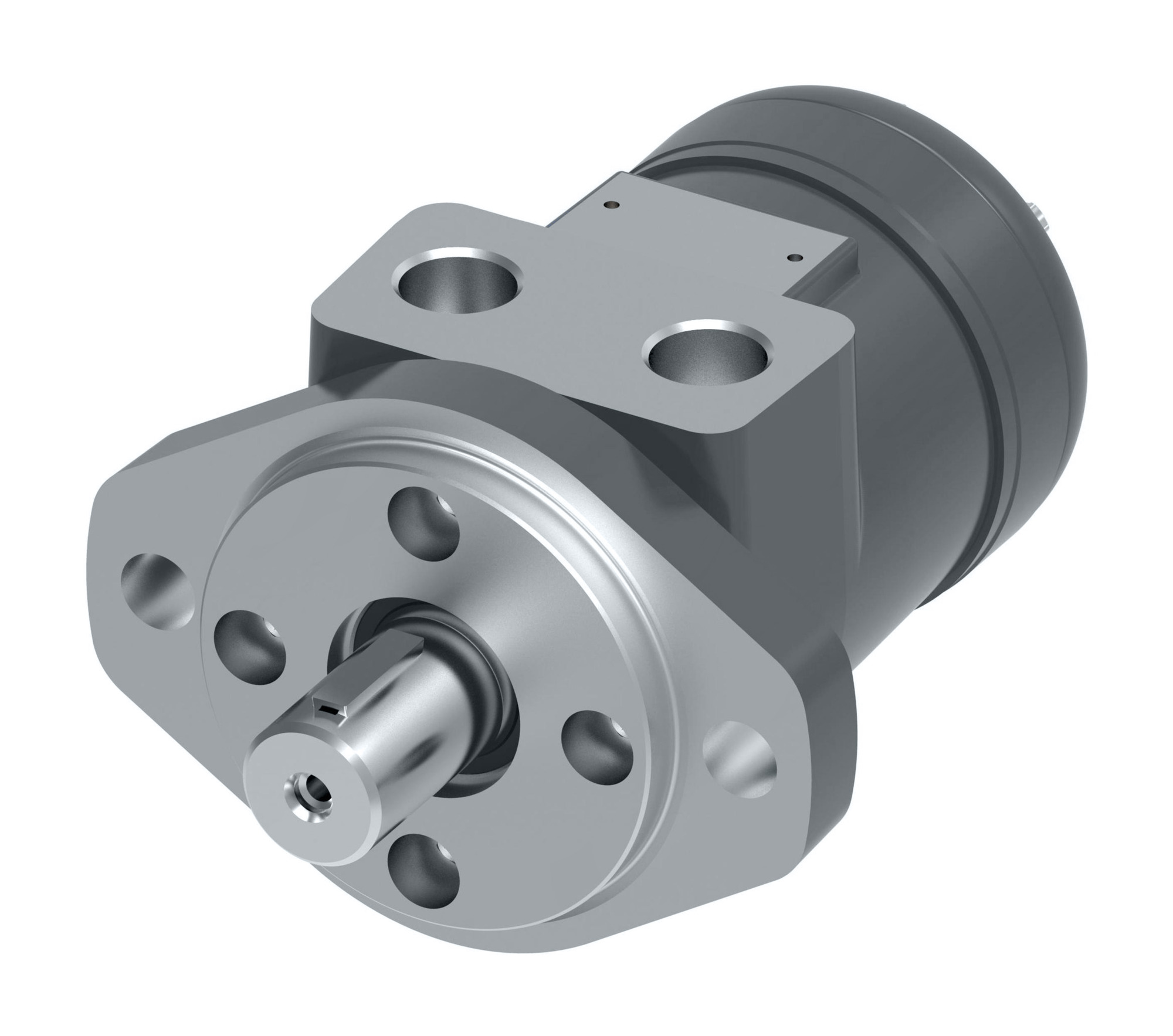

101-2161-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073MA39AF0200000000000AA00J

Danfoss

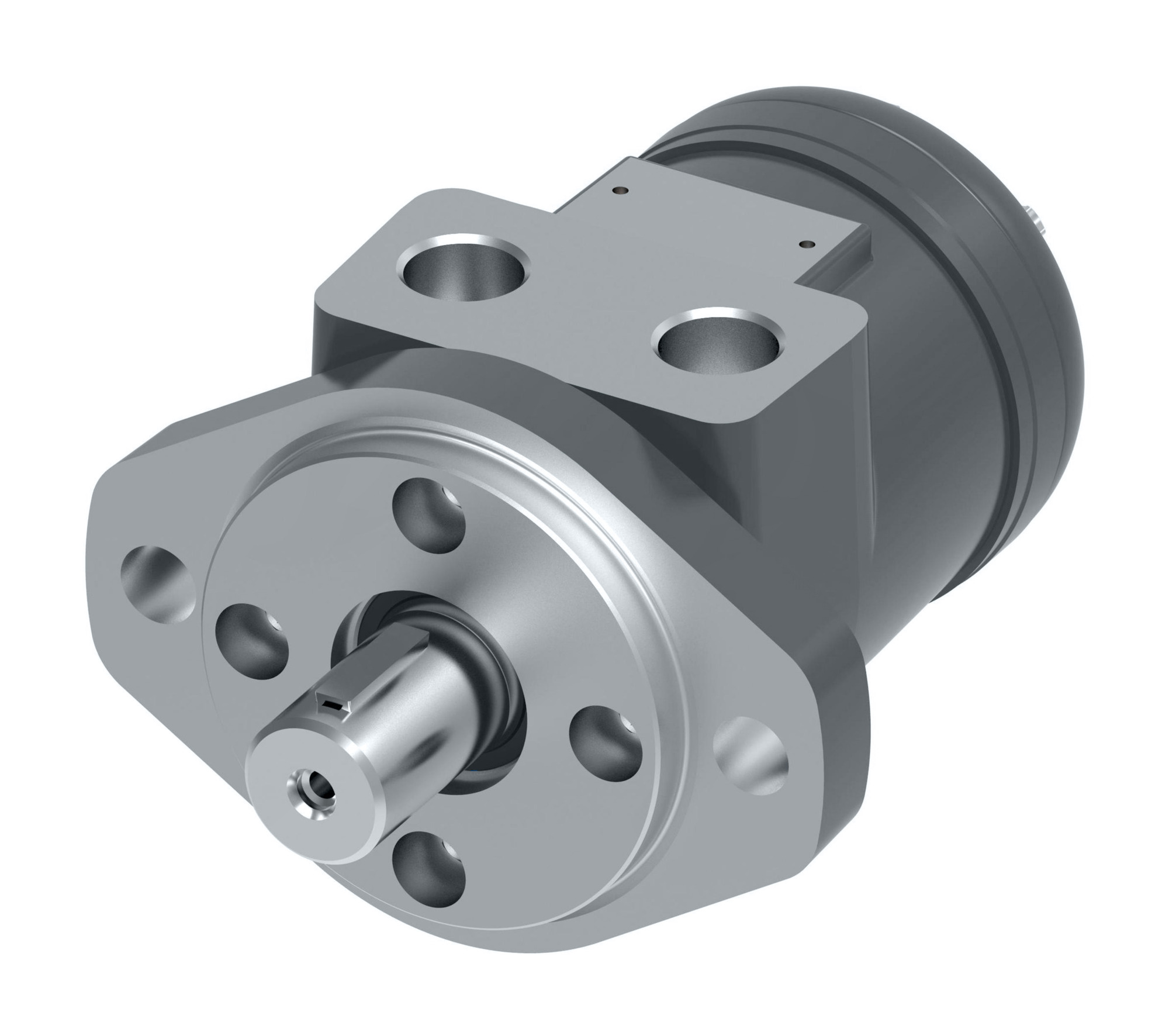

101-2160-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045MA39AF0200000000000AA00J

Danfoss

101-2159-009

MOTOR-ORBITAL,H SERIES 60 [3.5], MH0035MA39AF02A0000000000AA00J

Danfoss

101-2158-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022MA39AF02A0000000000AA00J

Danfoss

101-2155-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028AA01AF0000000000000AA00J

Danfoss

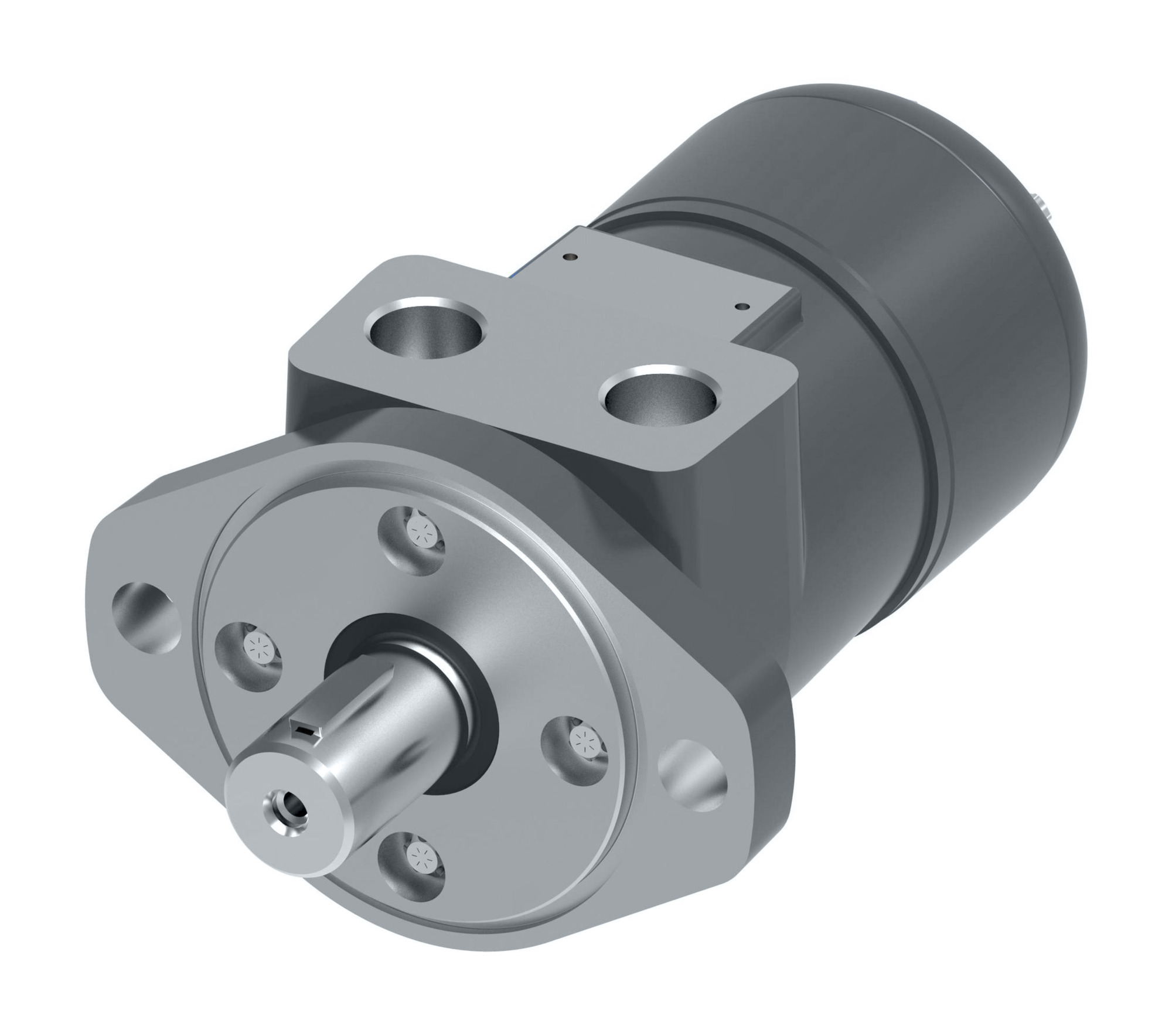

101-2152-009

MOTOR-ORBITAL,H SERIES 295 [17.9], MH0179AA24AF02A0000000000AA00J

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Drain Port Dimension
101-2256-009	MH0073BA18AA0000000000000AA00J	120	120 [7.3]	Woodruff key	None
101-2255-009	MH0097MA49AF0200000000000AA00J	160	159 [9.7]	n/a	G 1/4
101-2248-009	MH0451BA01AA00A0000000000AA00J	740	739 [45.1]	Woodruff key	None
101-2242-009	MH0028AA24AA0000000000000AA00J	45	46 [2.8]	Square key, 8 x 30 mm	None
101-2241-009	MH0022AA24AA00A0000000000AA00J	35	36 [2.2]	Square key, 8 x 30 mm	None
101-2240-009	MH0022AA01AC03A0000000000AA00J	35	36 [2.2]	Woodruff key	Manifold
101-2237-009	MH0035AA01AA01A0000000000AA00J	60	58 [3.5]	Woodruff key	7/16 - 20 UNF-2B SAE O-Ring port
101-2223-009	MH0059BN01AC000N000000SS0AD00J	95	96 [5.9]	Woodruff key	None
101-2180-009	MH0059BA01AA0100000000000AA00J	95	96 [5.9]	Woodruff key	7/16 - 20 UNF-2B SAE O-Ring port
101-2176-009	MH0059AA01AA0100000000000AA00J	95	96 [5.9]	Woodruff key	7/16 - 20 UNF-2B SAE O-Ring port
101-2175-009	MH0073AA01AA0100000000000AA00J	120	120 [7.3]	Woodruff key	7/16 - 20 UNF-2B SAE O-Ring port
101-2174-009	MH0097AA24AA0000000000000AA00J	160	159 [9.7]	Square key, 8 x 30 mm	None
101-2172-009	MH0028BA01AA00A0000000000AA00J	45	46 [2.8]	Woodruff key	None
101-2171-009	MH0089AA01AA0100000000000AA00J	145	146 [8.9]	Woodruff key	7/16 - 20 UNF-2B SAE O-Ring port
101-2170-009	MH0059AA01EB0000000000AB0AA00J	95	96 [5.9]	Woodruff key	None
101-2164-009	MH0226MA39AF0200000000000AA00J	370	370 [22.6]	Square key	G 1/4
101-2163-009	MH0141MA39AF0200000000000AA00J	230	231 [14.1]	Square key	G 1/4
101-2162-009	MH0089MA39AF0200000000000AA00J	145	146 [8.9]	Square key	G 1/4
101-2161-009	MH0073MA39AF0200000000000AA00J	120	120 [7.3]	Square key	G 1/4
101-2160-009	MH0045MA39AF0200000000000AA00J	75	74 [4.5]	Square key	G 1/4
101-2159-009	MH0035MA39AF02A0000000000AA00J	60	58 [3.5]	Square key	G 1/4
101-2158-009	MH0022MA39AF02A0000000000AA00J	35	36 [2.2]	Square key	G 1/4
101-2155-009	MH0028AA01AF0000000000000AA00J	45	46 [2.8]	Woodruff key	None
101-2152-009	MH0179AA24AF02A0000000000AA00J	295	294 [17.9]	Square key, 8 x 30 mm	G 1/4

Common to all listed parts

Motor Series	H Series
Valve system	Spool valve
Orbital gearwheel set type	Gerotor
Motor type	Standard
Brake Release Port Dimension	n/a
Painted	Yes
Special Features Assembly	Standard
Dust seal	Standard
