Danfoss orbital motor quick selector Parts

Danfoss

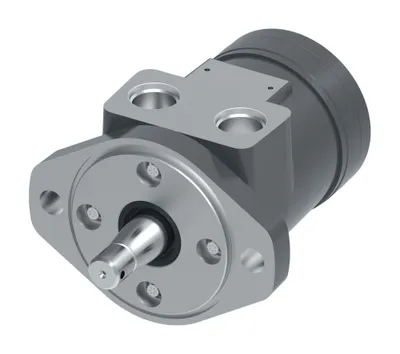

101-2572-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059TA18AA00A0000000001AA00J

Danfoss

101-2566-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022BA01AA00A0070000000AA00J

Danfoss

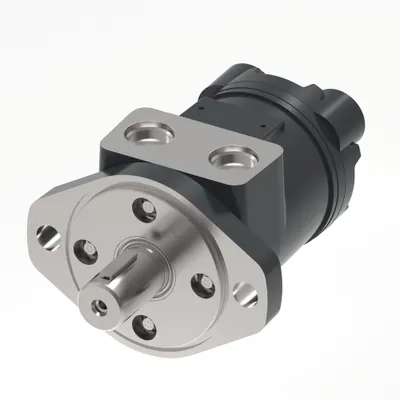

101-2559-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097MA39EC0200000000000AA00J

Danfoss

101-2556-009

MOTOR-ORBITAL,H SERIES 230 [14.1], MH0141BA01AB000000AG00000AA00J

Danfoss

101-2552-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059AA01AA01A0000000000AA00J

Danfoss

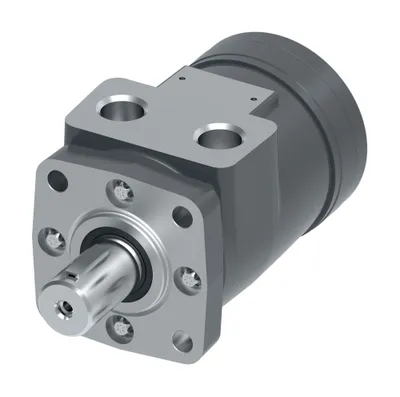

101-2548-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059BA01AB000N0000000000000J

Danfoss

101-2546-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059FA01AD1400000000000AA00J

Danfoss

101-2545-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045FA01AD1400000000000AA00J

Danfoss

101-2539-009

MOTOR-ORBITAL,H SERIES 185 [11.3], MH0113AA01AA0100000000000AA00J

Danfoss

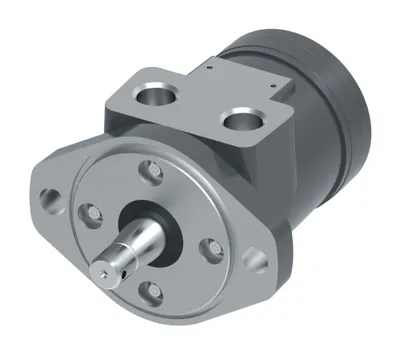

101-2531-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045AA18AB00000000000000000J

Danfoss

101-2529-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059AA24AA0000000000000AA00J

Danfoss

101-2520-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059BA01AB000000AA00000AA00J

Danfoss

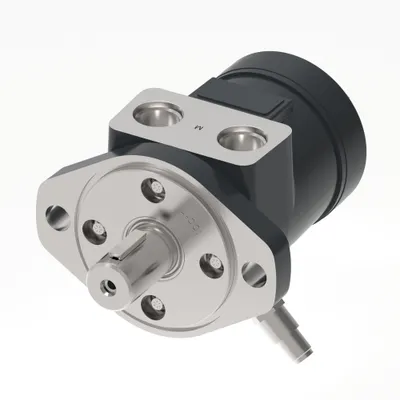

101-2517-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028AA01AA000000AE00000AA00J

Danfoss

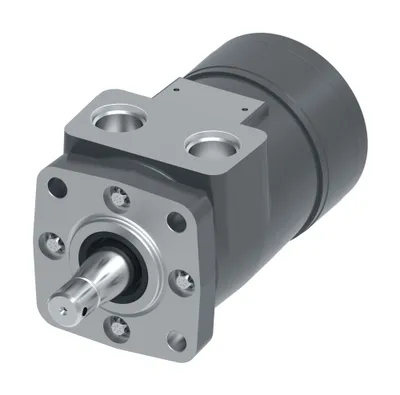

101-2505-009

MOTOR-ORBITAL,H SERIES 185 [11.3], MH0113BA18AA0000000000000AA00J

Danfoss

101-2498-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028FA24AF0000000000000AA00J

Danfoss

101-2493-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073AA02AA0000000000002AA00J

Danfoss

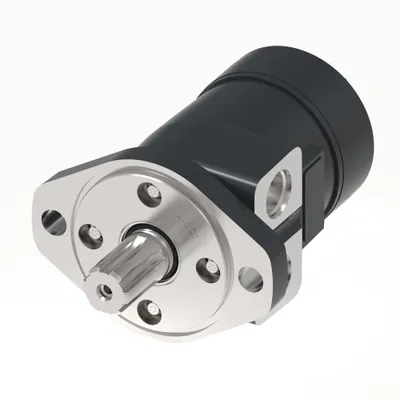

101-2492-009

MOTOR-ORBITAL,H SERIES 145 [8.9], MH0089AA02AA0000000000002AA00J

Danfoss

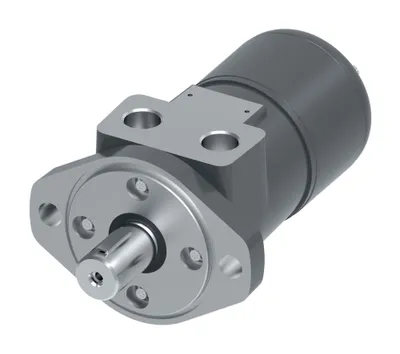

101-2487-009

MOTOR-ORBITAL,H SERIES 370 [22.6], MH0226AA24AF02A0000000000AA00J

Danfoss

101-2483-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059AA01AA000N000000000AA00J

Danfoss

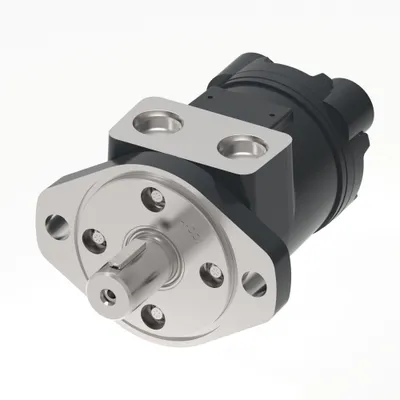

101-2476-009

MOTOR-ORBITAL,H SERIES 295 [17.9], MH0179AA01EB0000000000000AA00J

Danfoss

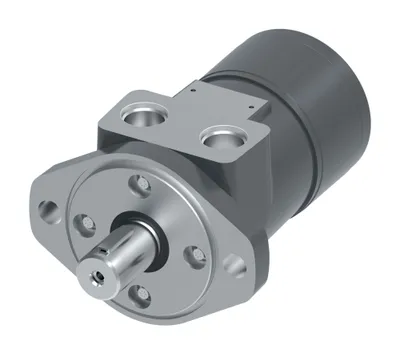

101-2474-009

MOTOR-ORBITAL,H SERIES 295 [17.9], MH0179AA01AA000N0000000000000J

Danfoss

101-2470-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097AA01AB000000AE00000AA00J

Danfoss

101-2469-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059AA01AA000000AE00000AA00J

Danfoss

101-2466-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059AA01AB000000AG00000AA00J

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Main port thread type
101-2572-009	MH0059TA18AA00A0000000001AA00J	95	96 [5.9]	Woodruff key	UN / UNF
101-2566-009	MH0022BA01AA00A0070000000AA00J	35	36 [2.2]	Woodruff key	UN / UNF
101-2559-009	MH0097MA39EC0200000000000AA00J	160	159 [9.7]	Square key	BSP
101-2556-009	MH0141BA01AB000000AG00000AA00J	230	231 [14.1]	Woodruff key	NPT / NPTF
101-2552-009	MH0059AA01AA01A0000000000AA00J	95	96 [5.9]	Woodruff key	UN / UNF
101-2548-009	MH0059BA01AB000N0000000000000J	95	96 [5.9]	Woodruff key	NPT / NPTF
101-2546-009	MH0059FA01AD1400000000000AA00J	95	96 [5.9]	Woodruff key	Manifold
101-2545-009	MH0045FA01AD1400000000000AA00J	75	74 [4.5]	Woodruff key	Manifold
101-2539-009	MH0113AA01AA0100000000000AA00J	185	185 [11.3]	Woodruff key	UN / UNF
101-2531-009	MH0045AA18AB00000000000000000J	75	74 [4.5]	Woodruff key	NPT / NPTF
101-2529-009	MH0059AA24AA0000000000000AA00J	95	96 [5.9]	Square key, 8 x 30 mm	UN / UNF
101-2520-009	MH0059BA01AB000000AA00000AA00J	95	96 [5.9]	Woodruff key	NPT / NPTF
101-2517-009	MH0028AA01AA000000AE00000AA00J	45	46 [2.8]	Woodruff key	UN / UNF
101-2505-009	MH0113BA18AA0000000000000AA00J	185	185 [11.3]	Woodruff key	UN / UNF
101-2498-009	MH0028FA24AF0000000000000AA00J	45	46 [2.8]	Square key, 8 x 30 mm	BSP
101-2493-009	MH0073AA02AA0000000000002AA00J	120	120 [7.3]	n/a	UN / UNF
101-2492-009	MH0089AA02AA0000000000002AA00J	145	146 [8.9]	n/a	UN / UNF
101-2487-009	MH0226AA24AF02A0000000000AA00J	370	370 [22.6]	Square key, 8 x 30 mm	BSP
101-2483-009	MH0059AA01AA000N000000000AA00J	95	96 [5.9]	Woodruff key	UN / UNF
101-2476-009	MH0179AA01EB0000000000000AA00J	295	294 [17.9]	Woodruff key	UN / UNF
101-2474-009	MH0179AA01AA000N0000000000000J	295	294 [17.9]	Woodruff key	UN / UNF
101-2470-009	MH0097AA01AB000000AE00000AA00J	160	159 [9.7]	Woodruff key	NPT / NPTF
101-2469-009	MH0059AA01AA000000AE00000AA00J	95	96 [5.9]	Woodruff key	UN / UNF
101-2466-009	MH0059AA01AB000000AG00000AA00J	95	96 [5.9]	Woodruff key	NPT / NPTF

Common to all listed parts

Motor Series	H Series
Valve system	Spool valve
Orbital gearwheel set type	Gerotor
Motor type	Standard
Motor function	Standard
Brake Release Port Dimension	n/a
Dust seal	Standard
Front bearing type	Journal bearing
