Danfoss orbital motor quick selector Parts

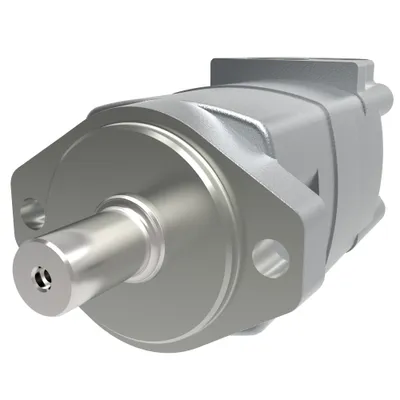

Danfoss

104-3497-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AC15AA0100010AD0000AAAAF

Danfoss

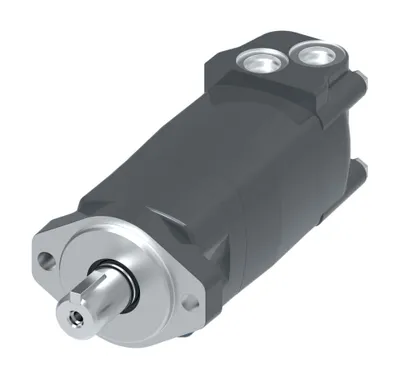

104-3492-006

MOTOR-ORBITAL,2000 SERIES 395 [24], M02240AC02AA0100010AG0000AAAAF

Danfoss

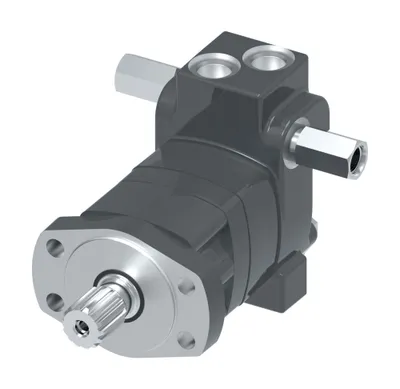

104-3490-006

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AJ04AA0103610000000ABAAF

Danfoss

104-3484-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AW43AG0200010000000ABAAF

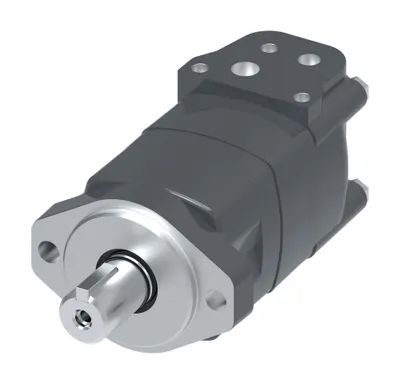

Danfoss

104-3475-006

MOTOR-ORBITAL,2000 SERIES 130 [8], M02080AC02AB0100010000000ABAAF

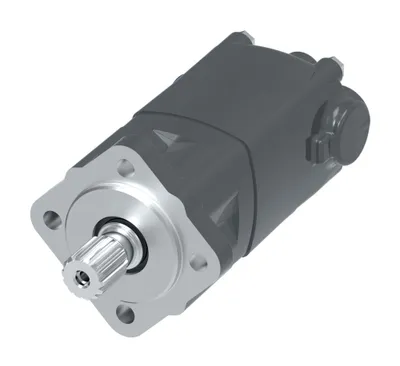

Danfoss

104-3473-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AH04AD0100010000000AAAAF

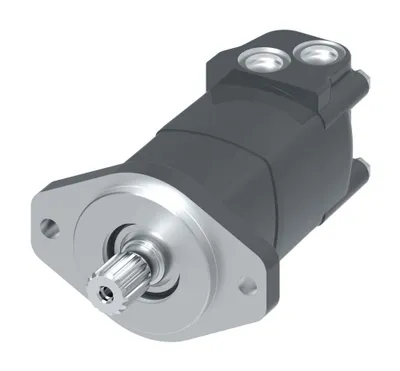

Danfoss

104-3472-006

MOTOR-ORBITAL,2000 SERIES 490 [29.8], M02298AF04AA0100010000000ABAAF

Danfoss

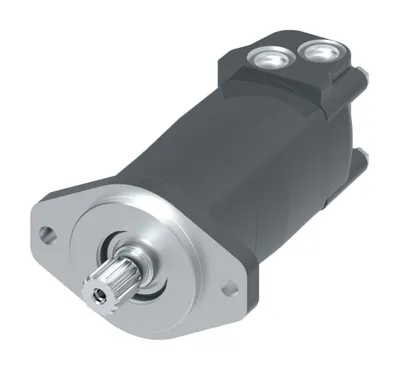

104-3471-006

MOTOR-ORBITAL,2000 SERIES 395 [24.0], M02240AF04AA0100010000000ABAAF

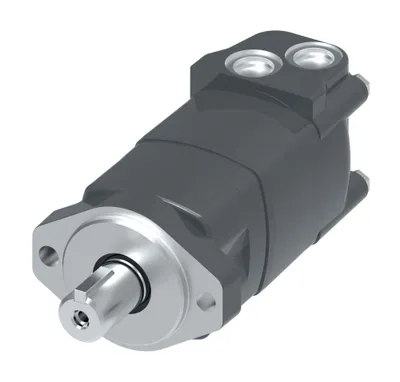

Danfoss

104-3458-006

MOTOR-ORBITAL,2000 SERIES 490 [29.8], M02298AC02AA0100010000000ABAAF

Danfoss

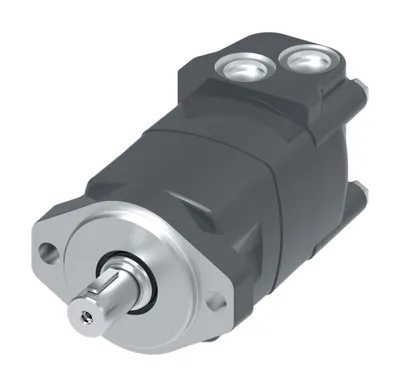

104-3457-006

MOTOR-ORBITAL,2000 SERIES 130 [8], M02080AC01AA0100010000000ABAAF

Danfoss

104-3455-006

MOTOR-ORBITAL,2000 SERIES 490 [29.8], M02298AC15AA0100010000000AAAAF

Danfoss

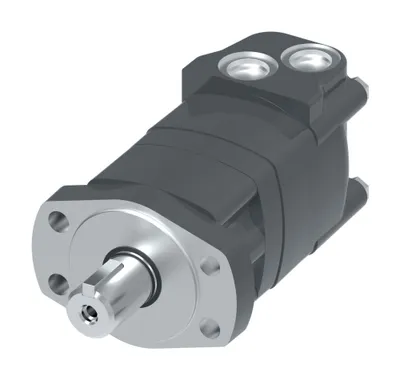

104-3453-006

MOTOR-ORBITAL,2000 SERIES 130 [8.0], M02080AJ02AA0100010000000AAAAF

Danfoss

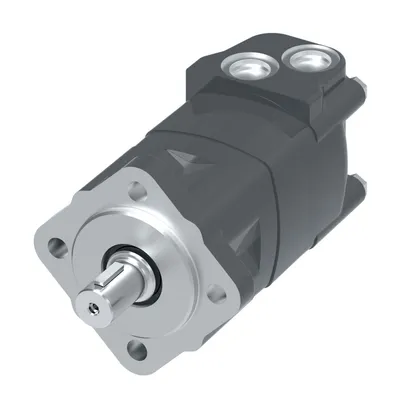

104-3445-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AH01AA0100010000000AAAAF

Danfoss

104-3442-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AC04AG0200010000000ABAAF

Danfoss

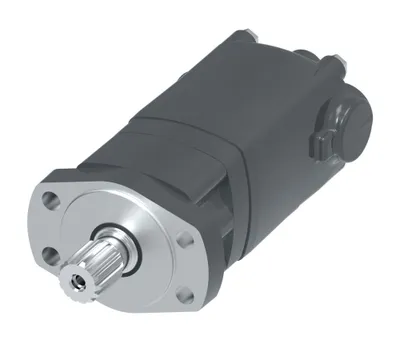

104-3440-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AJ04AD0100010000000ABAAF

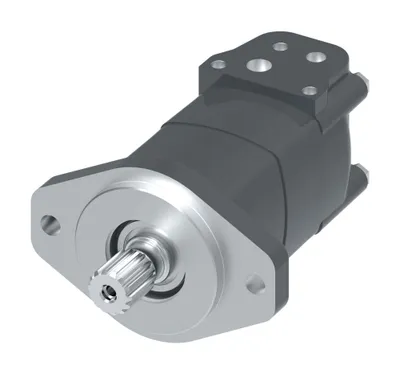

Danfoss

104-3434-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AF04AB0100010000000AAAAF

Danfoss

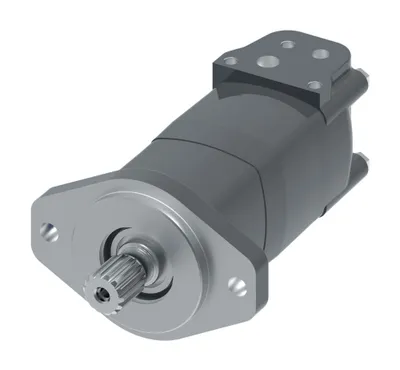

104-3433-006

MOTOR-ORBITAL,2000 SERIES 305 [18.7], M02187AF04AB0100010000000AAAAF

Danfoss

104-3431-006

MOTOR-ORBITAL,2000 SERIES 195 [11.9], M02119AC19AG0200010000000AAAAF

Danfoss

104-3430-006

MOTOR-ORBITAL,2000 SERIES 395 [24], M02240AH17AA0100010000000ACAAF

Danfoss

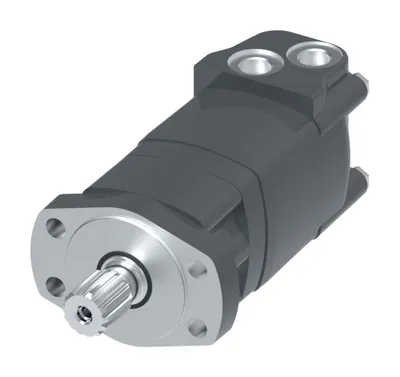

104-3428-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AJ04AG0200010000000AAAAF

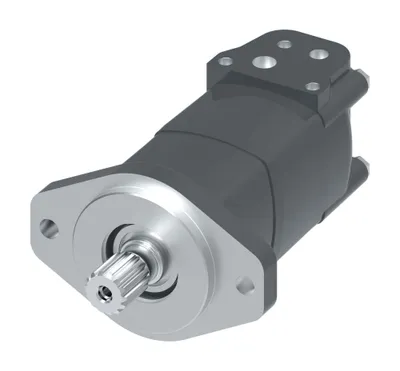

Danfoss

104-3410-006

MOTOR-ORBITAL,2000 SERIES 245 [14.9], M02149AF04AB0100010000000AAAAF

Danfoss

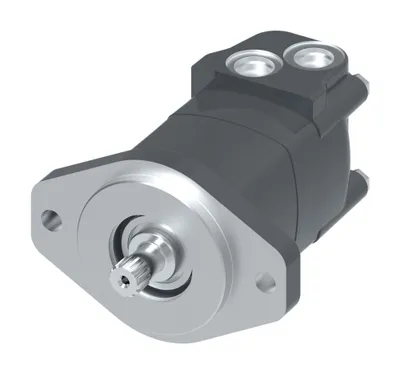

104-3408-006

MOTOR-ORBITAL,2000 SERIES 80 [4.9], M02049AF07AA0100010AG0000AAAAF

Danfoss

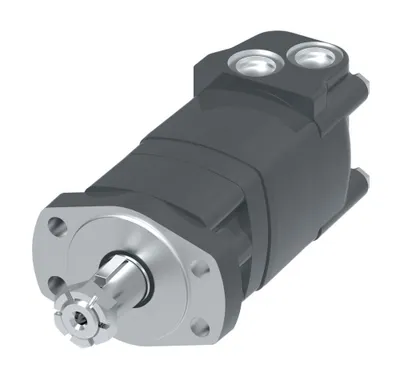

104-3407-006

MOTOR-ORBITAL,2000 SERIES 490 [29.8], M02298AJ03AA0100010000000AAAAF

Danfoss

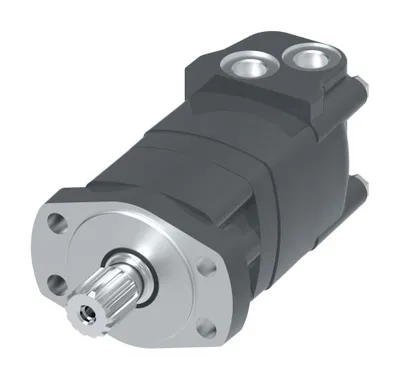

104-3399-006

MOTOR-ORBITAL,2000 SERIES 160 [9.6], M02096AJ04AG0200010000000ABAAF

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Shaft Key
104-3497-006	M02119AC15AA0100010AD0000AAAAF	195	194.8 [11.89]	2 Bolt - A	Woodruff key, 1/4 x 1 inch
104-3492-006	M02240AC02AA0100010AG0000AAAAF	395	393.8 [24.03]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-3490-006	M02062AJ04AA0103610000000ABAAF	100	101.6 [6.20]	4 Bolt - Magneto	n/a
104-3484-006	M02096AW43AG0200010000000ABAAF	160	158.1 [9.65]	4 Bolt - Square	Rectangular key, 8 x 7 x 32 mm
104-3475-006	M02080AC02AB0100010000000ABAAF	130	130.6 [7.97]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-3473-006	M02119AH04AD0100010000000AAAAF	195	194.8 [11.89]	4 Bolt - Square	n/a
104-3472-006	M02298AF04AA0100010000000ABAAF	490	489.0 [29.84]	2 Bolt - B	n/a
104-3471-006	M02240AF04AA0100010000000ABAAF	395	393.8 [24.03]	2 Bolt - B	n/a
104-3458-006	M02298AC02AA0100010000000ABAAF	490	489.0 [29.84]	2 Bolt - A	Square key, 5/16 x 5/16 x 1 1/4 inch
104-3457-006	M02080AC01AA0100010000000ABAAF	130	130.6 [7.97]	2 Bolt - A	Woodruff key, 1/4 x 1 inch
104-3455-006	M02298AC15AA0100010000000AAAAF	490	489.0 [29.84]	2 Bolt - A	Woodruff key, 1/4 x 1 inch
104-3453-006	M02080AJ02AA0100010000000AAAAF	130	130.6 [7.97]	4 Bolt - Magneto	Square key, 5/16 x 5/16 x 1 1/4 inch
104-3445-006	M02096AH01AA0100010000000AAAAF	160	158.1 [9.65]	4 Bolt - Square	Woodruff key, 1/4 x 1 inch
104-3442-006	M02119AC04AG0200010000000ABAAF	195	194.8 [11.89]	2 Bolt - A	n/a
104-3440-006	M02149AJ04AD0100010000000ABAAF	245	244.3 [14.91]	4 Bolt - Magneto	n/a
104-3434-006	M02096AF04AB0100010000000AAAAF	160	158.1 [9.65]	2 Bolt - B	n/a
104-3433-006	M02187AF04AB0100010000000AAAAF	305	306.6 [18.71]	2 Bolt - B	n/a
104-3431-006	M02119AC19AG0200010000000AAAAF	195	194.8 [11.89]	2 Bolt - A	Rectangular key, 8 x 7 x 32 mm
104-3430-006	M02240AH17AA0100010000000ACAAF	395	393.8 [24.03]	4 Bolt - Square	Square key, 5/16 x 5/16 x 1 1/4 inch
104-3428-006	M02149AJ04AG0200010000000AAAAF	245	244.3 [14.91]	4 Bolt - Magneto	n/a
104-3410-006	M02149AF04AB0100010000000AAAAF	245	244.3 [14.91]	2 Bolt - B	n/a
104-3408-006	M02049AF07AA0100010AG0000AAAAF	80	80.6 [4.92]	2 Bolt - B	n/a
104-3407-006	M02298AJ03AA0100010000000AAAAF	490	489.0 [29.84]	4 Bolt - Magneto	Square key, 5/16 x 1 inch
104-3399-006	M02096AJ04AG0200010000000ABAAF	160	158.1 [9.65]	4 Bolt - Magneto	n/a

Common to all listed parts

Motor Series	2000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Brake Release Port Dimension	n/a
Special Features Assembly	Standard
Dust seal	Standard
