Danfoss 104-3490-006

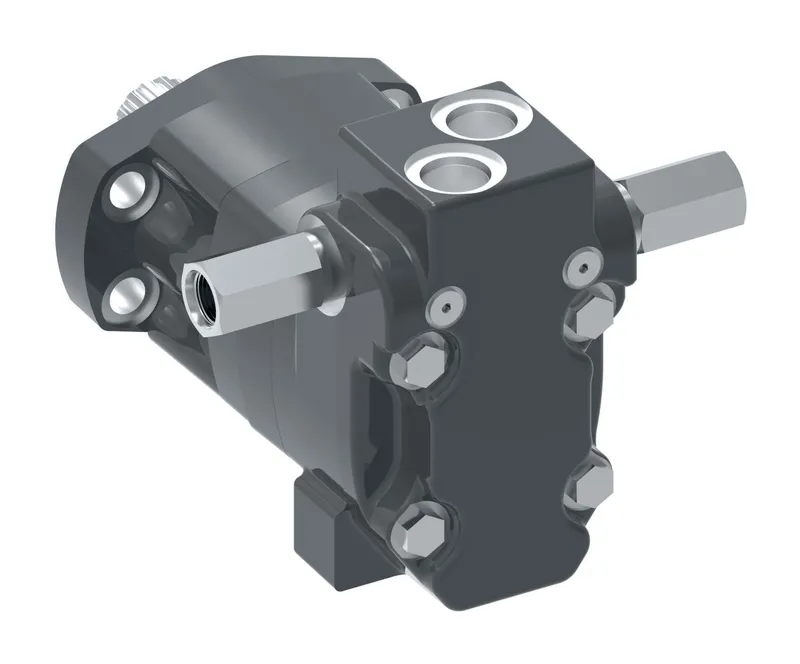

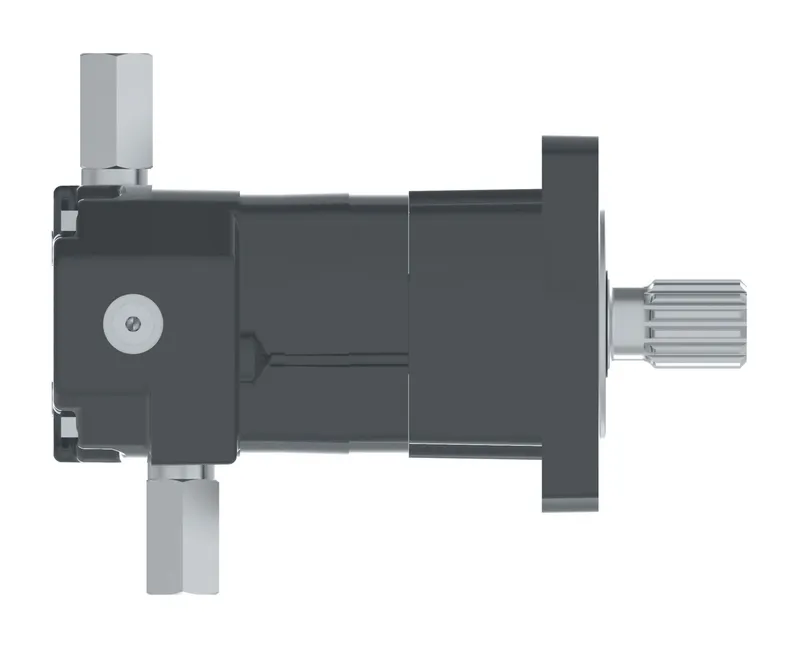

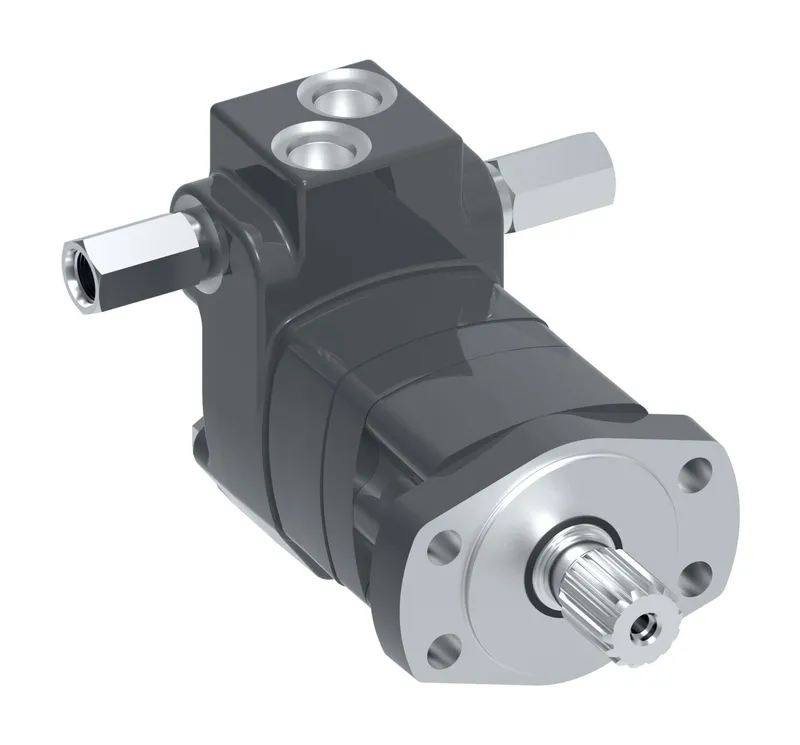

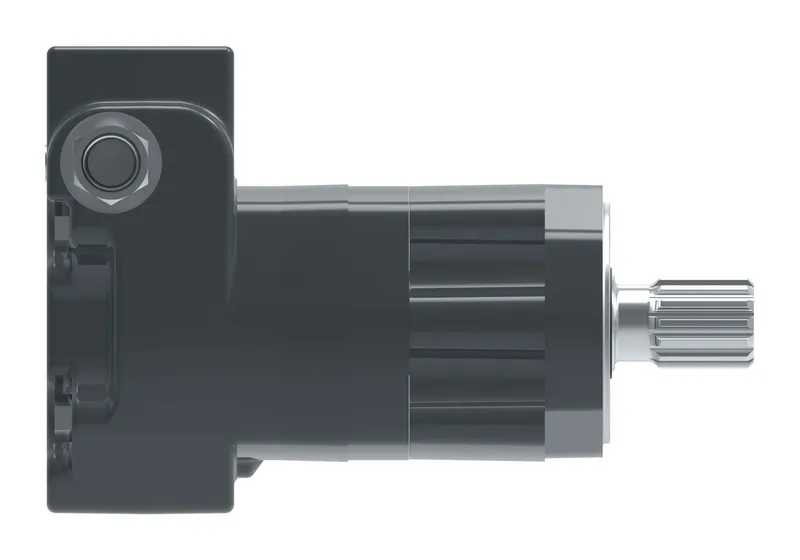

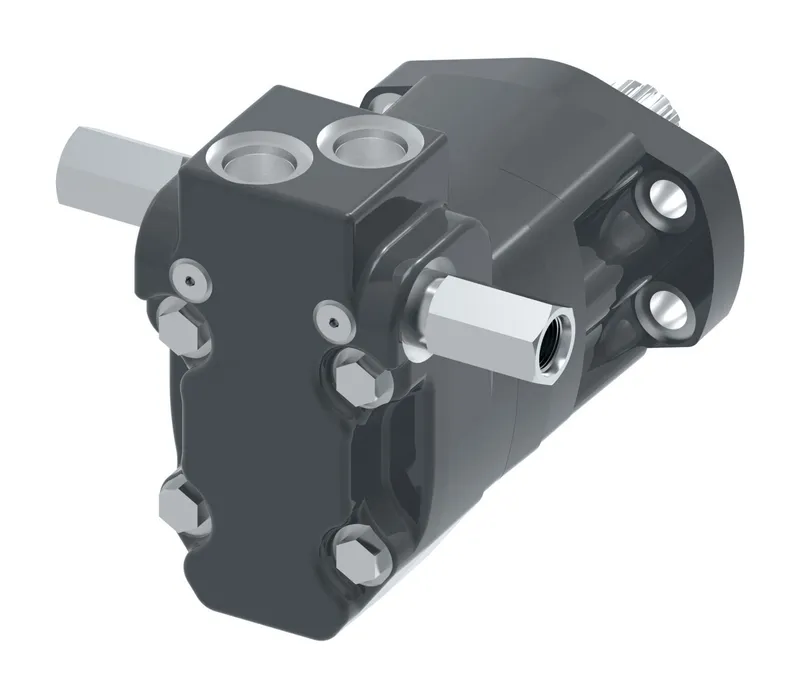

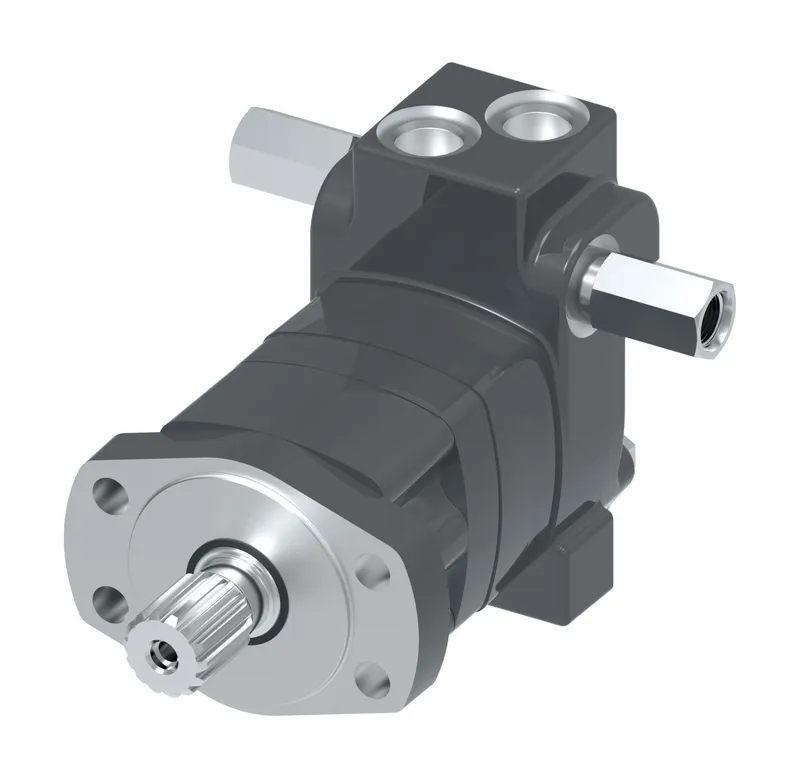

MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AJ04AA0103610000000ABAAF

MPN: 104-3490-006
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 104-3490-006?

Danfoss MOTOR-ORBITAL,2000 SERIES 100 [6.2], M02062AJ04AA0103610000000ABAAF, manufacturer part number 104-3490-006. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	M02062AJ04AA0103610000000ABAAF
Motor Series	2000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Mounting type	4 m p83 b106 h14 pl3
Motor size	100
Geometric displacement [cm3/r [in3/r]]	101.6 [6.20]
Motor type	Standard
Motor function	Standard
Mounting flange type	4 Bolt - Magneto
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	82.6 x 2.8, 106.4, 13.6 [3.25 x 0.11, 4.19, 0.54]
Shaft type	Splined
Shaft dimension	Dia. 1 1/4 inch, 14T, 3/8 - 16 UNC-2B thread in shaft end
Shaft Key	n/a
Main port thread type	UN / UNF
Main port style	Sideport - staggered
Main port dimension	7/8 - 14 UNF-2B SAE O-Ring port
Drain Port Dimension	7/16 - 20 UNF-2B SAE O-Ring port
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Primer, Black, Low gloss
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	9900404-000
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Standard
Check valve function	Yes
Hydraulic valve function	Cross over relief valve @ 206.8 bar [3000 psi]
Sensor	None
Packaging	Single pack
Name Tag	Danfoss name tag
Design code	06
Brand	Danfoss
Low pressure relief	None
Output shaft type	SPL 14T 12/24 3/8-16
Seal options	Standard
Series	2000 series
Sub brand	Char-Lynn
