Home / Motors / Mobile motors / Low-speed high-torque motors / Orbital motors / Danfoss orbital motor quick selector

Danfoss orbital motor quick selector Parts

Showing 3,433–3,456 of 11,614 parts
Danfoss 109-1184-006 – MOTOR-ORBITAL,4000 SERIES 110 [6.7], M04067AF11AC0300000000000AA00F
Danfoss
109-1184-006

MOTOR-ORBITAL,4000 SERIES 110 [6.7], M04067AF11AC0300000000000AA00F

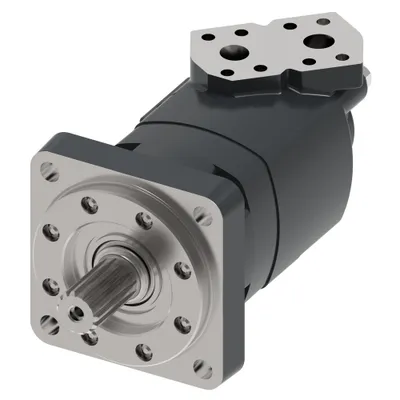

Danfoss 109-1173-006 – MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AE08AA01000000005000000F
Danfoss
109-1173-006

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AE08AA01000000005000000F

Danfoss 109-1158-006 – MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AF07AB02000000000000000F
Danfoss
109-1158-006

MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AF07AB02000000000000000F

Danfoss 109-1120-006 – MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AB03AB02000000000000000F
Danfoss
109-1120-006

MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AB03AB02000000000000000F

Danfoss 109-1119-006 – MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AB03AB02000000000000000F
Danfoss
109-1119-006

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AB03AB02000000000000000F

Danfoss 109-1118-006 – MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AB03AB02000000000000000F
Danfoss
109-1118-006

MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AB03AB02000000000000000F

Danfoss 109-1117-006 – MOTOR-ORBITAL,4000 SERIES 205 [12.5], M04125AB03AB02000000000000000F
Danfoss
109-1117-006

MOTOR-ORBITAL,4000 SERIES 205 [12.5], M04125AB03AB02000000000000000F

Danfoss 109-1116-006 – MOTOR-ORBITAL,4000 SERIES 160 [9.9], M04099AB03AB02000000000000000F
Danfoss
109-1116-006

MOTOR-ORBITAL,4000 SERIES 160 [9.9], M04099AB03AB02000000000000000F

Danfoss 109-1115-006 – MOTOR-ORBITAL,4000 SERIES 130 [7.9], M04080AB03AB02000000000000000F
Danfoss
109-1115-006

MOTOR-ORBITAL,4000 SERIES 130 [7.9], M04080AB03AB02000000000000000F

Danfoss 109-1114-006 – MOTOR-ORBITAL,4000 SERIES 110 [6.7], M04067AB03AB02000000000000000F
Danfoss
109-1114-006

MOTOR-ORBITAL,4000 SERIES 110 [6.7], M04067AB03AB02000000000000000F

Danfoss 109-1113-006 – MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AB02AB02000000000000000F
Danfoss
109-1113-006

MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AB02AB02000000000000000F

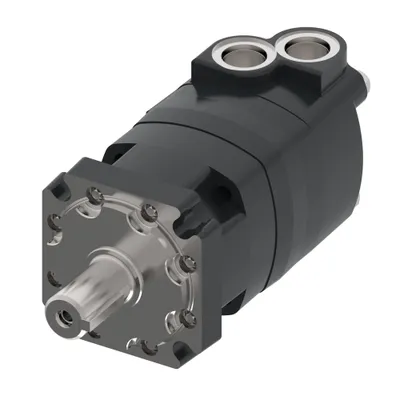

Danfoss 109-1112-006 – MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AB02AB02000000000000000F
Danfoss
109-1112-006

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AB02AB02000000000000000F

Danfoss 109-1111-006 – MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AB02AB02000000000000000F
Danfoss
109-1111-006

MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AB02AB02000000000000000F

Danfoss 109-1110-006 – MOTOR-ORBITAL,4000 SERIES 205 [12.5], M04125AB02AB02000000000000000F
Danfoss
109-1110-006

MOTOR-ORBITAL,4000 SERIES 205 [12.5], M04125AB02AB02000000000000000F

Danfoss 109-1109-006 – MOTOR-ORBITAL,4000 SERIES 160 [9.9], M04099AB02AB02000000000000000F
Danfoss
109-1109-006

MOTOR-ORBITAL,4000 SERIES 160 [9.9], M04099AB02AB02000000000000000F

Danfoss 109-1106-006 – MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AB01AB02000000000000000F
Danfoss
109-1106-006

MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AB01AB02000000000000000F

Danfoss 109-1105-006 – MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AB01AB02000000000000000F
Danfoss
109-1105-006

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AB01AB02000000000000000F

Danfoss 109-1104-006 – MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AB01AB02000000000000000F
Danfoss
109-1104-006

MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AB01AB02000000000000000F

Danfoss 109-1103-006 – MOTOR-ORBITAL,4000 SERIES 205 [12.5], M04125AB01AB02000000000000000F
Danfoss
109-1103-006

MOTOR-ORBITAL,4000 SERIES 205 [12.5], M04125AB01AB02000000000000000F

Danfoss 109-1102-006 – MOTOR-ORBITAL,4000 SERIES 160 [9.9], M04099AB01AB02000000000000000F
Danfoss
109-1102-006

MOTOR-ORBITAL,4000 SERIES 160 [9.9], M04099AB01AB02000000000000000F

Danfoss 109-1101-006 – MOTOR-ORBITAL,4000 SERIES 130 [7.9], M04080AB01AB02000000000000000F
Danfoss
109-1101-006

MOTOR-ORBITAL,4000 SERIES 130 [7.9], M04080AB01AB02000000000000000F

Danfoss 109-1100-006 – MOTOR-ORBITAL,4000 SERIES 110 [6.7], M04067AB01AB02000000000000000F
Danfoss
109-1100-006

MOTOR-ORBITAL,4000 SERIES 110 [6.7], M04067AB01AB02000000000000000F

Danfoss 109-1094-006 – MOTOR-ORBITAL,4000 SERIES 280 [17.1], M04171AB01AB02000000000000000F
Danfoss
109-1094-006

MOTOR-ORBITAL,4000 SERIES 280 [17.1], M04171AB01AB02000000000000000F

Danfoss 109-1065-006 – MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AB03AD02000000000000000F
Danfoss
109-1065-006

MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AB03AD02000000000000000F

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNModel CodeMotor sizeGeometric displacement [cm3/r [in3/r]]Shaft KeyMain port thread type
109-1184-006M04067AF11AC0300000000000AA00F110109.8 [6.70]Rectangular key, 8 x 12 x 70 mmBSP
109-1173-006M04190AE08AA01000000005000000F310311.8 [19.03]n/aUN / UNF
109-1158-006M04150AF07AB02000000000000000F245246.3 [15.03]n/aUN / UNF
109-1120-006M04240AB03AB02000000000000000F395393.9 [24.04]n/aUN / UNF
109-1119-006M04190AB03AB02000000000000000F310311.8 [19.03]n/aUN / UNF
109-1118-006M04150AB03AB02000000000000000F245246.3 [15.03]n/aUN / UNF
109-1117-006M04125AB03AB02000000000000000F205205.5 [12.54]n/aUN / UNF
109-1116-006M04099AB03AB02000000000000000F160162.2 [9.90]n/aUN / UNF
109-1115-006M04080AB03AB02000000000000000F130130.3 [7.95]n/aUN / UNF
109-1114-006M04067AB03AB02000000000000000F110109.8 [6.70]n/aUN / UNF
109-1113-006M04240AB02AB02000000000000000F395393.9 [24.04]Square key, 7/16 x 1 1/4 inchUN / UNF
109-1112-006M04190AB02AB02000000000000000F310311.8 [19.03]Square key, 7/16 x 1 1/4 inchUN / UNF
109-1111-006M04150AB02AB02000000000000000F245246.3 [15.03]Square key, 7/16 x 1 1/4 inchUN / UNF
109-1110-006M04125AB02AB02000000000000000F205205.5 [12.54]Square key, 7/16 x 1 1/4 inchUN / UNF
109-1109-006M04099AB02AB02000000000000000F160162.2 [9.90]Square key, 7/16 x 1 1/4 inchUN / UNF
109-1106-006M04240AB01AB02000000000000000F395393.9 [24.04]Square key, 5/16 x 1 5/8 inchUN / UNF
109-1105-006M04190AB01AB02000000000000000F310311.8 [19.03]Square key, 5/16 x 1 5/8 inchUN / UNF
109-1104-006M04150AB01AB02000000000000000F245246.3 [15.03]Square key, 5/16 x 1 5/8 inchUN / UNF
109-1103-006M04125AB01AB02000000000000000F205205.5 [12.54]Square key, 5/16 x 1 5/8 inchUN / UNF
109-1102-006M04099AB01AB02000000000000000F160162.2 [9.90]Square key, 5/16 x 1 5/8 inchUN / UNF
109-1101-006M04080AB01AB02000000000000000F130130.3 [7.95]Square key, 5/16 x 1 5/8 inchUN / UNF
109-1100-006M04067AB01AB02000000000000000F110109.8 [6.70]Square key, 5/16 x 1 5/8 inchUN / UNF
109-1094-006M04171AB01AB02000000000000000F280280.1 [17.09]Square key, 5/16 x 1 5/8 inchUN / UNF
109-1065-006M04240AB03AD02000000000000000F395393.9 [24.04]n/aManifold

Common to all listed parts

Motor Series4000 Series
Valve systemDisc valve with valve drive
Orbital gearwheel set typeGeroler
Motor typeStandard
Motor functionStandard
Mounting flange type4 Bolt - Square
Brake Release Port Dimensionn/a
Special Features AssemblyStandard
