Danfoss orbital motor quick selector Parts

Danfoss

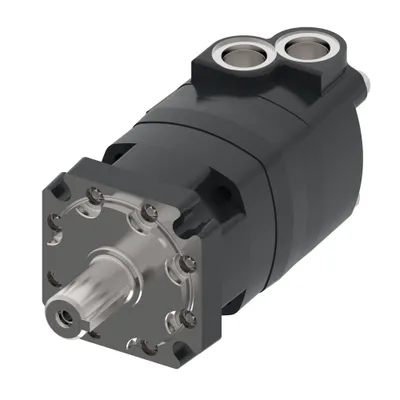

109-1238-006

MOTOR-ORBITAL,4000 SERIES 160 [9.9], M04099AB03AA01000000001000000F

Danfoss

109-1236-006

MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AH11AC0300000000000AA00F

Danfoss

109-1235-006

MOTOR-ORBITAL,4000 SERIES 625 [38.1], M04381AH11AC0300000000000AA00F

Danfoss

109-1234-006

MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AH11AC0300000000000AA00F

Danfoss

109-1233-006

MOTOR-ORBITAL,4000 SERIES 625 [38.1], M04381AF11AC0300000001300AA00F

Danfoss

109-1231-006

MOTOR-ORBITAL,4000 SERIES 205 [12.5], M04125AH11AC0300000000000AA00F

Danfoss

109-1227-006

MOTOR-ORBITAL,4000 SERIES 160 [9.9], M04099AF11AC0300000000000AA00F

Danfoss

109-1225-006

MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AF11AC0300000000000AA00F

Danfoss

109-1224-006

MOTOR-ORBITAL,4000 SERIES 205 [12.5], M04125AF11AC0300000000000AA00F

Danfoss

109-1220-006

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AF03AB02000000000000000F

Danfoss

109-1219-006

MOTOR-ORBITAL,4000 SERIES 625 [38.1], M04381AB03AB02000000000000000F

Danfoss

109-1215-006

MOTOR-ORBITAL,4000 SERIES 625 [38.1], M04381AB01AB02000000000000000F

Danfoss

109-1212-006

MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AB01AB02000000000000000F

Danfoss

109-1208-006

MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AB03AA01000000000000000F

Danfoss

109-1203-006

MOTOR-ORBITAL,4000 SERIES 205 [12.5], M04125AF03AB02000000000000000F

Danfoss

109-1196-006

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AF10AC0300000000000AA00F

Danfoss

109-1195-006

MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AF10AC03000000000000000F

Danfoss

109-1194-006

MOTOR-ORBITAL,4000 SERIES 205 [12.5], M04125AF10AC0300000000000AA00F

Danfoss

109-1193-006

MOTOR-ORBITAL,4000 SERIES 160 [9.9], M04099AF10AC03000000000000000F

Danfoss

109-1192-006

MOTOR-ORBITAL,4000 SERIES 130 [7.9], M04080AF10AC0300000000000AA00F

Danfoss

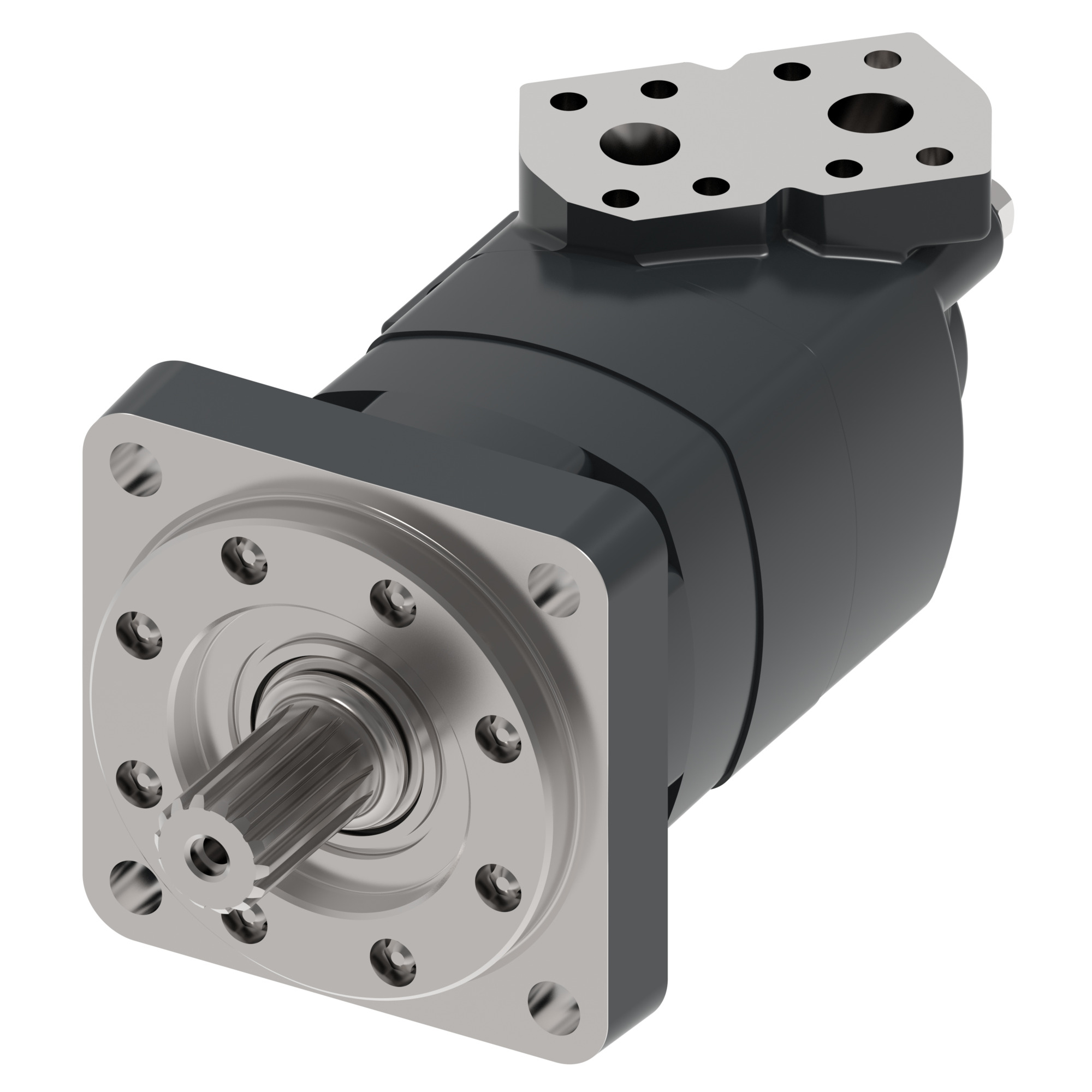

109-1191-006

MOTOR-ORBITAL,4000 SERIES 110 [6.7], M04067AF10AC0300000000000AA00F

Danfoss

109-1190-006

MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AF11AC0300000000000AA00F

Danfoss

109-1189-006

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AF11AC0300000000000AA00F

Danfoss

109-1185-006

MOTOR-ORBITAL,4000 SERIES 130 [7.9], M04080AF11AC0300000000000AA00F

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Main port dimension
109-1238-006	M04099AB03AA01000000001000000F	160	162.2 [9.90]	n/a	7/8 - 14 UNF-2B SAE O-Ring port
109-1236-006	M04240AH11AC0300000000000AA00F	395	393.9 [24.04]	Rectangular key, 8 x 12 x 70 mm	G 3/4
109-1235-006	M04381AH11AC0300000000000AA00F	625	623.9 [38.07]	Rectangular key, 8 x 12 x 70 mm	G 3/4
109-1234-006	M04301AH11AC0300000000000AA00F	495	492.6 [30.06]	Rectangular key, 8 x 12 x 70 mm	G 3/4
109-1233-006	M04381AF11AC0300000001300AA00F	625	623.9 [38.07]	Rectangular key, 8 x 12 x 70 mm	G 3/4
109-1231-006	M04125AH11AC0300000000000AA00F	205	205.5 [12.54]	Rectangular key, 8 x 12 x 70 mm	G 3/4
109-1227-006	M04099AF11AC0300000000000AA00F	160	162.2 [9.90]	Rectangular key, 8 x 12 x 70 mm	G 3/4
109-1225-006	M04150AF11AC0300000000000AA00F	245	246.3 [15.03]	Rectangular key, 8 x 12 x 70 mm	G 3/4
109-1224-006	M04125AF11AC0300000000000AA00F	205	205.5 [12.54]	Rectangular key, 8 x 12 x 70 mm	G 3/4
109-1220-006	M04190AF03AB02000000000000000F	310	311.8 [19.03]	n/a	1 1/16 - 12 UN-2B SAE O-Ring port
109-1219-006	M04381AB03AB02000000000000000F	625	623.9 [38.07]	n/a	1 1/16 - 12 UN-2B SAE O-Ring port
109-1215-006	M04381AB01AB02000000000000000F	625	623.9 [38.07]	Square key, 5/16 x 1 5/8 inch	1 1/16 - 12 UN-2B SAE O-Ring port
109-1212-006	M04301AB01AB02000000000000000F	495	492.6 [30.06]	Square key, 5/16 x 1 5/8 inch	1 1/16 - 12 UN-2B SAE O-Ring port
109-1208-006	M04240AB03AA01000000000000000F	395	393.9 [24.04]	n/a	7/8 - 14 UNF-2B SAE O-Ring port
109-1203-006	M04125AF03AB02000000000000000F	205	205.5 [12.54]	n/a	1 1/16 - 12 UN-2B SAE O-Ring port
109-1196-006	M04190AF10AC0300000000000AA00F	310	311.8 [19.03]	n/a	G 3/4
109-1195-006	M04150AF10AC03000000000000000F	245	246.3 [15.03]	n/a	G 3/4
109-1194-006	M04125AF10AC0300000000000AA00F	205	205.5 [12.54]	n/a	G 3/4
109-1193-006	M04099AF10AC03000000000000000F	160	162.2 [9.90]	n/a	G 3/4
109-1192-006	M04080AF10AC0300000000000AA00F	130	130.3 [7.95]	n/a	G 3/4
109-1191-006	M04067AF10AC0300000000000AA00F	110	109.8 [6.70]	n/a	G 3/4
109-1190-006	M04240AF11AC0300000000000AA00F	395	393.9 [24.04]	Rectangular key, 8 x 12 x 70 mm	G 3/4
109-1189-006	M04190AF11AC0300000000000AA00F	310	311.8 [19.03]	Rectangular key, 8 x 12 x 70 mm	G 3/4
109-1185-006	M04080AF11AC0300000000000AA00F	130	130.3 [7.95]	Rectangular key, 8 x 12 x 70 mm	G 3/4

Common to all listed parts

Motor Series	4000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Standard
Motor function	Standard
Mounting flange type	4 Bolt - Square
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
