SIRIUS 3RT contactors, 3-pole, up to 250 kW Parts
























Compare SIRIUS 3RT contactors, 3-pole, up to 250 kW
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current — without load current share typical | Net Weight | control supply voltage at AC — at 50 Hz rated value | yielded mechanical performance [hp] — for 3-phase AC motor — at 200/208 V rated value | yielded mechanical performance [hp] — for 3-phase AC motor — at 460/480 V rated value |
|---|---|---|---|---|---|

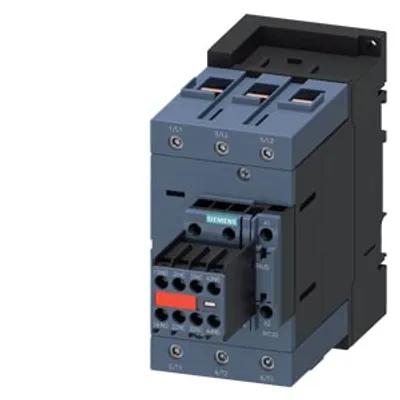

| 3RT2046-1AP04-3MA0 | 7.3 W | 1.706 kg | 230 V | 30 hp | 75 hp |
| 3RT2046-1AP04 | 7.3 W | 1.678 kg | 230 V | 30 hp | 75 hp |
| 3RT2046-1AP00-1AA0 | 7.3 W | 1.639 kg | 230 V | 30 hp | 75 hp |
| 3RT2046-1AP00 | 7.3 W | 1.64 kg | 230 V | 30 hp | 75 hp |
| 3RT2046-1AK64-3MA0 | 22 W | 1.689 kg | 110 V | 30 hp | 75 hp |
| 3RT2046-1AK64 | 22 W | 1.674 kg | 110 V | 30 hp | 75 hp |
| 3RT2046-1AK60-0UA0 | 22 W | 1.651 kg | 110 V | 25 hp | 50 hp |
| 3RT2016-1AK22 | 1.1 W | 0.217 kg | 120 V | 2 hp | 5 hp |

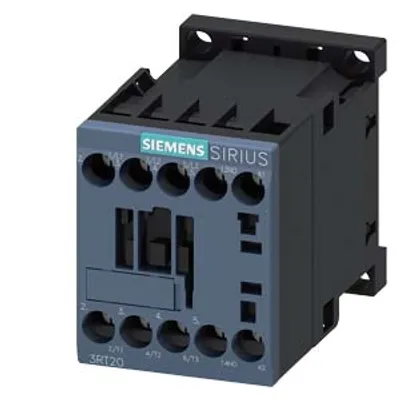

| 3RT2016-1AK21 | — | 0.22 kg | — | — | — |
| 3RT2016-1AH02 | 1.1 W | 0.217 kg | 48 V | 2 hp | 5 hp |
| 3RT1065-6AM36 | 7.4 W | 6.182 kg | 200 ... 220 V | 75 hp | 200 hp |

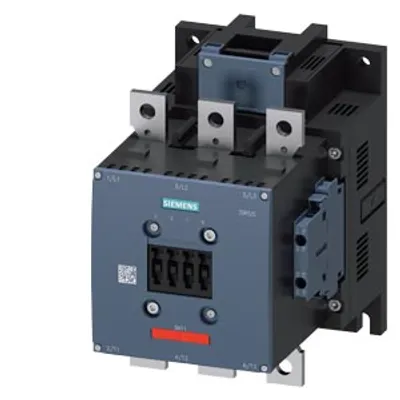

| 3RT1065-6AF36-3PA0 | 7.4 W | 6.191 kg | 110 ... 127 V | 75 hp | 200 hp |
| 3RT1065-6AF36 | 7.4 W | 6.216 kg | 110 ... 127 V | 75 hp | 200 hp |
| 3RT1065-6AD36 | 7.4 W | 6.218 kg | 42 ... 48 V | 75 hp | 200 hp |
| 3RT1065-6AB36-3PA0 | 7.4 W | 6.252 kg | 23 ... 26 V | 75 hp | 200 hp |
| 3RT1065-6AB36 | 7.4 W | 6.272 kg | 23 ... 26 V | 75 hp | 200 hp |
| 3RT2017-1BM41 | 4 W | 0.281 kg | — | 3 hp | 8 hp |
| 3RT2017-1BG42 | 4 W | 0.279 kg | — | 3 hp | 8 hp |
| 3RT2017-1BG41 | 4 W | 0.294 kg | — | 3 hp | 8 hp |
| 3RT2017-1BF42 | 4 W | 0.285 kg | — | 3 hp | 8 hp |
| 3RT2017-1BF41 | 4 W | 0.272 kg | — | 3 hp | 8 hp |
| 3RT2017-1BE42 | 4 W | 0.279 kg | — | 3 hp | 8 hp |
| 3RT2017-1BE41 | 4 W | 0.282 kg | — | 3 hp | 8 hp |
| 3RT1055-6SP36-3PA0 | 2.8 W | 3.21 kg | 200 ... 277 V | 50 hp | 125 hp |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
