SIRIUS 3RT contactors, 3-pole, up to 250 kW Parts
























Compare SIRIUS 3RT contactors, 3-pole, up to 250 kW
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | height | depth | type of connectable conductor cross-sections — for AWG cables for main contacts | type of connectable conductor cross-sections — for AWG cables for auxiliary contacts |
|---|---|---|---|---|---|
| 3RT1054-3AT36 | 3.54 kg | 172 mm | 170 mm | 2x 1/0 | 2x (24 ... 14) |
| 3RT1054-3AS36 | 3.526 kg | 172 mm | 170 mm | 2x 1/0 | 2x (24 ... 14) |
| 3RT1054-3AR38-0PR0 | 3.536 kg | 172 mm | 170 mm | 2x 1/0 | 2x (24 ... 14) |
| 3RT1054-1SP36-3PA0 | 3.167 kg | 172 mm | 170 mm | 2x 1/0 | 2x (20 ... 16), 2x (18 ... 14), 1x 12 |

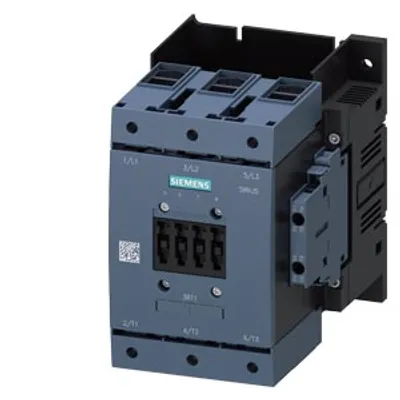

| 3RT1054-1LA06 | 3.021 kg | 172 mm | 170 mm | 2x 1/0 | 2x (20 ... 16), 2x (18 ... 14), 1x 12 |
| 3RT1054-1AV36 | 3.475 kg | 172 mm | 170 mm | 2x 1/0 | 2x (20 ... 16), 2x (18 ... 14), 1x 12 |
| 3RT2036-1AP64 | 1.048 kg | 114 mm | 174 mm | 2x (18 ... 2), 1x (18 ... 1) | 2x (20 ... 16), 2x (18 ... 14) |
| 3RT2036-1AP60-0UA0 | 0.953 kg | 114 mm | 130 mm | — | — |
| 3RT2016-1FB44-3MA0 | 326.799 g | 58 mm | 117 mm | 2x (20 ... 16), 2x (18 ... 14), 2x 12 | 2x (20 ... 16), 2x (18 ... 14), 2x 12 |
| 3RT2016-2BM41 | 299.5 g | 70 mm | 73 mm | 2x (20 ... 12) | 2x (20 ... 12) |
| 3RT2016-2BG42 | 0.295 kg | 70 mm | 73 mm | 2x (20 ... 12) | 2x (20 ... 12) |
| 3RT2016-2BG41 | 0.295 kg | 70 mm | 73 mm | 2x (20 ... 12) | 2x (20 ... 12) |
| 3RT2016-2BF42 | 0.297 kg | 70 mm | 73 mm | 2x (20 ... 12) | 2x (20 ... 12) |
| 3RT2027-1AM20 | 0.398 kg | 85 mm | 97 mm | — | — |
| 3RT2027-1AL24-3MA0 | 470 g | 85 mm | 141 mm | 2x (16 ... 12), 2x (14 ... 8) | 2x (20 ... 16), 2x (18 ... 14) |
| 3RT2027-1AL24 | 0.47 kg | 85 mm | 141 mm | 2x (16 ... 12), 2x (14 ... 8) | 2x (20 ... 16), 2x (18 ... 14) |
| 3RT2027-1AL20-1AA0 | 0.4 kg | 85 mm | 97 mm | — | — |
| 3RT2027-1AG60 | 412.5 g | 85 mm | 97 mm | — | — |
| 3RT2027-1AG24 | 460 g | 85 mm | 141 mm | 2x (16 ... 12), 2x (14 ... 8) | 2x (20 ... 16), 2x (18 ... 14) |
| 3RT2027-1AG20 | 400.68 g | 85 mm | 97 mm | — | — |
| 3RT2027-2KG40 | 0.576 kg | 102 mm | 107 mm | 2x (18 ... 8) | 2x (20 ... 14) |
| 3RT2027-2KF40 | 627.2 g | 102 mm | 107 mm | 2x (18 ... 8) | 2x (20 ... 14) |
| 3RT2027-2KB40 | 604.98 g | 102 mm | 107 mm | 2x (18 ... 8) | 2x (20 ... 14) |
| 3RT2027-2KA40 | 0.619 kg | 102 mm | 107 mm | 2x (18 ... 8) | 2x (20 ... 14) |
Common to all listed parts
| type of calculation of power loss current-dependent | quadratic |
| reference code according to IEC 81346-2 | Q |
| installation altitude at height above sea level maximum | 2 000 m |
| relative humidity minimum | 10 % |
| relative humidity at 55 °C according to IEC 60068-2-30 maximum | 95 % |
| number of poles for main current circuit | 3 |
| number of NO contacts for main contacts | 3 |
| number of NC contacts for main contacts | 0 |
