Power Panel C80 Parts

B&R

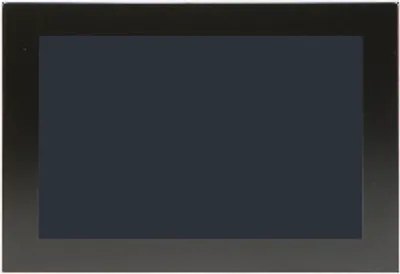

4PPC80.121E-10A

Power Panel C80, 12.1", glass front (anti-glare). CPU and…

B&R

4PPC80.121E-10B

Power Panel C80, 12.1", glass front. CPU and memory: 1600…

B&R

4PPC80.121E-11A

Power Panel C80, 12.1", glass front (anti-glare)

B&R

4PPC80.121E-11B

Power Panel C80, 12.1", glass front

B&R

4PPC80.121E-12A

Power Panel C80, 12.1", glass front (anti-glare) fieldbus…

B&R

4PPC80.121E-12B

Power Panel C80, 12.1", glass front

B&R

4PPC80.121E-13A

Power Panel C80, 12.1", glass front (anti-glare)

B&R

4PPC80.121E-13B

Power Panel C80, 12.1", glass front

B&R

4PPC80.156B-10A

Power Panel C80, 15.6", glass front (anti-glare). CPU and…

B&R

4PPC80.156B-10B

Power Panel C80, 15.6", glass front. CPU and memory: 1600…

B&R

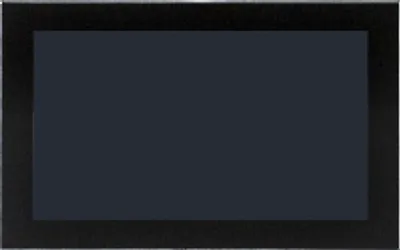

4PPC80.156B-11A

Power Panel C80, 15.6", glass front (anti-glare)

B&R

4PPC80.156B-11B

Power Panel C80, 15.6", glass front

B&R

4PPC80.156B-12A

Power Panel C80, 15.6", glass front (anti-glare) fieldbus…

B&R

4PPC80.156B-12B

Power Panel C80, 15.6", glass front

B&R

4PPC80.156B-13A

Power Panel C80, 15.6", glass front (anti-glare)

B&R

4PPC80.156B-13B

Power Panel C80, 15.6", glass front

Compare Power Panel C80

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Viewing angles – Horizontal	Diagonal	Resolution	Contrast	Nominal current
4PPC80.121E-10A	Direction L / Direction R = Typ. 80°	12.1"	WXGA; 1280 x 800 px	Typ. 800:1	1.8 A
4PPC80.121E-10B	Direction L / Direction R = Typ. 80°	12.1"	WXGA; 1280 x 800 px	Typ. 800:1	1.8 A
4PPC80.121E-11A	Direction L / Direction R = Typ. 80°	12.1"	WXGA; 1280 x 800 px	Typ. 800:1	1.8 A
4PPC80.121E-11B	Direction L / Direction R = Typ. 80°	12.1"	WXGA; 1280 x 800 px	Typ. 800:1	1.8 A
4PPC80.121E-12A	Direction L / Direction R = Typ. 80°	12.1"	WXGA; 1280 x 800 px	Typ. 800:1	1.8 A
4PPC80.121E-12B	Direction L / Direction R = Typ. 80°	12.1"	WXGA; 1280 x 800 px	Typ. 800:1	1.8 A
4PPC80.121E-13A	Direction L / Direction R = Typ. 80°	12.1"	WXGA; 1280 x 800 px	Typ. 800:1	1.8 A
4PPC80.121E-13B	Direction L / Direction R = Typ. 80°	12.1"	WXGA; 1280 x 800 px	Typ. 800:1	1.8 A
4PPC80.156B-10A	Direction L / Direction R = Typ. 85°	15.6"	HD; 1366 x 768 px	Typ. 1000:1	1.7 A
4PPC80.156B-10B	Direction L / Direction R = Typ. 85°	15.6"	HD; 1366 x 768 px	Typ. 1000:1	1.7 A
4PPC80.156B-11A	Direction L / Direction R = Typ. 85°	15.6"	HD; 1366 x 768 px	Typ. 1000:1	1.7 A
4PPC80.156B-11B	Direction L / Direction R = Typ. 85°	15.6"	HD; 1366 x 768 px	Typ. 1000:1	1.7 A
4PPC80.156B-12A	Direction L / Direction R = Typ. 85°	15.6"	HD; 1366 x 768 px	Typ. 1000:1	1.7 A
4PPC80.156B-12B	Direction L / Direction R = Typ. 85°	15.6"	HD; 1366 x 768 px	Typ. 1000:1	1.7 A
4PPC80.156B-13A	Direction L / Direction R = Typ. 85°	15.6"	HD; 1366 x 768 px	Typ. 1000:1	1.7 A
4PPC80.156B-13B	Direction L / Direction R = Typ. 85°	15.6"	HD; 1366 x 768 px	Typ. 1000:1	1.7 A

Common to all listed parts

Support – mapp View	Yes
Support – Controller redundancy	No
Support – Visual Components support	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Cooling	Passive
