Power Panel C80 Parts

B&R

4PPC80.0573-10B

Power Panel C80, glass front. CPU and memory: 1600 MHz…

B&R

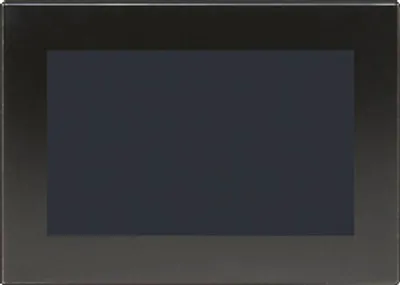

4PPC80.0573-10A

Power Panel C80, glass front (anti-glare). CPU and memory…

B&R

4PPC80.0573-11A

Power Panel C80, glass front (anti-glare)

B&R

4PPC80.0573-11B

Power Panel C80, glass front

B&R

4PPC80.0573-12A

Power Panel C80, glass front (anti-glare)

B&R

4PPC80.0573-12B

Power Panel C80, glass front

B&R

4PPC80.0573-13A

Power Panel C80, glass front (anti-glare)

B&R

4PPC80.0573-13B

Power Panel C80, glass front

B&R

4PPC80.0702-10A

Power Panel C80, 7.0", glass front (anti-glare). CPU and…

B&R

4PPC80.0702-10B

Power Panel C80, 7.0", glass front. CPU and memory: 1600…

B&R

4PPC80.0702-11A

Power Panel C80, 7.0", glass front (anti-glare)

B&R

4PPC80.0702-11B

Power Panel C80, 7.0", glass front

B&R

4PPC80.0702-12A

Power Panel C80, 7.0", glass front (anti-glare) fieldbus…

B&R

4PPC80.0702-12B

Power Panel C80, 7.0", glass front

B&R

4PPC80.0702-13A

Power Panel C80, 7.0", glass front (anti-glare)

B&R

4PPC80.0702-13B

Power Panel C80, 7.0", glass front

B&R

4PPC80.101E-10A

Power Panel C80, 10.1", glass front (anti-glare). CPU and…

B&R

4PPC80.101E-10B

Power Panel C80, 10.1", glass front. CPU and memory: 1600…

B&R

4PPC80.101E-11A

Power Panel C80, 10.1", glass front (anti-glare)

B&R

4PPC80.101E-11B

Power Panel C80, 10.1", glass front

B&R

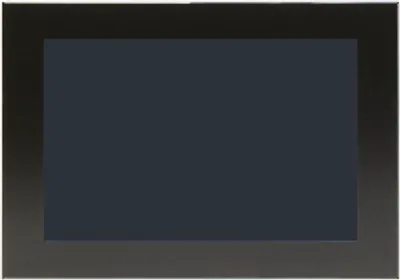

4PPC80.101E-12A

Power Panel C80, 10.1", glass front (anti-glare) fieldbus…

B&R

4PPC80.101E-12B

Power Panel C80, 10.1", glass front

B&R

4PPC80.101E-13A

Power Panel C80, 10.1", glass front (anti-glare)

B&R

4PPC80.101E-13B

Power Panel C80, 10.1", glass front

Compare Power Panel C80

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Viewing angles – Horizontal	Viewing angles – Vertical	Diagonal	Resolution	Dimensions – Width
4PPC80.0573-10B	Direction L / Direction R = Typ. 80°	Direction U / Direction D = Typ. 80°	5.7"	VGA; 640 x 480 px	203 mm
4PPC80.0573-10A	Direction L / Direction R = Typ. 80°	Direction U / Direction D = Typ. 80°	5.7"	VGA; 640 x 480 px	203 mm
4PPC80.0573-11A	Direction L / Direction R = Typ. 80°	Direction U / Direction D = Typ. 80°	5.7"	VGA; 640 x 480 px	203 mm
4PPC80.0573-11B	Direction L / Direction R = Typ. 80°	Direction U / Direction D = Typ. 80°	5.7"	VGA; 640 x 480 px	203 mm
4PPC80.0573-12A	Direction L / Direction R = Typ. 80°	Direction U / Direction D = Typ. 80°	5.7"	VGA; 640 x 480 px	203 mm
4PPC80.0573-12B	Direction L / Direction R = Typ. 80°	Direction U / Direction D = Typ. 80°	5.7"	VGA; 640 x 480 px	203 mm
4PPC80.0573-13A	Direction L / Direction R = Typ. 80°	Direction U / Direction D = Typ. 80°	5.7"	VGA; 640 x 480 px	203 mm
4PPC80.0573-13B	Direction L / Direction R = Typ. 80°	Direction U / Direction D = Typ. 80°	5.7"	VGA; 640 x 480 px	203 mm
4PPC80.0702-10A	Direction L / Direction R = Typ. 70°	Direction U / Direction D = Typ. 60°	7.0"	WVGA; 800 x 480 px	209 mm
4PPC80.0702-10B	Direction L / Direction R = Typ. 70°	Direction U / Direction D = Typ. 60°	7.0"	WVGA; 800 x 480 px	209 mm
4PPC80.0702-11A	Direction L / Direction R = Typ. 70°	Direction U / Direction D = Typ. 60°	7.0"	WVGA; 800 x 480 px	209 mm
4PPC80.0702-11B	Direction L / Direction R = Typ. 70°	Direction U / Direction D = Typ. 60°	7.0"	WVGA; 800 x 480 px	209 mm
4PPC80.0702-12A	Direction L / Direction R = Typ. 70°	Direction U / Direction D = Typ. 60°	7.0"	WVGA; 800 x 480 px	209 mm
4PPC80.0702-12B	Direction L / Direction R = Typ. 70°	Direction U / Direction D = Typ. 60°	7.0"	WVGA; 800 x 480 px	209 mm
4PPC80.0702-13A	Direction L / Direction R = Typ. 70°	Direction U / Direction D = Typ. 60°	7.0"	WVGA; 800 x 480 px	209 mm
4PPC80.0702-13B	Direction L / Direction R = Typ. 70°	Direction U / Direction D = Typ. 60°	7.0"	WVGA; 800 x 480 px	209 mm
4PPC80.101E-10A	Direction L / Direction R = Typ. 85°	Direction U / Direction D = Typ. 85°	10.1"	WXGA; 1280 x 800 px	279 mm
4PPC80.101E-10B	Direction L / Direction R = Typ. 85°	Direction U / Direction D = Typ. 85°	10.1"	WXGA; 1280 x 800 px	279 mm
4PPC80.101E-11A	Direction L / Direction R = Typ. 85°	Direction U / Direction D = Typ. 85°	10.1"	WXGA; 1280 x 800 px	279 mm
4PPC80.101E-11B	Direction L / Direction R = Typ. 85°	Direction U / Direction D = Typ. 85°	10.1"	WXGA; 1280 x 800 px	279 mm
4PPC80.101E-12A	Direction L / Direction R = Typ. 85°	Direction U / Direction D = Typ. 85°	10.1"	WXGA; 1280 x 800 px	279 mm
4PPC80.101E-12B	Direction L / Direction R = Typ. 85°	Direction U / Direction D = Typ. 85°	10.1"	WXGA; 1280 x 800 px	279 mm
4PPC80.101E-13A	Direction L / Direction R = Typ. 85°	Direction U / Direction D = Typ. 85°	10.1"	WXGA; 1280 x 800 px	279 mm
4PPC80.101E-13B	Direction L / Direction R = Typ. 85°	Direction U / Direction D = Typ. 85°	10.1"	WXGA; 1280 x 800 px	279 mm

Common to all listed parts

Support – mapp View	Yes
Support – Controller redundancy	No
Support – Visual Components support	Yes
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Cooling	Passive
