Warning label, Linergy TR terminals blocks, for 6mm² screw terminal blocks, yellow

Warning label, Linergy TR terminals blocks, for 6mm² screw terminal blocks, yellow

Warning label, Linergy TR terminals blocks, for 4mm² screw terminal blocks, yellow

Warning label, Linergy TR terminals blocks, for 35mm² screw terminal blocks, yellow

Warning label, Linergy TR terminals blocks, for 2.5mm² screw terminal blocks, yellow

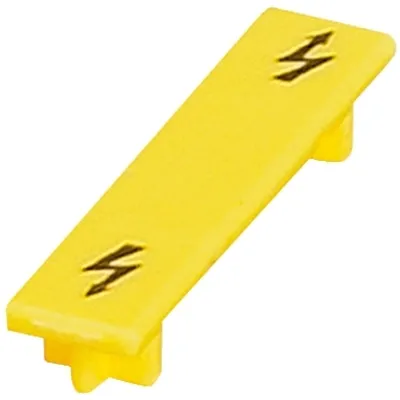

Warning label, Linergy TR terminals blocks, for 16mm² screw terminal blocks, yellow

Warning label, Linergy TR terminals blocks, for 10mm² screw terminal blocks, yellow


Switching jumper, Linergy TR, 4 points, for NSYTRV62TTD terminal, pluggable, orange, set of 10

Switching jumper, Linergy TR, 2 points, for NSYTRV62TTD terminal, pluggable, orange, set of 10

Component carrier, Linergy TR, for 5x20mm fuse, 6.2mm width, with 12 to 30V light indicator

Component carrier, Linergy TR, for 5x20mm fuse, 6,2mm width, with 110-250V light indicator


Component carrier, Linergy TR, with integrated 1N4007 diode, conducting from right

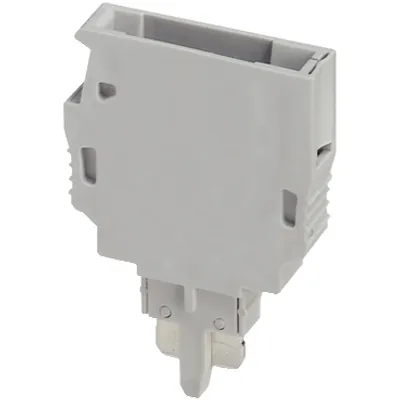

Component carrier, Linergy TR, for basic disconnect terminals NSY TRV42TV, TRR22TB

Test adapter, Linergy TR, for 4mm safety test plug, lockable yellow for NSYTRV62TT

Test adapter, Linergy TR, for 4mm safety test plug, lockable, green for NSYTRV62TT

Test adapter, Linergy TR, for 4mm safety test plugs, plugs in the bridge shafts

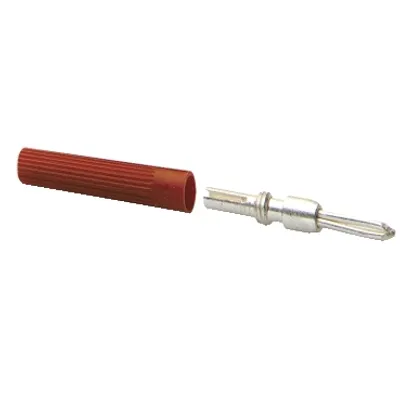

Plug, Linergy TR, insulating sleeve for test plug metalic part NSYTRAAM1, Red

Reduction bridge screw to spring, Linergy TR terminals blocks, for conecting 16mm² screw to 2.5/4mm² spring terminal, red

Reduction bridge screw to screw, Linergy TR terminals blocks, for connecting 6mm² spring to 2.5/4mm² screw terminal, red

Reduction bridge screw to screw, Linergy TR terminals blocks, for connecting 35mm² spring to 2.5/4mm² screw terminal, red

Reduction bridge screw to screw, Linergy TR terminals blocks, for connecting 16mm² spring to 2.5/4mm² screw terminal, red

Reduction bridge screw to screw, Linergy TR terminals blocks, for connecting 10mm² spring to 2.5/4mm² screw terminal, red
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product or component type | number of connections | Number of measurement input | Net weight | Colour |
|---|---|---|---|---|---|
| NSYTRACS6 | Warning label | 2 | 2 | 1.7 g | Yellow |
| NSYTRACS4 | Warning label | 2, 3, 4 | 1, 4, 2 | 1.2 g | Yellow |
| NSYTRACS35 | Warning label | 2 | 0, 1, 2 | 1.9 g | Yellow |
| NSYTRACS2 | Warning label | 2 | 3, 2, 4 | 0.9 g | Yellow |
| NSYTRACS16 | Warning label | 2 | 0, 1, 2 | 1.9 g | Yellow |
| NSYTRACS10 | Warning label | 2 | 2, 1, 0 | 1.9 g | Yellow |
| NSYTRASJ6 | Locking clip | 2 | 6 | 0.4 g | White |
| NSYTRASJ4 | Switching jumper | 2 | 6 | 23.3 g | Orange |
| NSYTRASJ2 | Switching jumper | 2 | 6 | 11.5 g | Orange |
| NSYTRASF520B | Component carrier | 2, 1 | 0, 1 | 4.11 g | Black |
| NSYTRASF520M | Component carrier | 2, 1 | 0, 1 | 4.18 g | Black |
| NSYTRASF520 | Component carrier | 2, 1 | 1, 0 | 3.85 g | Black |
| NSYTRASV2 | Component carrier | 1, 2 | 0, 1 | 3.75 g | Grey |
| NSYTRASV1 | Component carrier | 2, 1 | 0, 1 | 3.54 g | Grey |
| NSYTRAFTYE | Adaptor | 2 | 6 | 2.36 g | Yellow |
| NSYTRAFTGN | Adaptor | 2 | 6 | 2.36 g | Green |
| NSYTRAFT | Adaptor | 4, 2, 3 | 1, 2, 6, 3, 4 | 2.36 g | Grey |
| NSYTRAATM1 | Plug | — | 6, 2, 3, 4, 1 | 1.4 g | — |
| NSYTRAATP1 | Plug | — | 4, 3, 1, 6, 2 | 0.3 g | Red |
| NSYTRALVR162 | Reduction bridge screw to spring | 2 | 2 | 4.8 g | — |
| NSYTRALV62 | Reduction bridge screw to screw | 2 | 2 | 2.6 g | — |
| NSYTRALV352 | Reduction bridge screw to screw | 2 | 2 | 6.8 g | — |
| NSYTRALV162 | Reduction bridge screw to screw | 2 | 2 | 4 g | — |
| NSYTRALV102 | Reduction bridge screw to screw | 2 | 2 | 2.8 g | — |
| Range | Linergy |
| Device short name | TRA |
| Quantity per set | Set of 10 |
