Schneider Electric NSYTRASV2

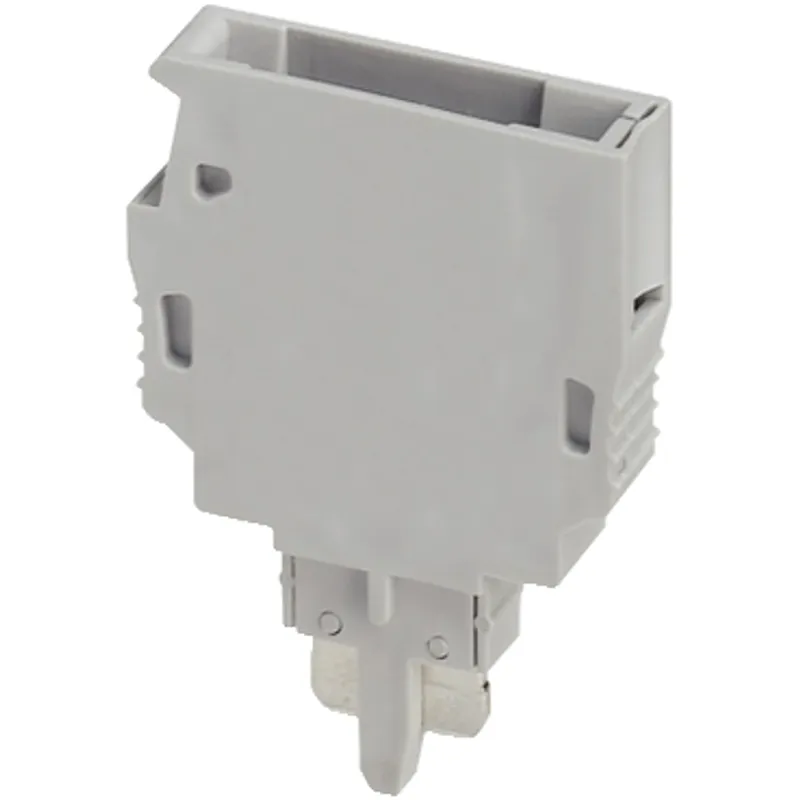

Component carrier, Linergy TR, with integrated 1N4007 diode, conducting from right
- MPN
- NSYTRASV2
- EAN
- 3606480534478
- Category
- Linergy TR terminals blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTRASV2?
Component carrier for Linergy TR terminals blocks It is compatible with TRV screw, TRR spring and TRP Push-in terminal blocks. Component carrier for all disconnect terminals and component with 1N4007 diode Component carrier made with Polyamide (PA 6.6) and Grey Colour Sold in lots of 10 units. It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range | Linergy |
| Product name | TR |
| Product or component type | Component carrier |
| Device short name | TRA |
| Accessory / separate part category | Connection accessory |
| Product compatibility | TRV screw terminal - removable carrier disconnect terminal block, TRR spring terminal - removable carrier disconnect terminal block, TRP push-in - removable carrier disconnect terminal block |
| Length | 24 mm |
| thickness | 5.2 mm |
| Cable cross section | 2.5 mm², 4 mm² |
| number of connections | 1, 2 |
| Number of terminals | 2, 3 |
| Number of measurement input | 0, 1 |
| Mounting mode | Plug-in |
| Quantity per set | Set of 10 |
| Net weight | 3.75 g |
| Colour | Grey |
| Provided equipment | Diode 1N4007 |
Packaging
| Package 1 | 1 PCE, 3.5 cm × 2.5 cm × 0.6 cm (L × W × H), 3 g |
| Package 2 | 10 BAG, 10 cm × 7 cm × 1.3 cm (L × W × H), 38 g |
| Package 3 | 400 S01, 40 cm × 15 cm × 15 cm (L × W × H), 1.743 kg |
