What is the Wago 857-809?
Short description:
WAGO's potentiometer signal conditioner records resistance signals (e.g., from potentiometers) and converts them into a standard analog signal. The device is supplied with 24 VDC (nominal voltage). It is set via DIP switch or push/slide switch.
Features:
PC configuration interface
Calibrated measurement range switching
Automatic maximum value identification fot the connected potentiometer
Specifications
Notes
| Safety Information | Input and output must be safely isolated from any hazardous live parts! |
| Note | Use shielded signal cables!Only use shielded signal cables for analog input and output signals.This ensures the device maintains its specified accuracy and immunity to interference, even when external disturbances affect the signal cable., Additional setting options via the WAGO Interface Configuration Software |
Technical data - Configuration

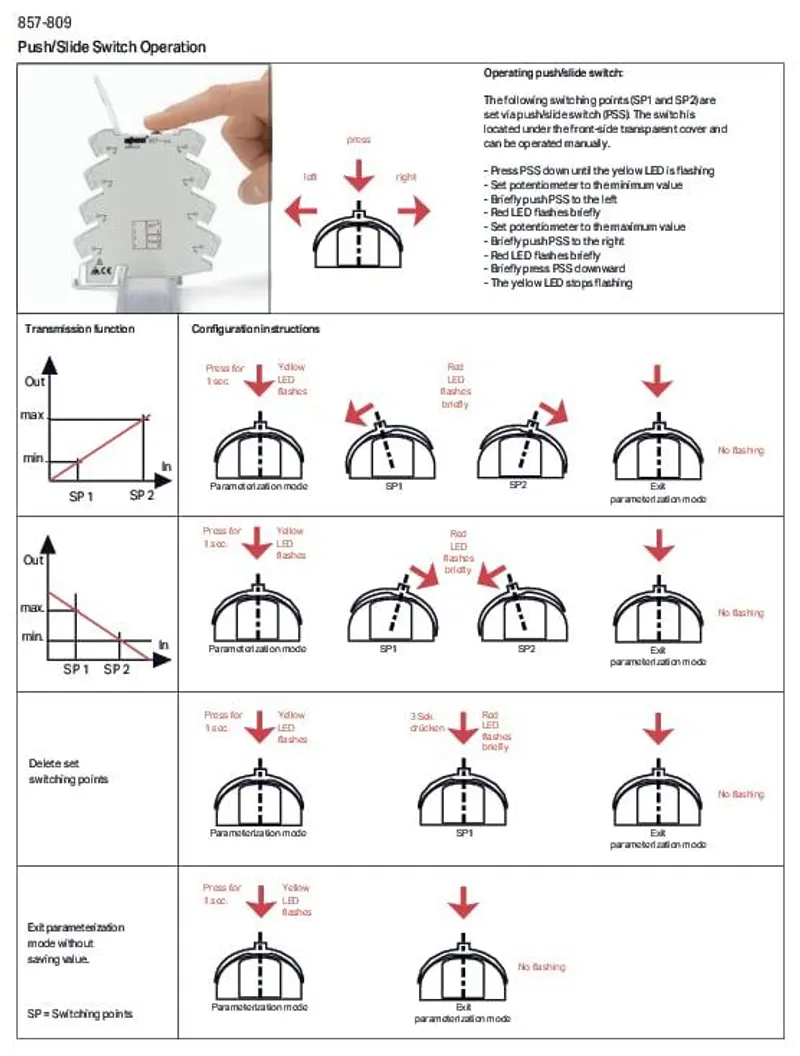

| Configuration options | DIP switch, WAGO Interface Configuration Software, Push/slide switch |
Technical data - Input
| Input signal type | Potentiometer, Resistance, Potentiometers, Resistor |
Technical data - Input (resistors)
| Input range (resistor) | 0 … 100 kΩ |
| Input range (potentiometer) | 0 … 100 kΩ |
| Potentiometer supply voltage (max.) | 2.5 V |
| Measurement span (min.) | 100 Ω |
Technical data - Output (analog)
| Output signal type | Current, Voltage |
| Output signal (voltage) | 0 … 5 V, 1 … 5 V, 0 … 10 V, 2 … 10 V |
| Output signal (current) | 0 … 10 mA, 2 … 10 mA, 0 … 20 mA, 4 … 20 mA |
| Load impedance (voltage output) | ≥ 2 kΩ |
| Load impedance (current output) | ≤ 600 Ω |
Technical data - Output (digital)
| Switching voltage (DO) max. | Supply voltage applied |
| Continuous current (DO) max. | 100 mA (no internal restriction) |
| Number of switching thresholds (DO) | 2 (adjustable switching points) |
Technical data - Signal processing
| Step response (typ.) | 32 ms |
Technical data - Measurement error
| Transmission error (typ.) | ≤ 0.1 % of upper-range value |
| Temperature coefficient | ≤ 0.01 %/K |
Technical data - Power supply
| Power supply type | 24 VDC (SELV) |
| Nominal supply voltage U<sub>S</sub> | 24 VDC |
| Supply voltage range | ±30 % |
| Current consumption at nominal supply voltage | ≤ 50 mA (+ IDO) |
| Power consumption (max.) | 4 W |
| Power loss (max.) P<sub>l (max.)</sub> | 0.9 W |
Safety and protection
| Rated voltage | 300 V |
| Overvoltage category | II |
| Pollution degree | 2 |
| Protection type | IP20 |
Safety and protection - Test voltage
| Test voltage (input/output/supply) | 2 kVAC; 50 Hz; 1 min |
Safety and protection - Insulation coordination
| Insulation type (input/analog output/supply) | Functional insulation |
Connection data
| Connection technology | Push-in CAGE CLAMP® |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.34 … 2.5 mm² / 22 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Physical data
| Width | 6 mm / 0.236 inches |
| Height | 94 mm / 3.701 inches |
| Depth from upper-edge of DIN-rail | 97.8 mm / 3.85 inches |
Mechanical data
| Mounting type | DIN-35 rail |
Material data
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.418 MJ |
| Weight | 36.6 g |
Environmental requirements
| Ambient temperature (operation) | -25 … +70 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Temperature range of connection cable | ≥ (Tambient + 9 K) |
| Relative humidity | 5 … 95 % (no condensation permissible) |
| Operating altitude (max.) | 2000 m |
Standards and specifications
| Conformity marking | CE |
| EMC immunity to interference | EN 61000-6-2 |
| EMC emission of interference | EN 61000-6-4 |
| Standards/specifications | DNV, EN 61010-1 |
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
| PU (SPU) | 1 pcs |
| Packaging type | bag |
| Country of origin | DE |
| GTIN | 4050821480761 |
| Customs tariff number | 85437090300 |
Product Classification
| UNSPSC | 32101513 |
| eCl@ss 10.0 | 27-21-01-20 |
| eCl@ss 9.0 | 27-21-01-20 |
| ETIM 9.0 | EC002653 |
| ETIM 10.0 | EC002653 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1, 79-94-7, 80-05-7 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, 4,4'-isopropylidenediphenol, Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Bulgaria) | 852b910c-257c-472c-a61b-3693d1584e48 |
| SCIP notification number (Czech Republic) | ca15a22b-2053-43e4-b99b-5ae3cefb73bd |
