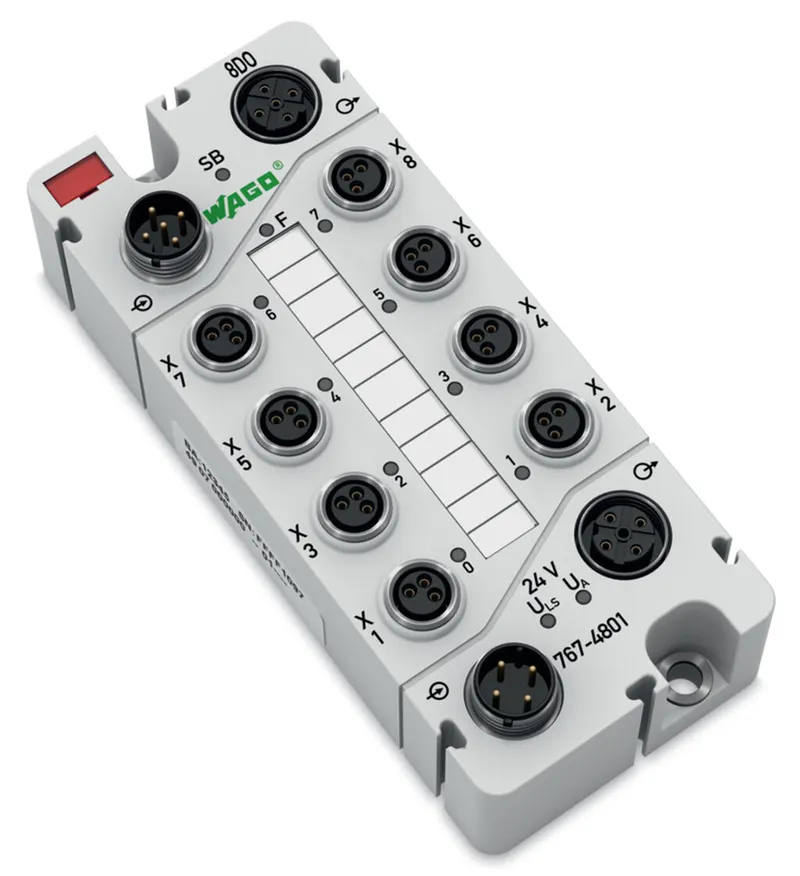

Wago 767-4801

8-channel digital output; 24 VDC; 0.5 A; 8 x M8

MPN: 767-4801
Category: I/O Systems

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Wago parts? We buy surplus →

What is the Wago 767-4801?

Short description: This digital output module controls actuators (e.g., magnetic valves, DC contactors, indicators).

Features: - 8 digital outputs, 24 VDC / 0.5 A

‐ Diagnostic-capable (per channel)

‐ Parameterizable (inversion, substitute value strategy, manual mode, online simulation and diagnostics)

Includes:

1 x WMB marker, red

1 x marking strip

2 x M8 protective cap

Specifications

Technical data

Number of digital outputs	8
Total number of channels (module)	8
Signal type	Voltage
Signal type (voltage)	24 VDC
Actuator connection	8 x (2-wire, 3-wire)
Output characteristic	high-side switching
Output current per channel	0.5 A
Output current (module)	4 A
Output current	short-circuit/overload-protected
Leakage current in OFF state	150 µA
Switching frequency (max.)	500 Hz; Inductive load
Switching frequency (max.) (2)	20 Hz; Resistive load
Switching frequency (max.) (3)	500 Hz; Lamp load
Load type	Resistive, inductive, lamp load
Process data width	1-byte data + status
Parameterizable functions	I/O diagnostics (per module): Undervoltage (ULS + UA), I/O diagnostics (per channel): Short circuit/overload (actuators); Wire break (actuators); Overtemperature, Online simulation (per module): Diagnostics, Online simulation (per channel): Lock/Unlock; Simulation value: 0/1; Diagnostics, Inversion (per channel): On/Off, Substitute value (per channel): 0/1, Substitute value strategy (per channel): Switch substitute value/Hold last value, Manual mode (per channel): On/Off, Manual mode value (by channel): 0/1
Protection	Reverse voltage protection for ULS + UA
Output resistance	0.4 Ω
Supply voltage (system and sensor)	24 VDC(-25 … +30 %); Logic and sensors (ULS)
Current consumption: System and sensor	45 mA
System and sensor power consumption (note)	logic component only
Supply voltage (field)	24 VDC (-25 … +30 %); Actuators (UA)
Current consumption, field supply (module with no external load)	25 mA
Isolation	500 V supply/system bus

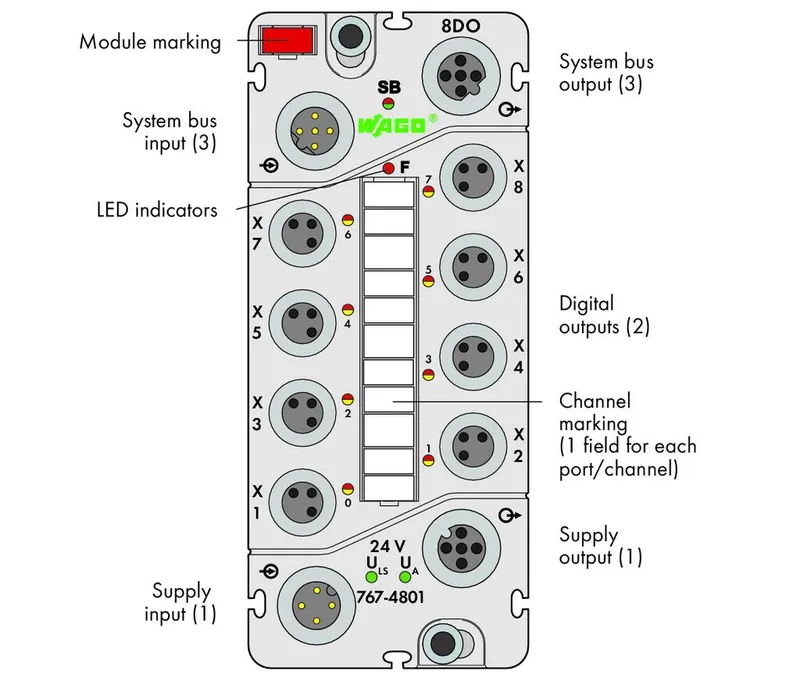

Indicators	LED (F) red: Error status; LED (SB) green/red/orange: System bus status; LED (ULS, UA) green: Power supply status; LED (0 … 7) yellow/red: Status/diagnostics DO 1 … DO 8; Non-retentive displays
Current carrying capacity (supply connections)	8 A
Rise time from “0” to “1”	typ. 40 µs (resistive load)
Output operation	non-retentive
Protection against reverse voltages	0.5 A
Voltage drop against U<sub>A</sub>	0.2
S-bus (system bus) disruption	0 V status

Connection data

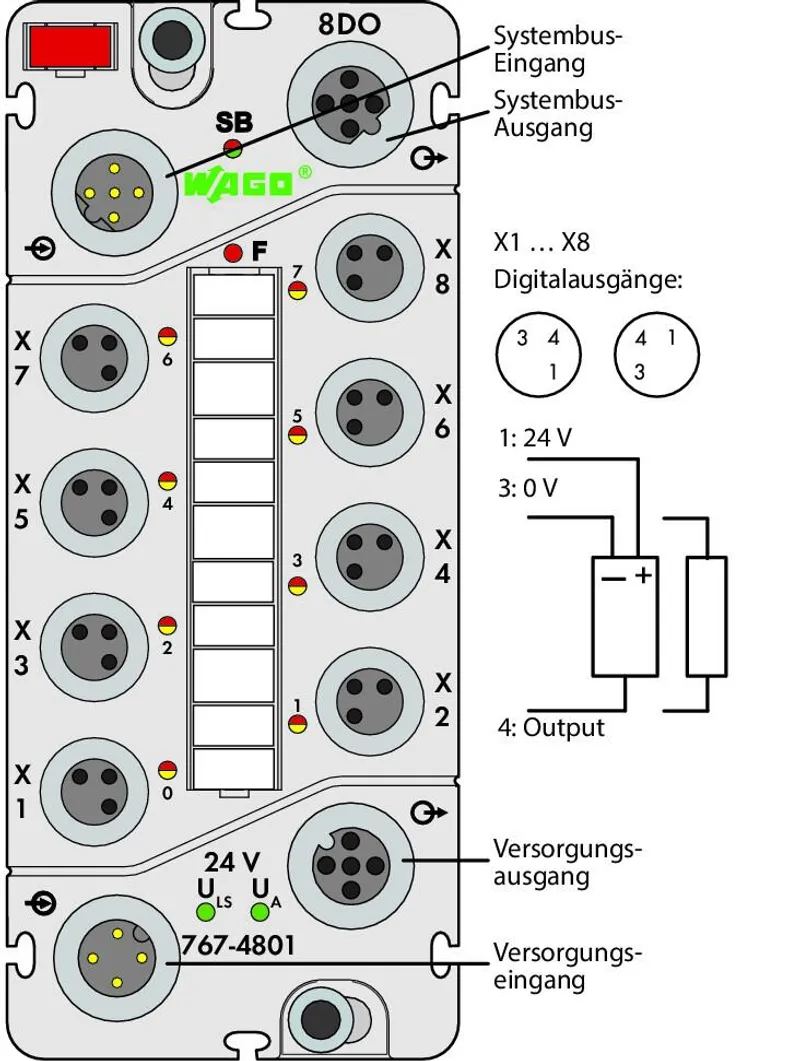

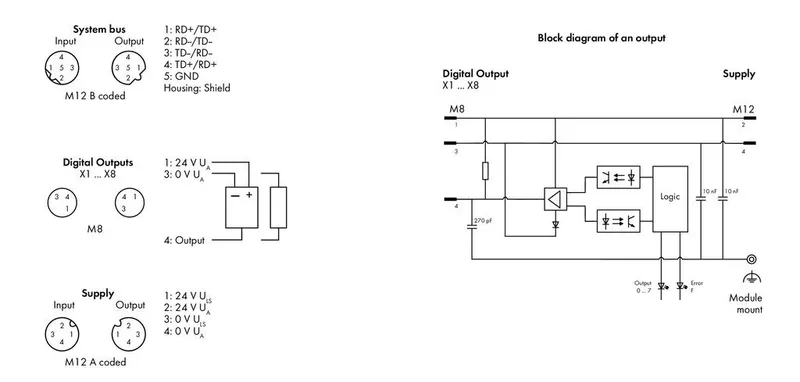

Connection technology: I/O	8 x M8 socket; 3-pole
Connection technology: field supply	1 x M12 plug; 4-pole; A-coded; 1 x M12 socket; 4-pole; A-coded
Connection technology: system supply	1 x M12 socket; 4-pole; A-coded; 1 x M12 plug; 4-pole; A-coded
Connection technology: system bus	1 x M12 socket, 5-pole, B-coded, shielded; 1 x M12 plug, 5-pole, B-coded, shielded
Connection requirement (permissible cable length)	30 m
Connection requirement (permissible cable type)	Digital outputs: unshielded

Physical data

Width	50 mm / 1.969 inches
Height	35.7 mm / 1.406 inches
Depth	117 mm / 4.606 inches

Material data

Housing material	Polyamide (PA), Makrolon (address switch cover), flammability per UL94-V0, halogen/silicon-free
Fire load	0.015 MJ
Weight	252 g
Conformity marking	CE
Encapsulation	Polyurethane (PUR), halogen/silicon-free

Environmental requirements

Ambient temperature (operation)	-25 … +60 °C
Ambient temperature (storage)	-40 … +85 °C
Protection type	IP67
Protection class	III
Operating altitude	−1000 … 2000 m; Air pressure: 1080 … 795 hPa
Relative humidity (without condensation)	95 %
Vibration resistance	5g per IEC 60068-2-6
Shock resistance	Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29
EMC immunity to interference	per EN 61000-6-2
EMC emission of interference	per EN 61000-6-4
Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 %	0.1 ppm
Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 %	0.5 ppm

Commercial data

Product Group	15 (I/O System)
PU (SPU)	1 pcs
Packaging type	Box
Country of origin	DE
GTIN	4045454545208
Customs tariff number	85371098990
End of Sale	2018-09-30
End of Production	2018-10-05
End of Delivery	2018-10-15
End of Service and Repair	2020-09-29

Product Classification

UNSPSC	32151705
ECCN	NO US CLASSIFICATION

Environmental Product Compliance

CAS-No.	1303-86-2, 1317-36-8, 7439-92-1, 79-94-7
REACH Candidate List Substance	2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Diboron trioxide, Lead, Lead monoxide
RoHS Compliance Status	Compliant,With Exemption
RoHS Exemption	6(c), 7(a), 7(c)-I, 7(c)-II
SCIP notification number (Bulgaria)	32aceeec-67b8-4365-93a7-3c19fe8bacae
SCIP notification number (Czech Republic)	b5efc888-bee4-40c7-bcfc-78b0d45ed2ba
