Wago 756-9411/060-000

Accessories; M12 plug, axial; 5-pole

MPN: 756-9411/060-000
Category: Interface Modules and System Wiring

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Wago parts? We buy surplus →

What is the Wago 756-9411/060-000?

Accessories; M12 plug, axial; 5-pole 756-9411/060-000

Specifications

Notes

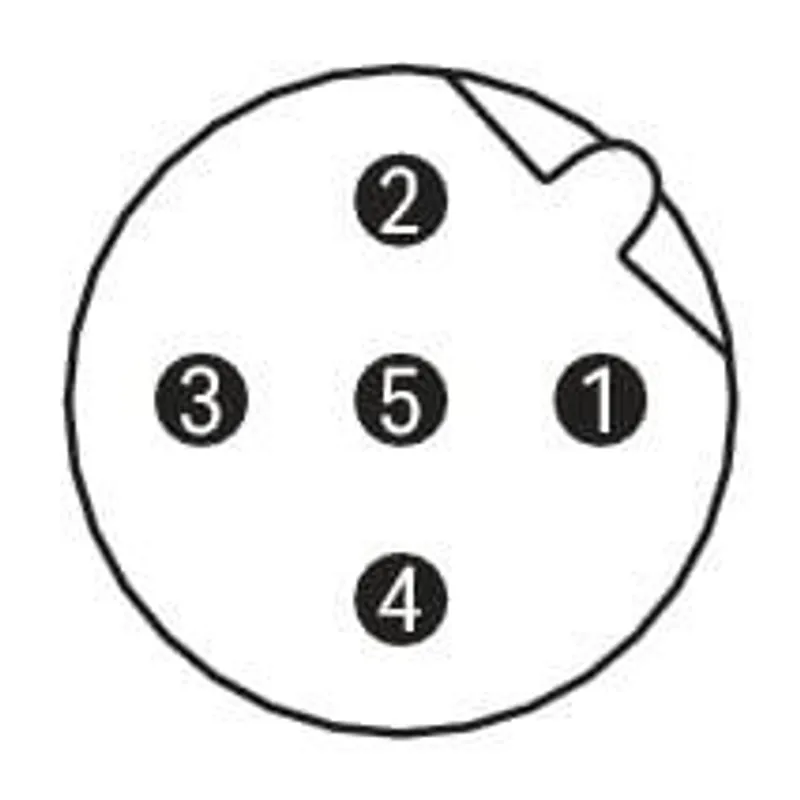

Note	When assembling S-Bus cables, crimp the four ground wires together in a 0.75 mm² ferrule and connect them to pin 5. S-Bus = System Bus

Technical data

Connection type	M12 plug
Pole number	5
Connection point (shielded)	yes
Cable connection direction to mating direction	0 °
Connector interface coding (cable/adapter) 1 1	B-coded
Contact resistance	≤3 mΩ

Connection data

Connection type	Screw clamp technology
Solid conductor	0.14 … 0.75 mm² / 20 AWG

Mechanical data

Connectable sheathed cable diameter	6 … 8 mm
Housing material	Die-cast zinc, nickel-plated
Contact material	CuZn
Contact plating	Gold
Seal material	Sealing ring: neoprene; O-ring: Viton
Mating cycles (max.)	100
Weight	46 g

Environmental requirements

Ambient temperature (operation)	-40 … +85 °C
Protection type	IP67
Note on protection type	in locked state
Pollution degree	3

Commercial data

Product Group	23 (I/O passive and accessories)
PU (SPU)	1 pcs
Packaging type	box
Country of origin	DE
GTIN	4055143121538
Customs tariff number	85366990990

Product Classification

UNSPSC	39121413
eCl@ss 10.0	27-24-26-92
eCl@ss 9.0	27-24-26-92
ETIM 9.0	EC002584
ETIM 10.0	EC002584
ECCN	NO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance Status

Compliant,No Exemption
