Sensor/Actuator cable; M8 socket; straight; M12A plug; straight; 4-pole; Length: 2 m
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Interface Modules and System Wiring |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 756-5507/040-020 be shipped?
756-5507/040-020 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-5507/040-020 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-5507/040-020 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-5507/040-020, subject to availability and destination.
<p><b>Short description:</b></p><ul><li>PUR, halogen-free</li><li>Suitable for drag chains</li><li>Good resistance to microbes, hydrolysis, oil, chemicals and UV radiation. </li><li>Good chemical resistance.</li><li>Cable used: UL listed</li></ul>
Specifications
Technical data - General information
| Operating voltage | AC/DC 60 V |
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 2 m |
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector

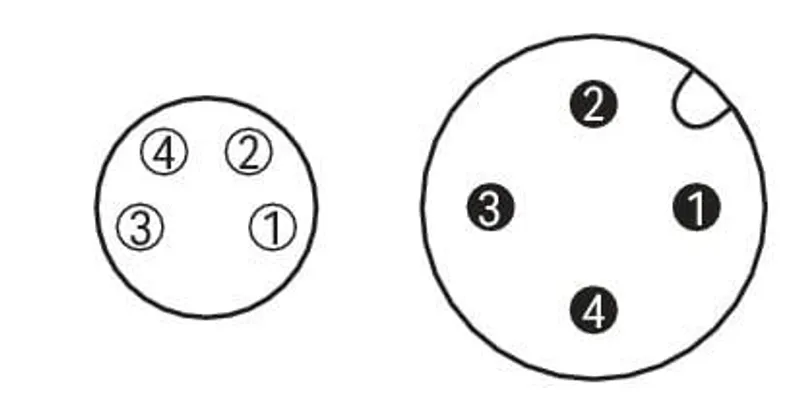

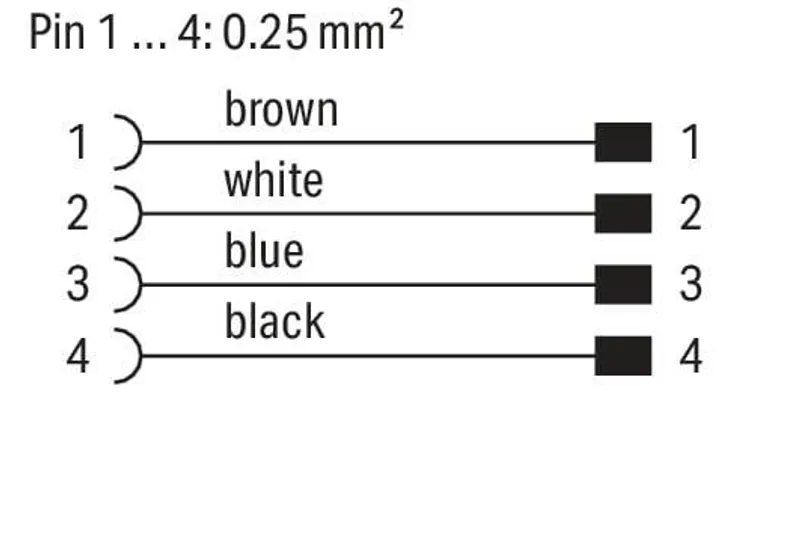

| Connection type | M8 socket - M12 plug |
| Pole number | 4 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 0.6 … 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4044918975940 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 29c32841-89fd-4c9b-ac30-96772610f593 |
| SCIP notification number (Belgium) | 9130e8d4-e44e-4459-97cb-a72a064faa15 |
| SCIP notification number (Bulgaria) | b9687eec-4e7a-4b70-a724-331f6d22ba82 |
| SCIP notification number (Czech Republic) | 7eeb4c4e-8d21-48dc-96fc-08a8b8a75bee |
| SCIP notification number (Denmark) | e31f6f2f-8893-4de1-90fa-9151b5f64554 |
| SCIP notification number (Finland) | 9a9c1fe7-6e7c-45c5-a4e7-768257931ebe |
| SCIP notification number (France) | 68d6e953-2ce9-4a5c-8bc4-2522b405b5bb |
| SCIP notification number (Germany) | 4fb8096b-bf89-4a28-86f5-57fabfc5e72e |
| SCIP notification number (Hungary) | bb9e90a2-df66-4034-8217-25df4991081a |
| SCIP notification number (Italy) | ae90853f-9cb6-44bd-8a3c-ba53af5889d7 |
| SCIP notification number (Netherlands) | e055b7ab-2ae5-4097-97e1-f680351469f3 |
| SCIP notification number (Poland) | 36aff936-4304-4e2d-9814-e499accf46bc |
| SCIP notification number (Romania) | 347c05ee-b677-4f15-ba75-8a28a002bc4d |
| SCIP notification number (Sweden) | e8668582-392e-406b-93a8-88c53af099e3 |
