Wago 756-5403/050-010
Sensor/Actuator cable; M12A socket; angled; M12A plug; straight; 5-pole; Length: 1 m
- MPN
- 756-5403/050-010
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Wago 756-5403/050-010?
Short description:
PUR, halogen-free
Suitable for drag chains
High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
High chemical resistance
Cable used: UL listed
Specifications
Technical data - General information
| Operating voltage | 250 VAC/DC |
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1 m |
| Type code | LiF9YH-11YH or LiF9YC11YFHF |

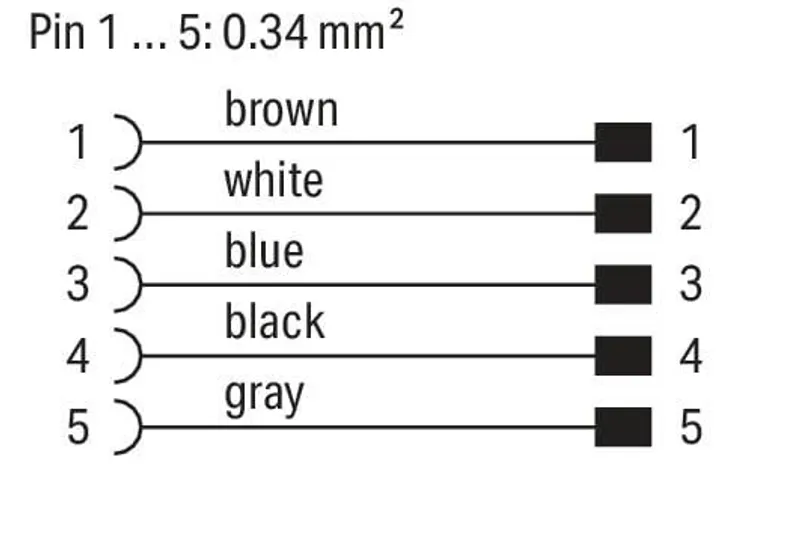

| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |

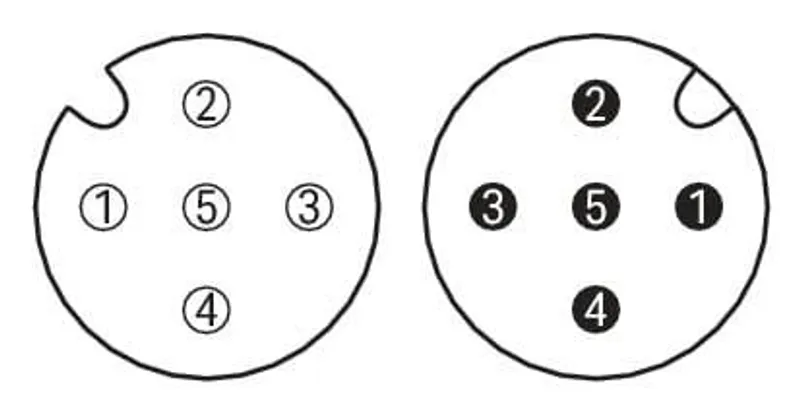

Technical data - Connector
| Connection type | M12 Socket - M12 plug |
| Pole number | 5 |
| Cable connection direction to mating direction | 90 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4044918975650 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | f5bb70b4-9a0d-49c2-bac3-e875831e6a49 |
| SCIP notification number (Belgium) | a9e9d779-88a4-4eb0-bf8a-e47a9567262f |
| SCIP notification number (Bulgaria) | 951cfebb-f8b0-420f-828f-3333904bc874 |
| SCIP notification number (Czech Republic) | bbccadfb-c5d1-4802-9a0e-f9a4ea2ca416 |
| SCIP notification number (Denmark) | 1bee19c8-6642-42c2-8b73-1c931cc69bfd |
| SCIP notification number (Finland) | e4560381-8b2c-4a27-8a1b-37abfe1d66c8 |
| SCIP notification number (France) | 8b4a540b-3a75-42b4-ad20-0f199610f462 |
| SCIP notification number (Germany) | d2d0a1e9-a512-427a-81db-41c590a62bdf |
| SCIP notification number (Hungary) | c8668bfa-2f58-42ef-889e-b2b837828eda |
| SCIP notification number (Italy) | db785c2f-c4c7-4a4b-865c-aa3afce08823 |
| SCIP notification number (Netherlands) | b4ce095b-030c-4804-9067-5b77bd636b38 |
| SCIP notification number (Poland) | 6ded1d95-325c-4aff-8990-867df953c0c3 |
| SCIP notification number (Romania) | 4caae877-f445-492d-be4d-710c26091536 |
| SCIP notification number (Sweden) | 03dae947-2da8-40a6-9f06-3edb8d775abf |
