Wago 756-5402/050-020
Sensor/Actuator cable; M12A socket; straight; M12A plug; angled; 5-pole; Length: 2 m
- MPN
- 756-5402/050-020
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Wago 756-5402/050-020?
Short description:
PUR, halogen-free
Suitable for drag chains
High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
High chemical resistance
Cable used: UL listed
Specifications
Technical data - General information
| Operating voltage | 250 VAC/DC |
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 2 m |
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector

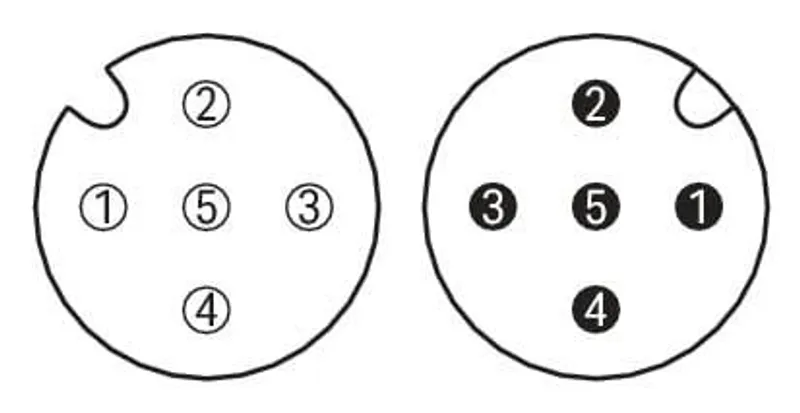

| Connection type | M12 Socket - M12 plug |

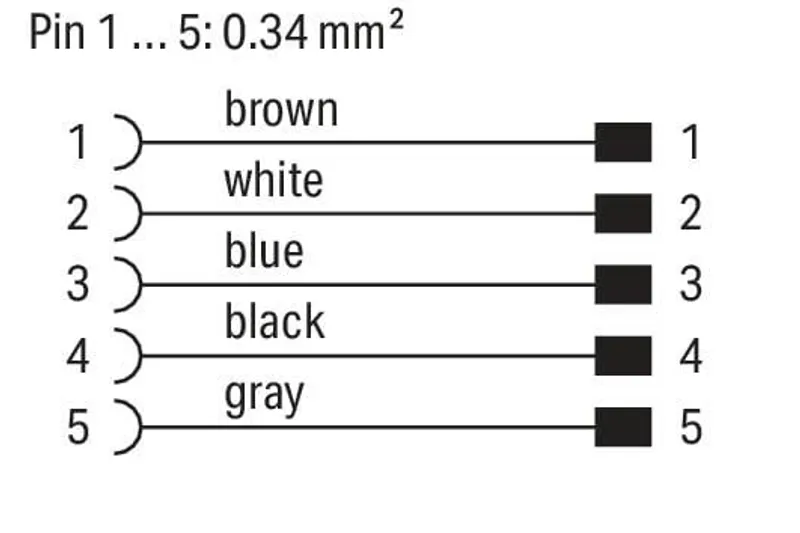

| Pole number | 5 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 90 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4044918975643 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 984f482e-c1ca-48b5-ba64-c075a4afe022 |
| SCIP notification number (Belgium) | 2257b797-a569-43d5-a0e2-63f22ea4be8d |
| SCIP notification number (Bulgaria) | 2dbd54d5-b6bb-411c-a5f1-54e61595d9d9 |
| SCIP notification number (Czech Republic) | 84dd446a-5f5d-4a21-b8df-86bc422914b6 |
| SCIP notification number (Denmark) | 7c57a703-0f2c-4785-a14f-c7fd77c15e2a |
| SCIP notification number (Finland) | 1e399e65-6fef-44a3-9a77-08da7fb5860d |
| SCIP notification number (France) | 89e31e3d-a160-4478-b73f-ee761007a790 |
| SCIP notification number (Germany) | 47fdc979-b432-4180-9903-5937560c0087 |
| SCIP notification number (Hungary) | da39a442-04a9-4606-ae38-646e5bee3687 |
| SCIP notification number (Italy) | db2e21e0-c647-4d0c-87b6-47b719ab36af |
| SCIP notification number (Netherlands) | fce609df-9815-4db9-a30a-ed98d53590dd |
| SCIP notification number (Poland) | 9b23de87-801b-4b9b-a79a-510aa86fd61f |
| SCIP notification number (Romania) | 9059facb-83c7-4026-9a74-aa44d23201e6 |
| SCIP notification number (Sweden) | 5a665f62-862b-4a14-8d06-ae3ed16d7821 |
No matching specifications
756-5402/050-020: frequently asked questions
When can 756-5402/050-020 be shipped?
756-5402/050-020 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-5402/050-020 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-5402/050-020 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-5402/050-020, subject to availability and destination.
