Sensor/Actuator cable; M12A socket; straight; M12A plug; angled; 3-pole; Length: 1 m
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Interface Modules and System Wiring |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 756-5402/030-010 be shipped?
756-5402/030-010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-5402/030-010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-5402/030-010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-5402/030-010, subject to availability and destination.
<p><b>Short description:</b></p><ul><li>PUR, halogen-free</li><li>Suitable for drag chains</li><li>High resistance to microbes, hydrolysis, oil, chemicals and UV radiation </li><li>High chemical resistance</li><li>Cable used: UL listed</li></ul>
Specifications
Technical data - General information
| Operating voltage | 250 VAC/DC |
| Operating current | 4 A |
| Rated impulse withstand voltage | 2.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1 m |
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector

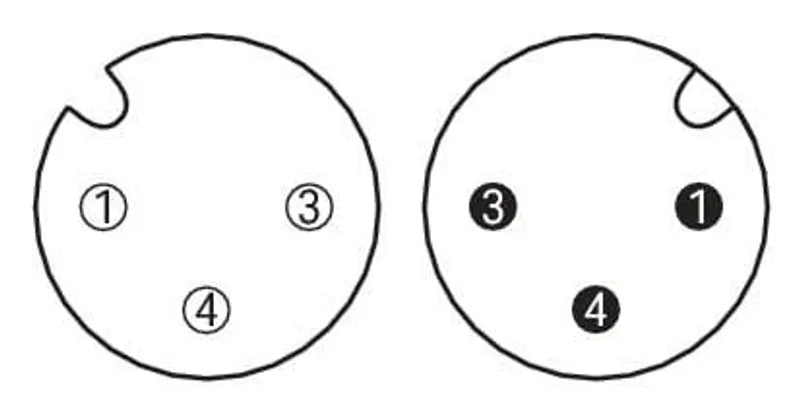

| Connection type | M12 Socket - M12 plug |
| Pole number | 3 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 90 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4044918975049 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 600a5d20-be77-40e7-8b8a-07cff248fc45 |
| SCIP notification number (Belgium) | d06569ec-769f-4fa9-bbe0-5568405b818b |
| SCIP notification number (Bulgaria) | ae76a0ba-5166-4b3f-8b61-81d0e7f94d0c |
| SCIP notification number (Czech Republic) | fc85ba4f-2e49-4e7d-a27f-c942a1ab89be |
| SCIP notification number (Denmark) | c4871b8f-ebf3-4b39-af62-c563ce10ea55 |
| SCIP notification number (Finland) | 46fe83e6-0ce4-4647-9444-9d2e5e9d5c6a |
| SCIP notification number (France) | 06dada1f-5018-4ea2-82f7-750898e073e4 |
| SCIP notification number (Germany) | 8e25bc0c-9c7e-444f-bc52-539be6dce4d5 |
| SCIP notification number (Hungary) | 7c20c172-80ed-48a6-b1d6-f2de0abc0ed2 |
| SCIP notification number (Italy) | ba992c95-3fe2-4d59-a821-bebfd71dee4e |
| SCIP notification number (Netherlands) | 4b8fad86-de69-433b-8a11-c677e8aa797b |
| SCIP notification number (Poland) | 5198b0eb-7f9d-4a5f-9d37-cc27a1d2c67b |
| SCIP notification number (Romania) | 302ccd46-9dc2-4896-867c-e5dc729ffdd8 |
| SCIP notification number (Sweden) | 3a0430b6-d539-49c3-8179-3067e89fcf41 |
