Wago 756-5311/030-100
Sensor/Actuator cable; M12A plug; straight; 3-pole; Length: 10 m
- MPN
- 756-5311/030-100
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Wago 756-5311/030-100?
Short description:
PUR, halogen-free
Suitable for drag chains
High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
High chemical resistance
Cable used: UL listed
Specifications
Technical data - General information
| Operating voltage | 250 VAC/DC |
| Operating current | 4 A |
| Rated impulse withstand voltage | 2.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 10 m |
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector

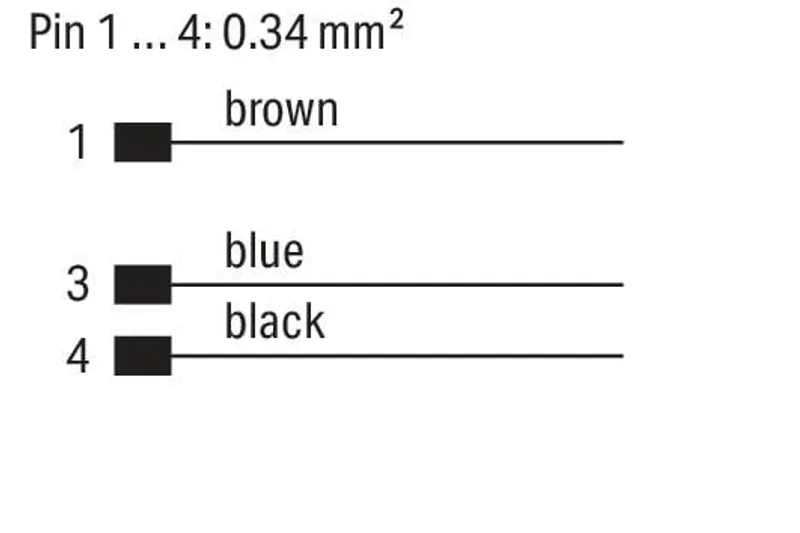

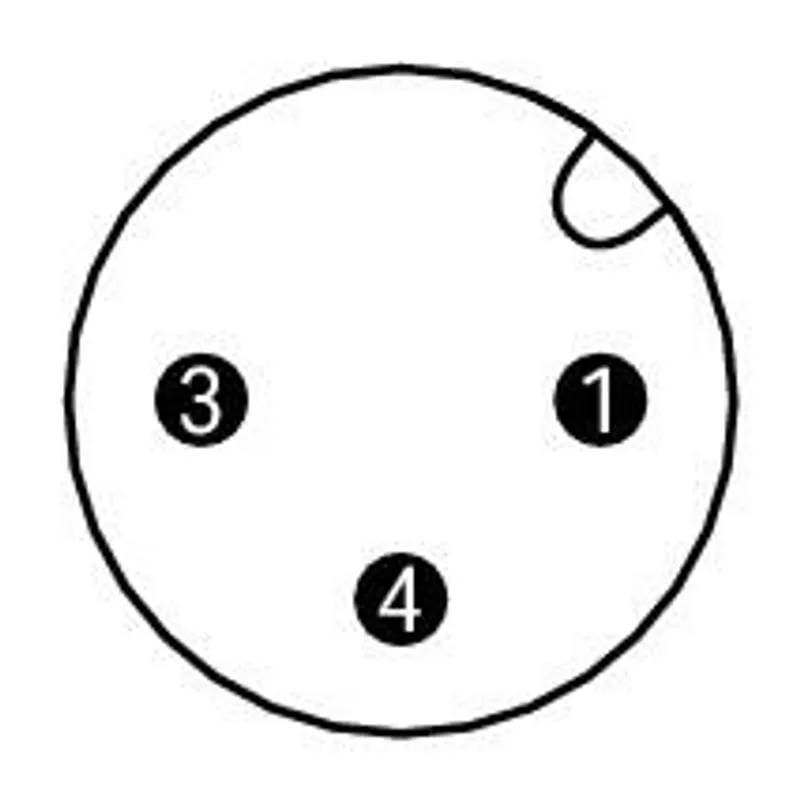

| Connection type | M12 plug - free end |
| Pole number | 3 |
| Cable connection direction to mating direction | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4045454942076 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121609 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 13774adc-6953-4c2d-84e8-dd145aa92de5 |
| SCIP notification number (Belgium) | 6c3cd9d8-1133-4bfc-82fd-c0a7fca5d4f6 |
| SCIP notification number (Bulgaria) | 6dcd226a-90b0-4443-83cc-a6f0fadf2f87 |
| SCIP notification number (Czech Republic) | d996082a-8ec0-4f81-9374-9cb7274dee01 |
| SCIP notification number (Denmark) | f46cdb52-8603-41a0-9764-385fadc4fe07 |
| SCIP notification number (Finland) | aa3665a7-984d-4ec1-bc6f-b96e90abce67 |
| SCIP notification number (France) | e20666b1-a118-4a66-bff3-6e11f95273e7 |
| SCIP notification number (Germany) | 8b853661-710b-4b6a-a63a-2814746cea51 |
| SCIP notification number (Hungary) | 02315c17-0391-4a41-8e57-d31f7c471196 |
| SCIP notification number (Italy) | a452bab3-1fc1-4125-816e-3a4eaa63d9a9 |
| SCIP notification number (Netherlands) | bff35ae7-5163-47d2-92ff-6103126b94bc |
| SCIP notification number (Poland) | e2f3d4a9-4641-455e-aa97-109bef45a0f8 |
| SCIP notification number (Romania) | 22e990ea-fa7c-4215-b0ba-61d76ad62813 |
| SCIP notification number (Sweden) | 39173af5-e175-4ac9-9262-94047f73110d |
No matching specifications
756-5311/030-100: frequently asked questions
When can 756-5311/030-100 be shipped?
756-5311/030-100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-5311/030-100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-5311/030-100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-5311/030-100, subject to availability and destination.
