Wago 756-5301/060-100
Sensor/Actuator cable; M12A socket; straight; 5-pole; Length: 10 m
- MPN
- 756-5301/060-100
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Wago 756-5301/060-100?
Short description:
PUR, halogen-free
Suitable for drag chains
High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
High chemical resistance
Cable used: UL listed
Specifications
Technical data - General information
| Operating voltage | 250 VAC/DC |
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | ≥1.6 x 1010 Ω/km |
| Contact resistance | 10 mΩ |
| Conductor resistance | < 57 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | Fixed: >4xØ; Flexible: >7.5xØ |
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 10 |
| Travel speed (max.) | 4 |
| Travel path (horizontal) max. | 15 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 10 m |

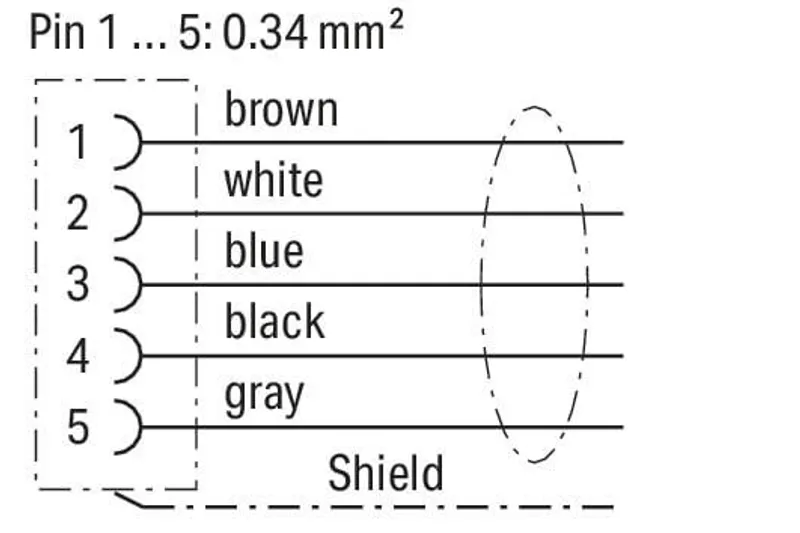

| Type code | Li9YC11Y-HF 5x0.34 mm² |
| Overall shield | Tinned copper braid, optical coverage approx. 80 % |
| Conductor configuration | Bare copper wire (7 x 0.25 mm) |
| Conductor insulation | Halogen-free PE |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector

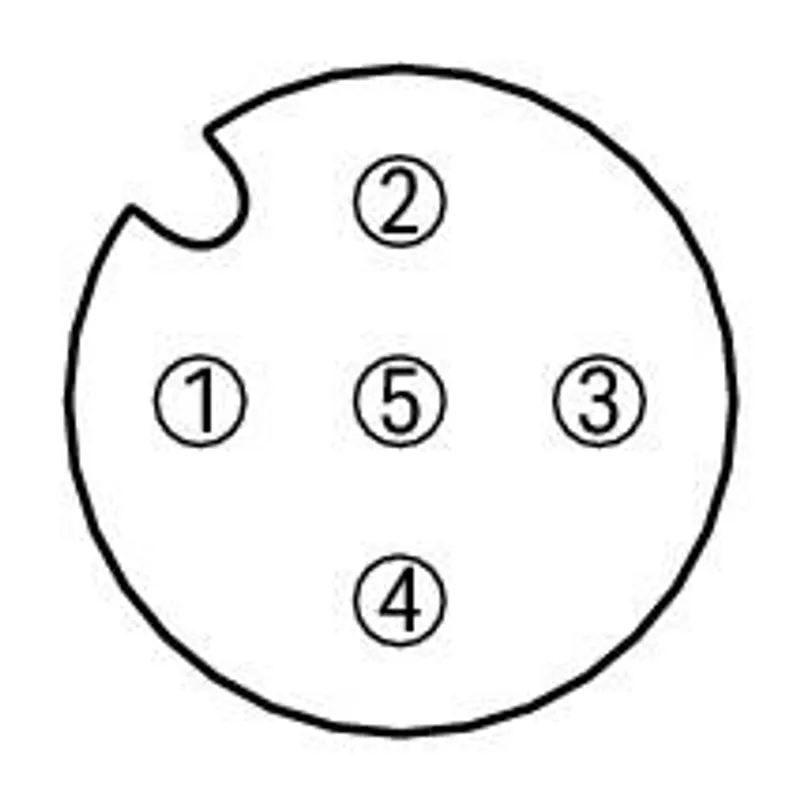

| Connection type | M12 Socket - free end |
| Pole number | 5 |
| Cable connection direction to mating direction | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4045454942021 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | fae8d8c0-df8c-471d-bcc2-69a9c3d90237 |
| SCIP notification number (Belgium) | e6305deb-9494-4110-9929-d8b562fd891a |
| SCIP notification number (Bulgaria) | 1addc3a0-2119-4108-8345-06396abb4876 |
| SCIP notification number (Czech Republic) | 7ea42221-fa65-4448-9d88-65e1bb3d9c7e |
| SCIP notification number (Denmark) | e2acb678-4e0a-4c90-932e-520e53815596 |
| SCIP notification number (Finland) | da2a9750-ce38-481d-9037-9c8af0ecb760 |
| SCIP notification number (France) | 41a5c77b-bb68-4bab-adee-ade87dc228e0 |
| SCIP notification number (Germany) | 88840c31-aeec-464f-9e82-a8389749dbd4 |
| SCIP notification number (Hungary) | f58cce41-81ac-4e19-b99e-7a3f21e75845 |
| SCIP notification number (Italy) | 364b6f10-55db-475e-9573-b4484d2d0f20 |
| SCIP notification number (Netherlands) | d78501e0-e55f-4e3c-96ef-e8c1701c9e1f |
| SCIP notification number (Poland) | 8901dd89-2e3f-45e7-bb19-6063ee5d4ae8 |
| SCIP notification number (Romania) | be83b88f-82c5-4877-afb4-032b648a4729 |
| SCIP notification number (Sweden) | 30cf50e0-1511-44ea-b1b8-41e5b9d5cc9a |
