Wago 756-5301/040-050
Sensor/Actuator cable; M12A socket; straight; 4-pole; Length: 5 m
- MPN
- 756-5301/040-050
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Wago 756-5301/040-050?
Short description:
PUR, halogen-free
Suitable for drag chains
High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
High chemical resistance
Cable used: UL listed
Specifications
Technical data - General information
| Operating voltage | 250 VAC/DC |
| Operating current | 4 A |
| Rated impulse withstand voltage | 2.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 5 m |
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |

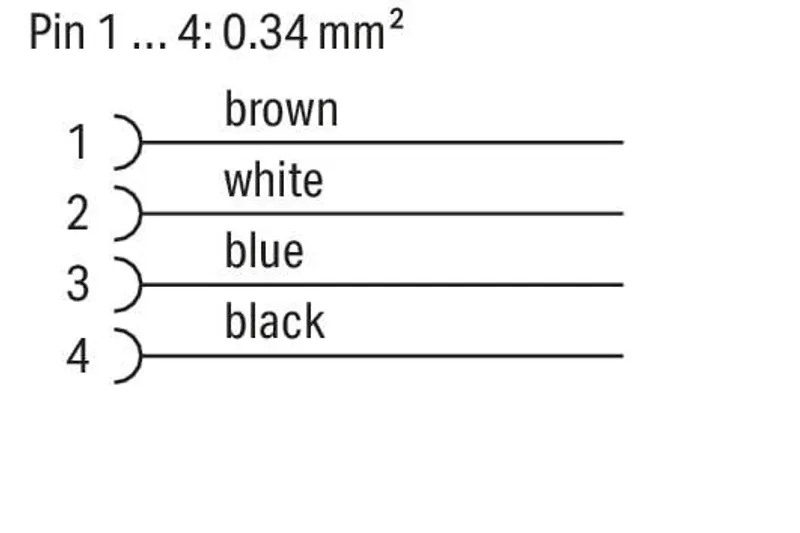

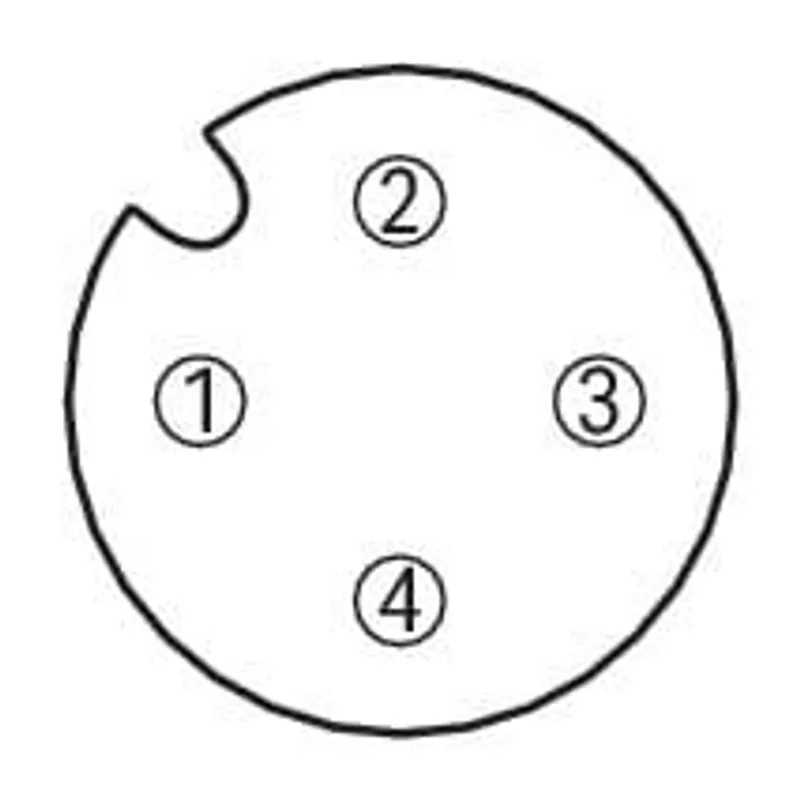

Technical data - Connector
| Connection type | M12 Socket - free end |
| Pole number | 4 |
| Cable connection direction to mating direction | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4044918974943 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 6a953b5b-1c4d-4ca9-a86c-2b4aaa072166 |
| SCIP notification number (Belgium) | cc1f19fe-9013-451b-9cef-7770e84c6fe5 |
| SCIP notification number (Bulgaria) | c40f0ca3-af53-4c53-9cca-bc0e165ebd3e |
| SCIP notification number (Czech Republic) | 0cf25345-29b5-49ac-add9-ba1979b923bc |
| SCIP notification number (Denmark) | bc643043-1d90-4443-ae03-a078e3ab9919 |
| SCIP notification number (Finland) | 1986c8e2-d8fe-42b0-ba5f-9cc57abf6cec |
| SCIP notification number (France) | 7778cf14-df8a-4395-8917-5791ff0152f2 |
| SCIP notification number (Germany) | 1a2c8156-2c36-4d9d-bfe9-020072005e88 |
| SCIP notification number (Hungary) | 71027152-495a-4543-baca-f8695cdaf398 |
| SCIP notification number (Italy) | 6827ad6d-a992-434c-9307-13e3b2baee06 |
| SCIP notification number (Netherlands) | 4744fe40-deed-4bfc-a380-7411bb51d2b4 |
| SCIP notification number (Poland) | 0a757249-be8b-4050-9399-959986675bb9 |
| SCIP notification number (Romania) | 9d683d0d-af57-40cb-bb7f-8acabf6868d4 |
| SCIP notification number (Sweden) | 8a616bee-c0b2-4610-9bf5-a302d409dc94 |
No matching specifications
756-5301/040-050: frequently asked questions
When can 756-5301/040-050 be shipped?
756-5301/040-050 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-5301/040-050 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-5301/040-050 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-5301/040-050, subject to availability and destination.
