Wago 756-5201/030-010
Sensor/Actuator cable; M8 socket; straight; M8 plug; straight; 3-pole; Length: 1 m
- MPN
- 756-5201/030-010
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Wago 756-5201/030-010?
Short description:
PUR, halogen-free
Suitable for drag chains
High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
High chemical resistance
Cable used: UL listed
Specifications
Technical data - General information
| Operating voltage | 60 VAC/DC |
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1 m |
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector

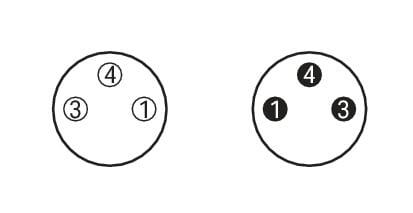

| Connection type | M8 socket - M8 plug |
| Pole number | 3 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 0.6 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4044918974547 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121609 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 2e6af981-9839-40c5-9fd9-bb60535eab29 |
| SCIP notification number (Belgium) | ba0cdcfb-a722-4cae-b7df-255f5ebf988e |
| SCIP notification number (Bulgaria) | 1c981189-4187-4d51-bedd-2dd71b4228b6 |
| SCIP notification number (Czech Republic) | ac375306-9c5d-4dd3-8861-aa7ea7f1ec2f |
| SCIP notification number (Denmark) | 6d6d83a4-f0af-41a2-9eca-b5a729dc8423 |
| SCIP notification number (Finland) | 62b176e9-b6d6-4847-9b3f-3588c35a21c0 |
| SCIP notification number (France) | bb5b3ac4-95e4-4a89-964d-be18e13dbc26 |
| SCIP notification number (Germany) | a3ce71fe-c2ce-4fc8-9196-9869daed2715 |
| SCIP notification number (Hungary) | cf9c9b90-780c-4dce-9f81-00ae4141a705 |
| SCIP notification number (Italy) | c8369c54-4431-4551-8223-658e59d059bd |
| SCIP notification number (Netherlands) | 17869bb6-e00d-4728-9f0c-edccbe8e1b0b |
| SCIP notification number (Poland) | 94b09f84-fa02-4fc7-991e-c06f958e2b94 |
| SCIP notification number (Romania) | a28a4820-95af-4ff2-9a70-89fb29403bae |
| SCIP notification number (Sweden) | e20412c6-c21d-44b2-9dc0-4720abbed45d |
No matching specifications
756-5201/030-010: frequently asked questions
When can 756-5201/030-010 be shipped?
756-5201/030-010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-5201/030-010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-5201/030-010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-5201/030-010, subject to availability and destination.
