Sensor/Actuator cable; M8 plug; angled; 3-pole; Length: 1.5 m
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Interface Modules and System Wiring |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 756-5112/030-015 be shipped?
756-5112/030-015 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-5112/030-015 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-5112/030-015 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-5112/030-015, subject to availability and destination.
<p><b>Short description:</b></p><ul><li>PUR, halogen-free</li><li>Suitable for drag chains</li><li>Good resistance to microbes, hydrolysis, oil, chemicals and UV radiation. </li><li>Good chemical resistance.</li><li>Cable used: UL listed</li></ul>
Specifications
Technical data - General information
| Operating voltage | AC/DC 60 V |
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1.5 m |
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector

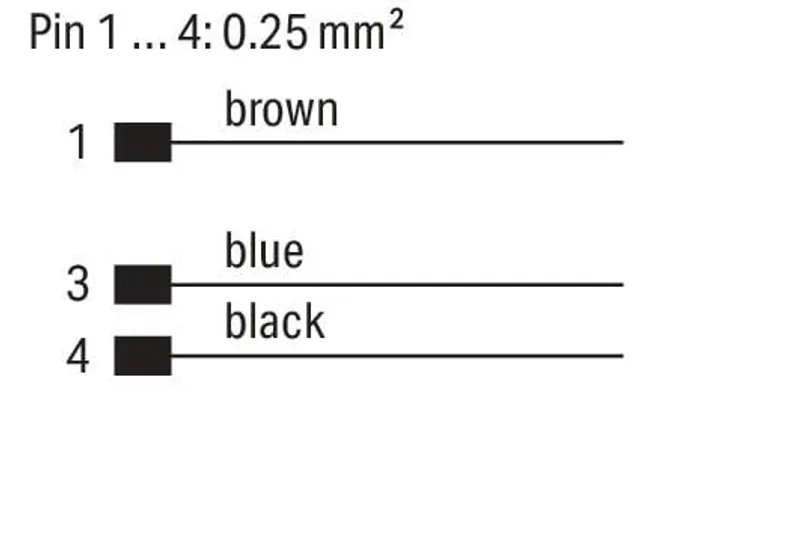

| Connection type | M8 plug - free end |

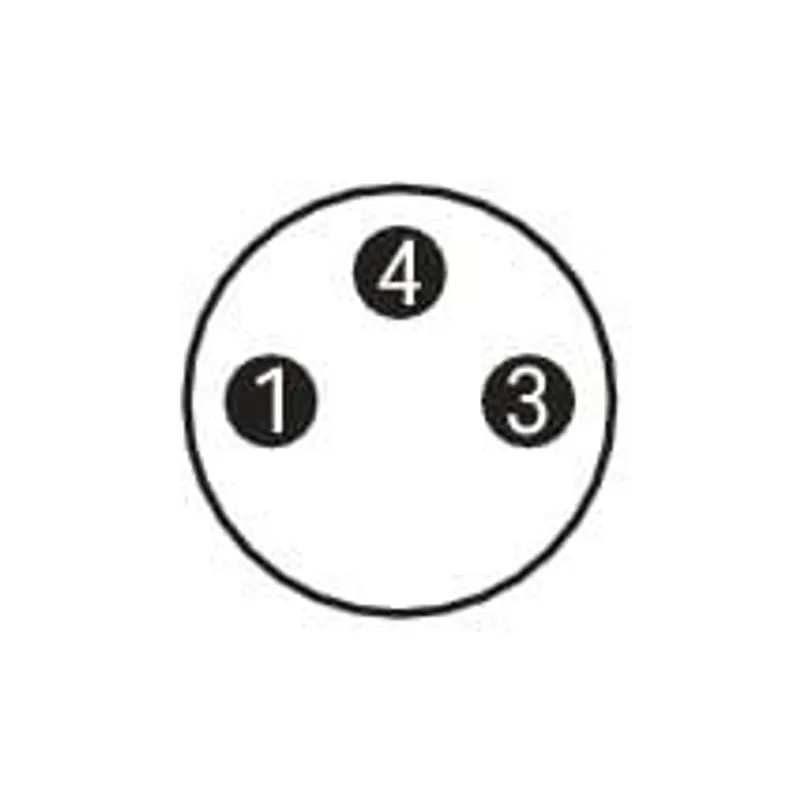

| Pole number | 3 |
| Cable connection direction to mating direction | 90 ° |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 0.6 Nm |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4045454941963 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | c94bd164-0b8e-41cd-8186-ac72e0d6c544 |
| SCIP notification number (Belgium) | 288dd266-c9cb-4b10-91b7-73cec23038b7 |
| SCIP notification number (Bulgaria) | 5c9edd3b-1ee8-481b-bd0f-4768d838e8c2 |
| SCIP notification number (Czech Republic) | 199c9458-00f2-41bc-8006-a7f2c854c17d |
| SCIP notification number (Denmark) | 26cc430f-d6cd-4f21-bb9b-9e1deb157026 |
| SCIP notification number (Finland) | de24c9a6-3b7c-42a0-b3ea-2819bf0cfa9d |
| SCIP notification number (France) | 4cd18777-7073-4234-885e-782efd963bca |
| SCIP notification number (Germany) | f97bb01f-fb95-4a1a-803a-20794470e0b3 |
| SCIP notification number (Hungary) | e0ee3d68-9345-4270-8fea-78d9e7e6ffe6 |
| SCIP notification number (Italy) | cc3b2999-0012-44f7-9ed9-e8ba79a888f6 |
| SCIP notification number (Netherlands) | ba3e6cbc-1be1-4e2b-aada-16a297c6fca3 |
| SCIP notification number (Poland) | 01925ff5-dd72-470d-b585-b9ef9d2b9a9a |
| SCIP notification number (Romania) | 8366a75b-8272-4613-9173-a7b7e8a6cd73 |
| SCIP notification number (Sweden) | ca8b183f-0016-4eae-b4cb-38ef72cbddf7 |
