Power cable; M12L socket; angled; 5-pole; Length: 5 m

Name: Wago 756-3502/050-050 – Power cable; M12L socket; angled; 5-pole; Length: 5 m
Brand: Wago
SKU: 756-3502/050-050

MPN: 756-3502/050-050 · Brand: Wago

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Interface Modules and System Wiring
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 756-3502/050-050 be shipped?

756-3502/050-050 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 756-3502/050-050 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 756-3502/050-050 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-3502/050-050, subject to availability and destination.

Short description:

These power cables are an accessory for the WAGO I/O System Field.

Use them as flexible, flame-retardant and halogen-free supply cables for industrial mechanical engineering applications – particularly those with high requirements, e.g., for use in cable chains (drag chains) and moving machine parts.

Strong resistance to microbes and hydrolysis

Good to very good weather resistance (UV and ozone)

High resistance against welding sparks

Excellent chemical and oil resistance

Silicon- and PVC-free

Free from paint-wetting impairment substances

Flexible at low temperatures

Specifications

Technical data - General information

Operating voltage	63 VDC per IEC 60664-1
Operating current	16 A
Rated impulse withstand voltage	1.5 kV per IEC 61076-2-111
Insulation resistance	≥108 Ω
Contact resistance	5 mΩ
Conductor resistance	≤ 13.7 Ω/km
Pollution degree	3 per IEC 60664-1
Protection type	IP68
Ambient temperature (operation)	-40 … +90 °C (UL max. +80 °C)
Ambient (operating) temperature (static)	-40 … +90 °C
Ambient (operating) temperature (dynamic)	-30 … +90 °C

Technical data - Drag chain compatible

Ambient air (operating) temperature in drag chain	-25 … +60 °C
Bending radius	Fixed: >4xØ; Flexible: >7.5xØ
Bending cycles	10 Mio.
Torsional capacity	270

Technical data - Other properties

Note	Exclusion of hazardous substances per: 200/53/EC, 2003/11/EC, (EC) No. 1907/2006, 2015/863/EU

Technical data - Cable

Cable length	5 m
Type code	LiF9YH-11Y-0B 5x1.5mm²
Cable type	Design per UL + CSA Style 20234

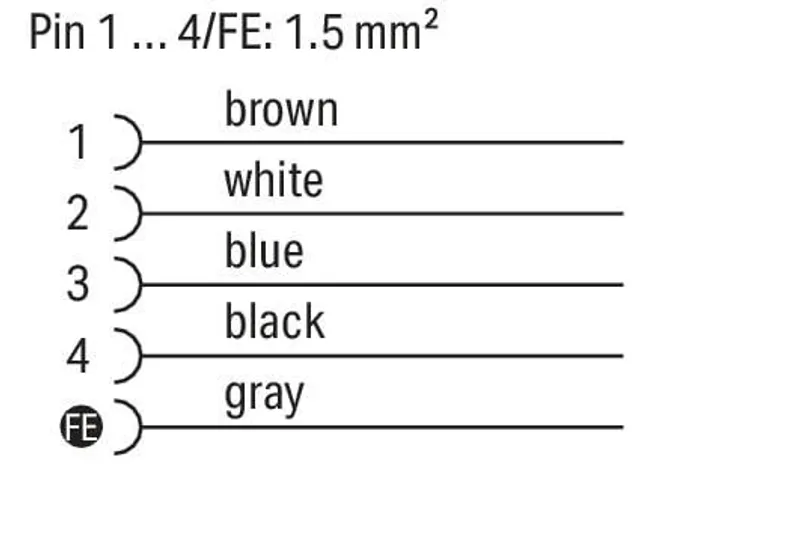

Conductor configuration	Bare copper wire (84 x 0.15 mm)
Conductor insulation	PP9Y (halogen-free)
Sheath material	Polyurethane (PUR), halogen-free per VDE 0472, Part 815; flame-retardant per IEC 60332-1-2, VDE 0482-332-1-2, UL vertical Flame test VW-1, CSA FT-1
Sheathed cable color	gray

Technical data - Connector

Connection type	M12 socket - Free end

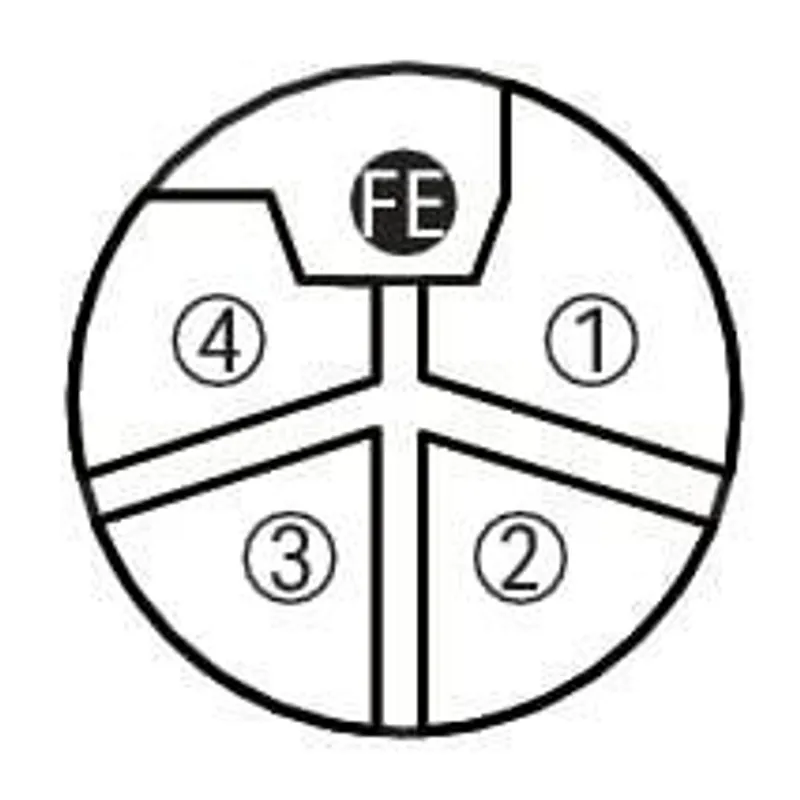

Pole number	5
Cable connection direction to mating direction	90 °
Connector interface coding (cable/adapter) 1 1	L-coded
Housing material	TPU/TPU, black (~ RAL 9005)
Contact material (connector)	CuZn
Contact plating (connector)	Ni/Au (0.2 µm Au over Ni)
Connector	Hexagon knurled nut: CuZn; Knurled nut surface: nickel-plated; Sealing ring: FPM/FKM
Tightening torque	1 Nm
