Wago

Wago 756-3202/120-100

Connecting cable; 12-pole; Length: 10 m

MPN: 756-3202/120-100
Category: Sensor/Actuator Boxes

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Wago parts? We buy surplus →

What is the Wago 756-3202/120-100?

Connecting cable; 12-pole; Length: 10 m 756-3202/120-100

Specifications

Technical data

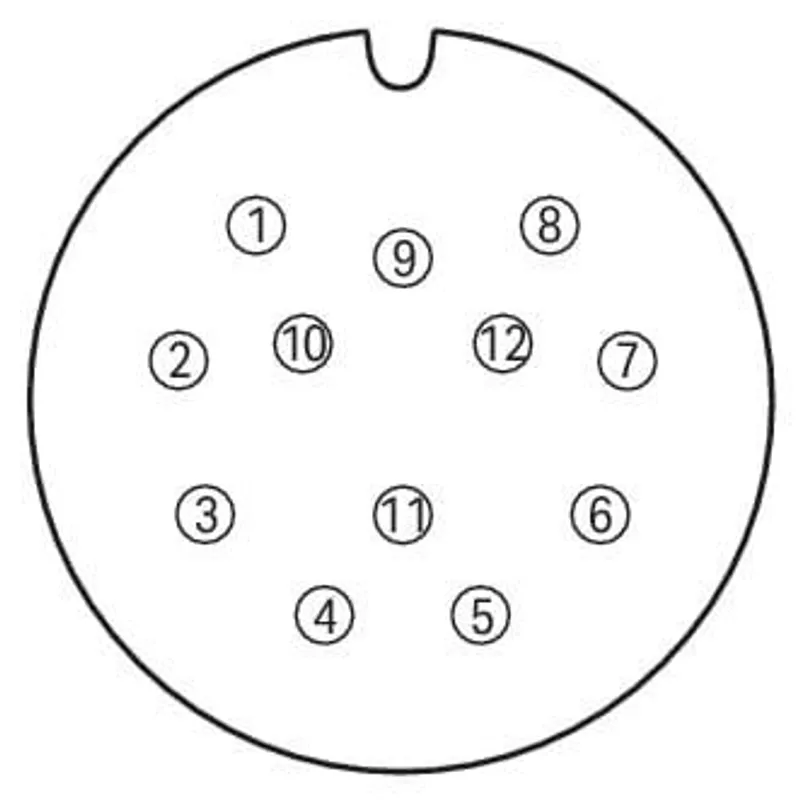

Connection type	M23 socket - free end
Pole number	12
Cable connection direction to mating direction	90 °
Cable length	10 m
Operating voltage	≤ 300 V
Operating current	8 A
Rated impulse withstand voltage	≥ 2.0 kV rms

Mechanical data

Bending cycles	2 Mio.
Drag chain capability	yes
Weight	1081 g
Color	black

Environmental requirements

Ambient (operating) temperature (dynamic)	-25 … +80 °C
Ambient (operating) temperature (static)	-40 … +90 °C
Protection type	IP67

Commercial data

Product Group	23 (I/O passive and accessories)
PU (SPU)	1 pcs
Packaging type	box
Country of origin	DE
GTIN	4044918569019
Customs tariff number	85444290900

Product Classification

UNSPSC	26121629
eCl@ss 10.0	27-06-03-11
eCl@ss 9.0	27-06-03-11
ETIM 9.0	EC001855
ETIM 10.0	EC001855
ECCN	NO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance Status

Compliant,No Exemption
