Wago 756-1305/060-002
System bus cable; M12B socket; straight; M12B plug; straight; 5-pole; Length 0.2 m
- MPN
- 756-1305/060-002
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Wago 756-1305/060-002?
Short description:
PUR, halogen-free
Silicon- and CFC-free
High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
High chemical resistance
Cable used: UL listed
Specifications
Technical data
| Connection type | M12 socket - M12 plug |

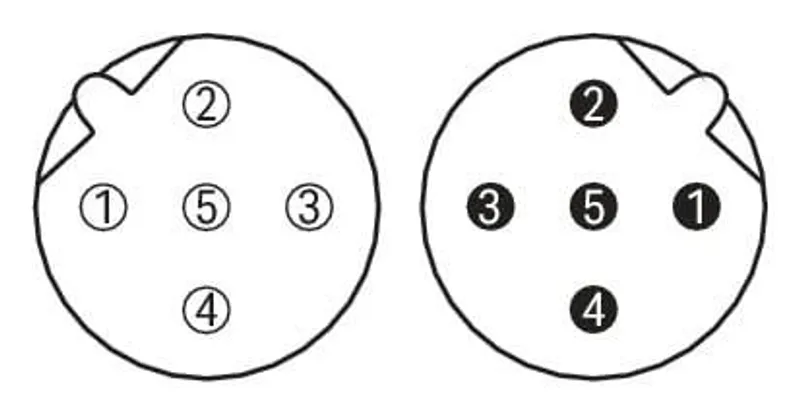

| Pole number | 5 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | B-coded |
| Connector interface coding (cable/adapter) 2 1 | B-coded |
| Cable length | 0.2 m |
| PLC manufacturer | WAGO |
| Operating voltage | 60 V |
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV per IEC 61076-2-101 |
| Contact resistance | 10 mΩ |
| Insulation resistance | ≥5 x 108 Ω |
| Conductor resistance | ≤ 145 Ω/km |
Mechanical data
| Bending radius | 5 x cable diameter (min.) |
| Type code | KS-02YS(ST+C)11Y 4x2xAWG26/7-100 Ω, shielded |
| Shield | Aluminum-laminated foil and tinned copper braid, optical coverage approx. 65 % |
| Conductor configuration | Bare copper wire (26/7 AWG) |
| Conductor insulation | Zell-PE; Core Ø: 1.0 mm (max.) |
| Housing material | TPU/TPU, black (~ RAL 9005) |
| Contact material | CuZn |
| Contact plating | CuNi/Au |
| Material properties of the connections | Hexagon knurled nut: CuZn; Knurled nut surface: nickel-plated; Sealing ring: FPM (Viton) |
| Mating cycles (max.) | 100 |
| Tightening torque | 1 Nm |
| Weight | 37.4 g |
| Color | yellow |
Environmental requirements
| Ambient temperature (operation) | -25 … +60 °C |
| Protection type | IP67 |
| Pollution degree | 3/2 per IEC 60664-1 |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454126728 |
| Customs tariff number | 85444290900 |
| End of Sale | 2024-05-01 |
| End of Production | 2024-05-15 |
| End of Delivery | 2024-06-01 |
| End of Service and Repair | 2025-06-01 |
| Support period for security updates | 2029-07-01 |
Product Classification
| UNSPSC | 26121629 |
| eCl@ss 10.0 | 27-06-18-01 |
| eCl@ss 9.0 | 27-06-18-01 |
| ETIM 9.0 | EC000237 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 523a5c45-2ec6-4816-90a0-fb1523eb5fcd |
| SCIP notification number (Belgium) | 7f09c58c-893a-45e9-8d40-baf40e54c88b |
| SCIP notification number (Bulgaria) | 435f1a91-3318-40f5-822d-7bb6964ea5ba |
| SCIP notification number (Czech Republic) | c76751de-af10-4113-b9e6-8b137cf7b878 |
| SCIP notification number (Denmark) | 624a35b5-b45b-4265-85e2-08d17cba874b |
| SCIP notification number (Finland) | e3c0f7a5-7b23-42a3-8fe7-411f606b267e |
| SCIP notification number (France) | 55074f68-4a4b-418c-883b-bbac7fb4fdac |
| SCIP notification number (Germany) | 95867ebc-3a88-49df-8016-5427070a3ea1 |
| SCIP notification number (Hungary) | dde1d1c4-e903-4534-a6fe-2f302b619c9b |
| SCIP notification number (Italy) | 9213de7e-95cc-421a-aa6a-37b1ba54f77a |
| SCIP notification number (Netherlands) | f9c85485-690d-43c6-bca9-0f09465350b2 |
| SCIP notification number (Poland) | 83274b31-07fd-4390-9450-05441065a1e5 |
| SCIP notification number (Romania) | c9aa8ad1-fe1b-434e-b6a5-127a79ee3fde |
| SCIP notification number (Sweden) | 1c8fbdeb-752a-4387-82c1-328bb5d75a2c |
No matching specifications
756-1305/060-002: frequently asked questions
When can 756-1305/060-002 be shipped?
756-1305/060-002 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-1305/060-002 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-1305/060-002 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-1305/060-002, subject to availability and destination.
