Wago 756-1101/060-020
PROFIBUS cable; M12B socket; straight; 5-pole; Length: 2 m
- MPN
- 756-1101/060-020
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Wago 756-1101/060-020?
Short description:
PUR, halogen-free
Suitable for drag chains
Silicon- and PVC-free
High resistance to microbes, hydrolysis, oil, chemicals and UV radiation
High chemical resistance
Specifications
Technical data
| Connection type | M12 socket - free end |
| Pole number | 5 |
| Cable connection direction to mating direction | 0 ° |

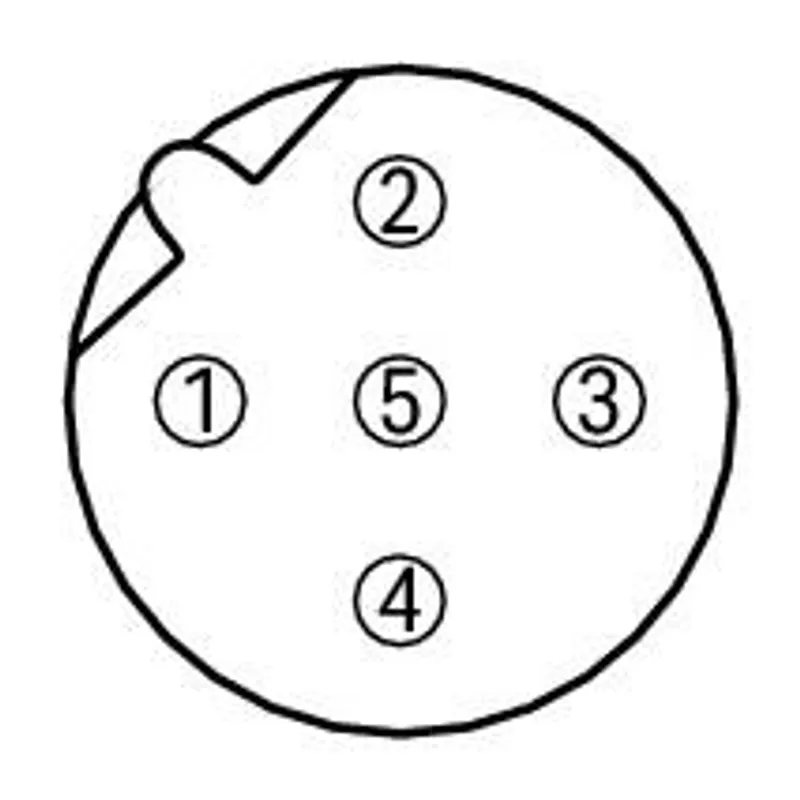

| Connector interface coding (cable/adapter) 1 1 | B-coded |
| Cable length | 2 m |
| Communication/fieldbus | PROFIBUS |
| Operating voltage | ≤ 300 V |
| Operating current | 4 A |
| Rated impulse withstand voltage | 2 kV |
| Insulation resistance | > 2500 MΩ/km |
| Conductor resistance | 55 Ω/km (max.); Loop resistance: 110 Ω/km (max.) |
Mechanical data
| Bending radius | > 10 x cable Ø (flexible use); > 5 x cable Ø in drag chain (fixed installation) |
| Bending cycles | 1 Mio. |
| Drag chain capability | yes |
| Type code | LI02YS-(ST)CB11Y 1X(2X0.34SQMM) |
| Shield | Shielding braid, (approx. 5.90 mm Ø), tinned CU-ETP1, coverage 85 % ± 5 % |
| Conductor configuration | Bare copper wire (19 x 0.15 mm) |
| Conductor insulation | PE (halogen-free); Filler: PP yarn |
| Housing material | TPU/TPU, black (~ RAL 9005) |
| Tightening torque | 1 Nm |
| Weight | 164 g |
| Color | violet |
Environmental requirements
| Ambient (operating) temperature (dynamic) | -25 … +60 °C |
| Ambient (operating) temperature (static) | -50 … +80 °C |
| Protection type | IP67 |
| Pollution degree | 3/2 per IEC 60664-1 |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454521509 |
| Customs tariff number | 85444290900 |
| End of Sale | 2024-05-01 |
| End of Production | 2024-05-15 |
| End of Delivery | 2024-06-01 |
| End of Service and Repair | 2025-06-01 |
| Support period for security updates | 2029-07-01 |
Product Classification
| UNSPSC | 26121634 |
| eCl@ss 10.0 | 27-06-18-01 |
| eCl@ss 9.0 | 27-06-18-01 |
| ETIM 9.0 | EC002599 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
No matching specifications
756-1101/060-020: frequently asked questions
When can 756-1101/060-020 be shipped?
756-1101/060-020 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 756-1101/060-020 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 756-1101/060-020 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 756-1101/060-020, subject to availability and destination.
