Wago 753-1652
RS-232/485 Serial Interface
- MPN
- 753-1652
- Category
- I/O Systems
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Wago 753-1652?
This serial interface module connects RS-485, RS-422 or RS-232 interface devices (optional) to the WAGO I/O System 750/753. It also allows gateways to be implemented between the fieldbuses supported by the WAGO I/O System 750/753 and a serial interface. No higher protocol level is required by the module. Communication to the associated fieldbus master is completely transparent, which provides a wide range of applications for the serial interface module. If required, communication protocols can be configured via fieldbus master.
The 8192-byte input buffer provides high data baud rates. At lower baud rates, the data received in lower priority tasks is evaluated without data loss.
The 2048-byte output buffer provides fast transmission of larger data strings.
The module can be freely configured via WAGO-I/O- CHECK, e! COCKPIT or GSD files. Both flexible baud rate and data width selection perfectly adapt to the application. It is not suitable for applications under CODESYS 2.3.
The module has a switchable terminating resistor for impedance matching.
In addition, the module provides a two-stage switchable bias network for level adjustment of the receiver inputs. This eliminates the need for an external terminating resistor and, in many cases, for an external bias network.
Specifications
Notes
| Note | Pluggable connectors and coding fingers (753 Series) are not included. |
Technical data
| Signal type | RS-232, RS-422 / RS-485 |
| Transmission rate | 150 Bd … 250 kBd |
| Bit transfer | RS-485/-422: ISO 8482 / DIN 66259 - 4; RS-232: EIA/TIA-232-F |
| Transmission channels | 1 TxD / 1 RxD, full-duplex, half-duplex |
| Line length | RS-485/-422: approx. 1000 m (max.) twisted pair, RS-232: 40 m (max.) |
| Level adjustment | Bias network 1 approx. 620 Ω (switchable); bias network 2 approx. 1210 Ω (switchable) |
| Data width | Serial operating modes: 1 x 46/1 x 22/1 x 6-byte input/output (parameterizable), 2-byte control/status |
| Terminating resistor | Approx. 120 Ohm (switchable) |
| Parity | None/Odd/Even/Mark/Space |
| Number of data bits | 7 … 8, adjustable |
| Number of stop bits | 1/2, adjustable |
| Buffer | 8192-byte input / 2048-byte output |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 120 mA |
| Current consumption (note) | 120 mA at RS-232, Xon/Xoff 115.2 kBaud; 90 mA at RS-485 full-duplex 115.2 kBaud |
| Supply voltage (field) | 24 VDC; via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Isolation | 500 V system/field |
| Indicators | LED (A-H) green/yellow/red: function, TxD (send), RxD (receive), buffer status, 3 x operating mode, data flow control |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity (power jumper contacts) | 10 A |
Connection data

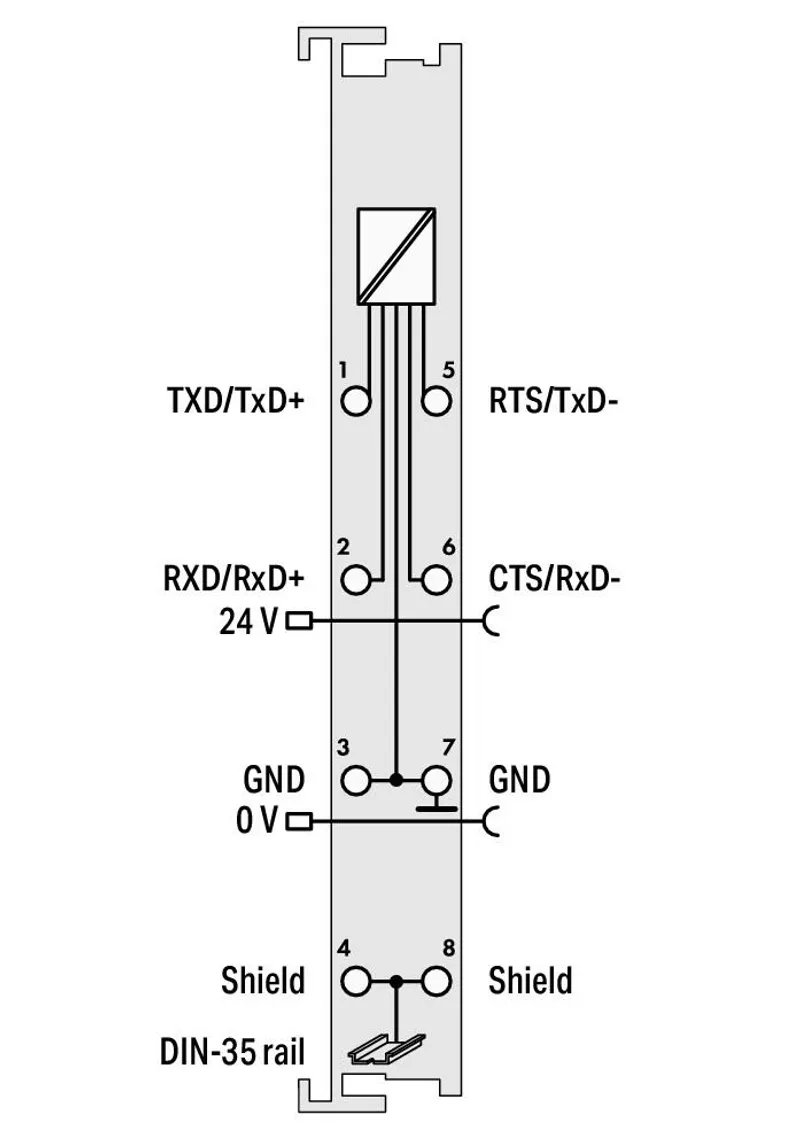

| Connection technology: I/O | 8 x CAGE CLAMP® |
| Connectable conductor materials | Copper |
| Connection type | Inputs/outputs |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Physical data
| Width | 12 mm / 0.472 inches |
| Height | 100 mm / 3.937 inches |
| Depth | 69 mm / 2.717 inches |
| Depth from upper-edge of DIN-rail | 61.8 mm / 2.386 inches |
Mechanical data
| Mounting type | DIN-35 rail |
| Pluggable connector | pluggable |
Material data
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.62 MJ |
| Weight | 45 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-1, -2; marine applications |
| EMC emission of interference | per EN 61000-6-3, -4; marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4066966371291 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32101517 |
| ETIM 9.0 | EC001604 |
| ETIM 10.0 | EC001604 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(c)-I |
| SCIP notification number (Austria) | 882a6563-8982-4ea1-ab92-ba7757ffc872 |
| SCIP notification number (Belgium) | 9b02d0fa-fe9b-4728-a38e-0e6d50d04def |
| SCIP notification number (Bulgaria) | be131613-e79a-4a44-98b3-b9fe70d6ecdc |
| SCIP notification number (Czech Republic) | 99db4c6d-bdd4-4ddf-a469-66640fcd5f46 |
| SCIP notification number (Denmark) | 629da6da-a5d8-4445-9fc2-8d379904db61 |
| SCIP notification number (Finland) | 4fe9700b-d684-4c1c-892c-375247caef79 |
| SCIP notification number (France) | f6995935-d325-4ea2-805e-bce356b82a62 |
| SCIP notification number (Germany) | f6d1412b-a6ff-4b63-8a62-5d9abd043253 |
| SCIP notification number (Hungary) | 3feb767b-8b53-4779-a4a8-2dbe14add2f4 |
| SCIP notification number (Italy) | 2359fee9-e2eb-4eb5-b56c-1ee2a46c9cc8 |
| SCIP notification number (Netherlands) | eb9e95e7-e308-4519-a079-759ceb120133 |
| SCIP notification number (Poland) | 126f323d-1bb6-451a-9f9e-cd4b7b6484e2 |
| SCIP notification number (Romania) | 7a138254-ce7a-4717-89a0-ffca9b517dfb |
| SCIP notification number (Sweden) | de2c8b9b-bf0d-40c6-ab94-a8ce59678268 |
